Overview

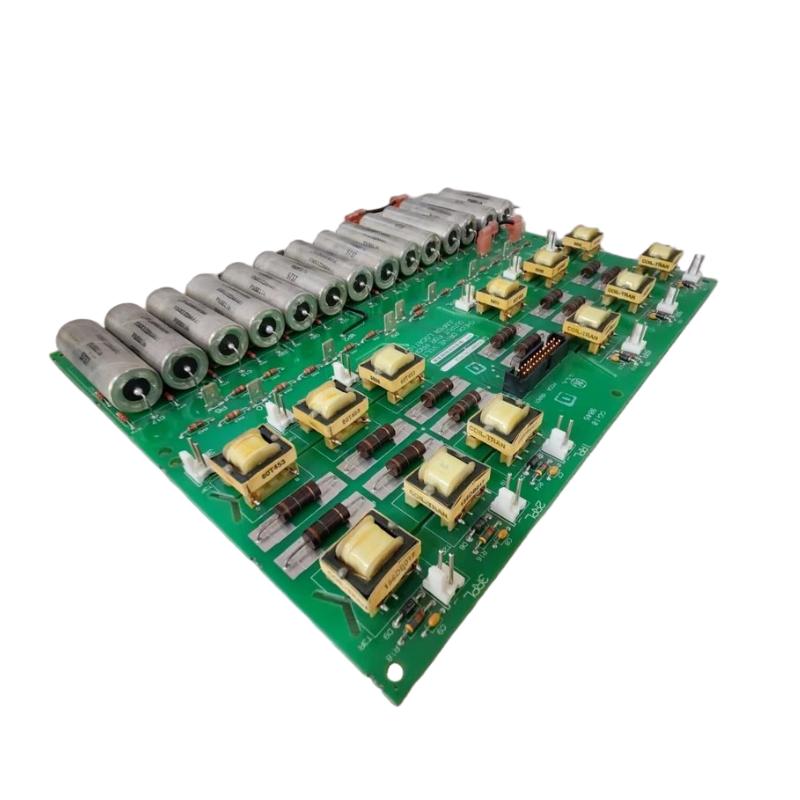

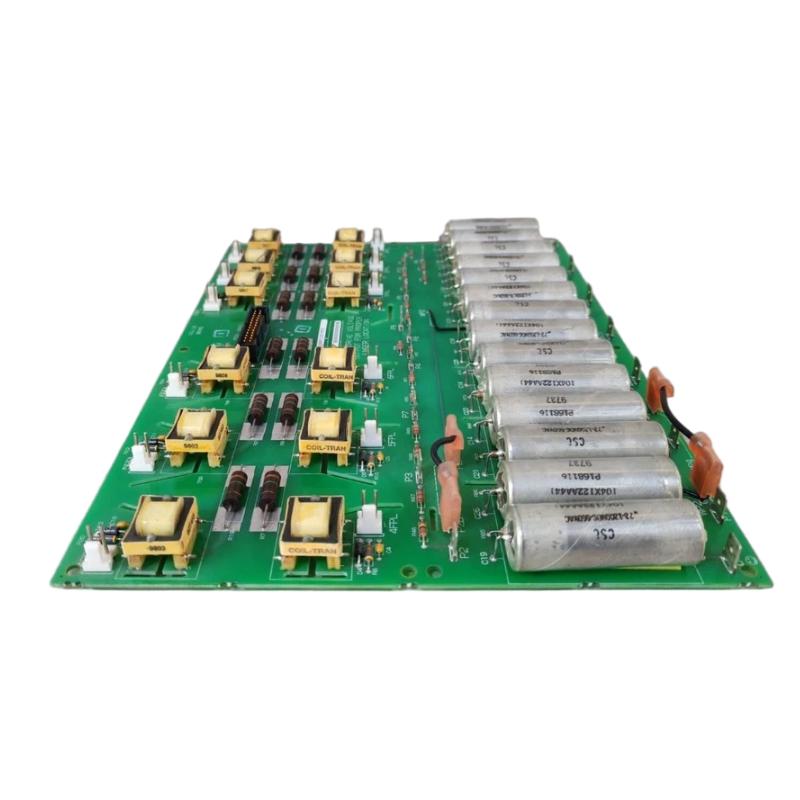

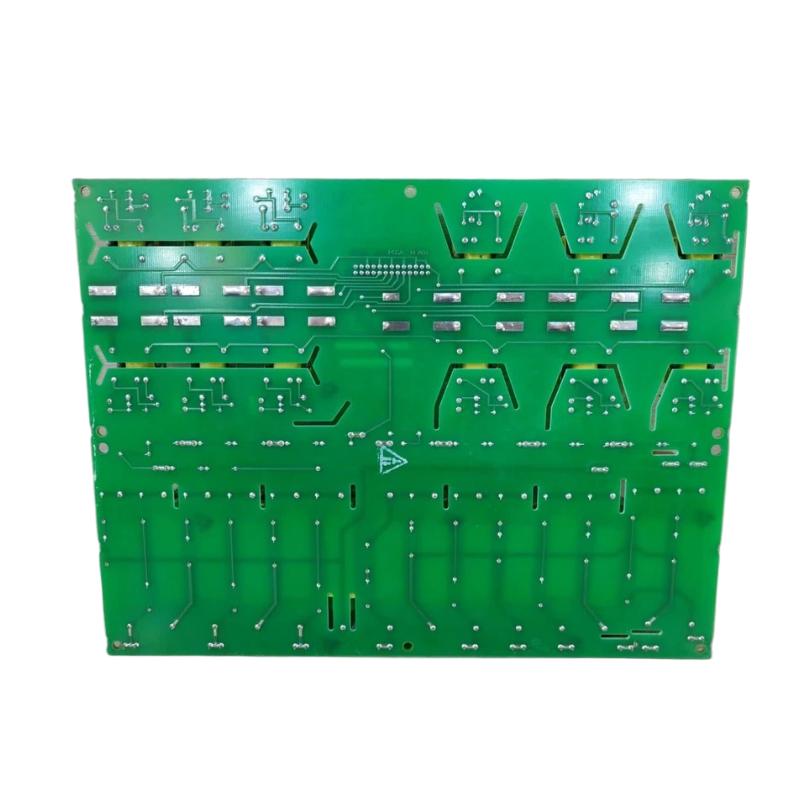

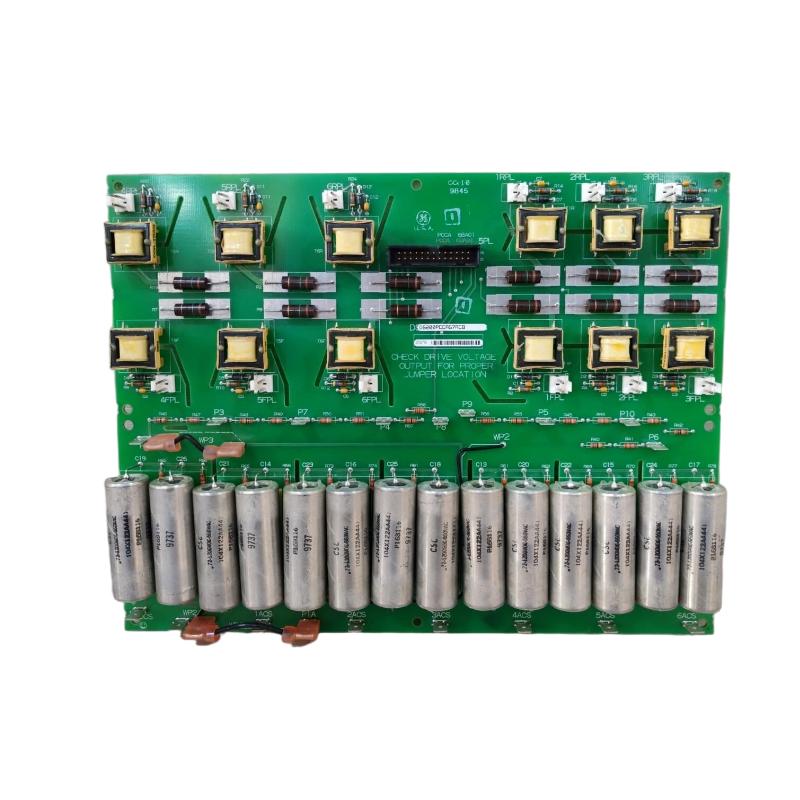

The GE DS200PCCAG7ACB is a power connection board designed for GE Mark V and associated GE drive systems. It provides the interface for power distribution, signal routing, and protective circuitry between the power module and the control system.
General Information
Part Number: DS200PCCAG7ACB
Manufacturer: GE (General Electric)
Series: Mark V / Drive Systems
Type: Power Connection Board
Mounting: Chassis or panel-mounted inside the drive enclosure
Technology: Power distribution, control signal interfacing, protective circuits
Country of Origin: United States
Power Specifications
Input Voltage: Supports DC power bus connections
Power Handling: High-current power distribution capability
Protection: Over-current paths, surge suppression, isolation circuits
Indicators: Status and fault LEDs (model-dependent)
Communication & Interface
Interface Type: Power bus and control-signal interface
Connectivity: Connects power module, gate drivers, and control boards
Diagnostics: Basic fault monitoring and status reporting
Operator Interface: LED indication (if equipped)
Reset: Hardware reset through system power cycle
I/O & Channels
Relay Channels: None
External Load Support: High-current terminal connection support
Role: Distributes power and routes drive-related signals
Environmental
Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Industrial cabinet installation
Dimensions & Weight
Dimensions (L × W × H): 280 × 190 × 40 mm
Weight: ~ 1.2 kg
