Overview

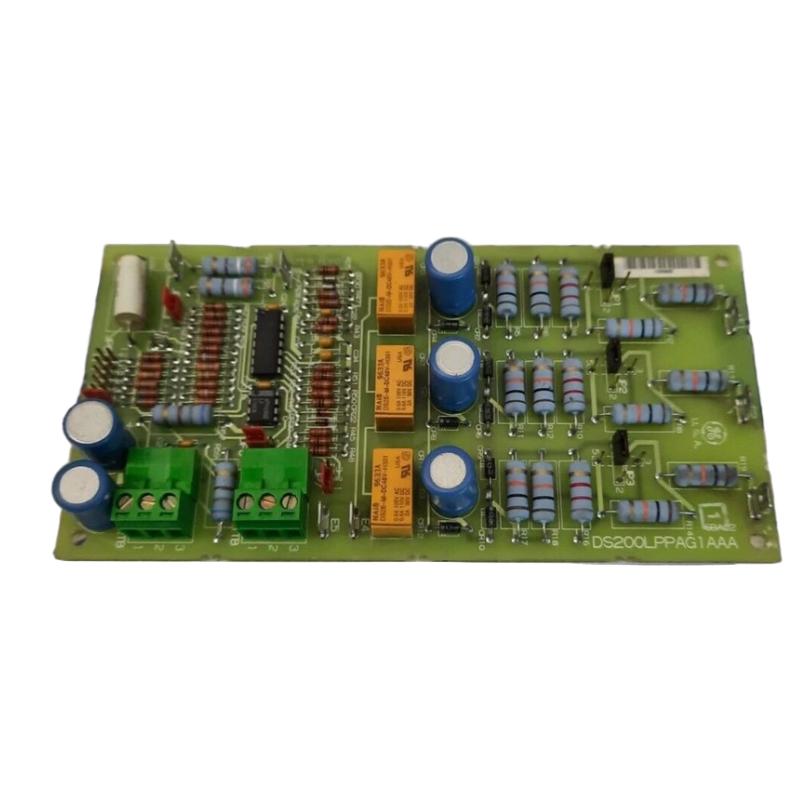

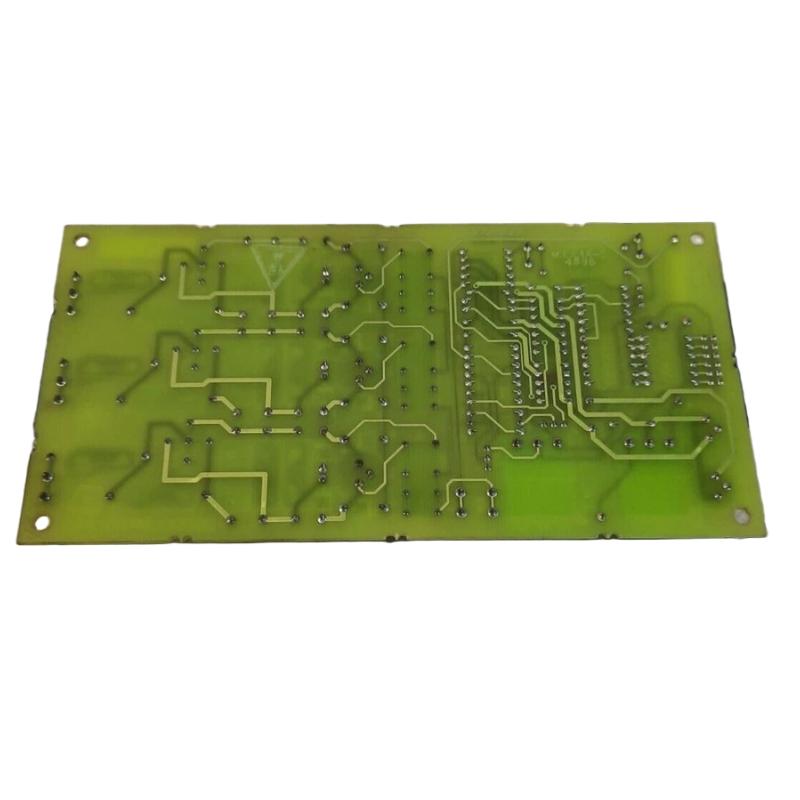

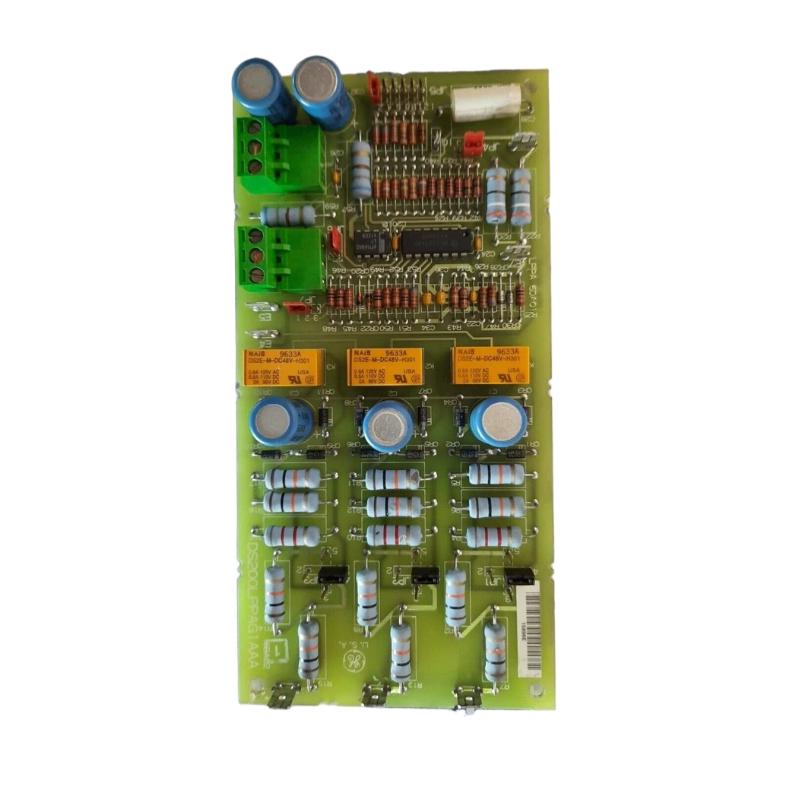

The GE DS200LPPAG1AAA is a Line Protection Card used in GE Mark V and GE industrial drive systems. It provides protection, monitoring, and conditioning for line-related power signals, ensuring stable and safe system operation.
General Information
Part Number: DS200LPPAG1AAA
Manufacturer: GE (General Electric)
Series: Mark V / Drive Control Systems
Type: Line Protection Card
Mounting: Installed inside the drive chassis on dedicated card rails
Technology: Line signal protection, filtering, conditioning, and monitoring
Country of Origin: United States
Power Specifications
Supply Voltage: Provided through the drive backplane
Power Consumption: Low-power electronic board
Protection: Over-voltage protection, filtering circuits, transient suppression
Indicators: LED indicators for status and fault signaling
Communication & Interface
Interface Type: Internal drive-system signal interface
Connectivity: Connects to main control boards and power sections
Diagnostics: Supports system-level fault monitoring
Operator Interface: LED indication (if equipped)
Reset Features: Reset performed through power cycle
I/O & Channels
Relay Channels: None
Measurement Inputs: Line signal inputs for monitoring and protection
External Load Support: Not applicable
Functional Role: Conditions, protects, and reports line voltage/current signals
Environmental
Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for industrial cabinet environments
Dimensions & Weight
Dimensions (L × W × H): 270 × 190 × 40 mm
Weight: ~ 0.9 kg
