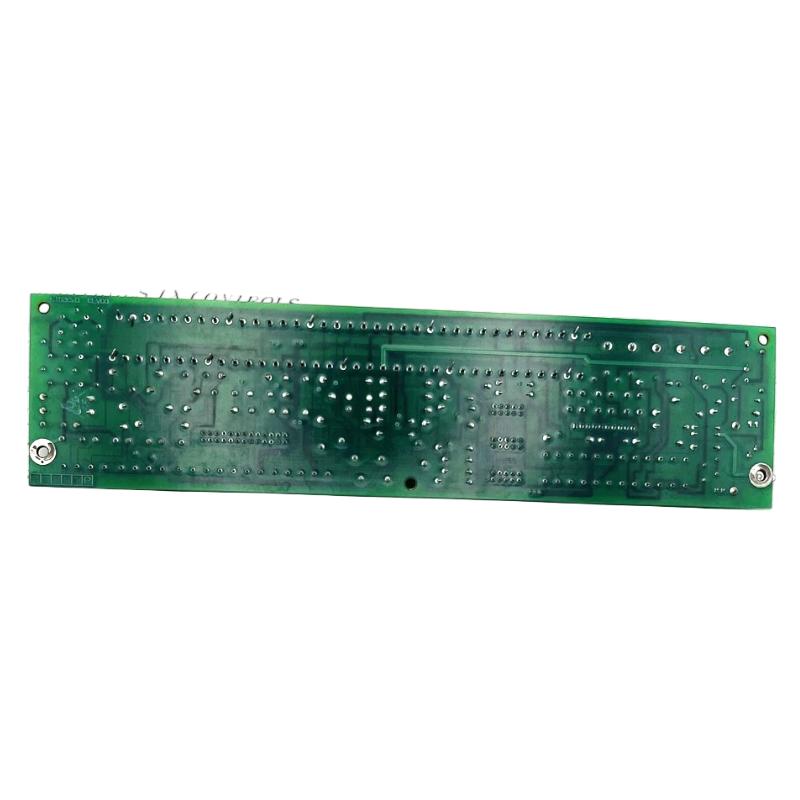

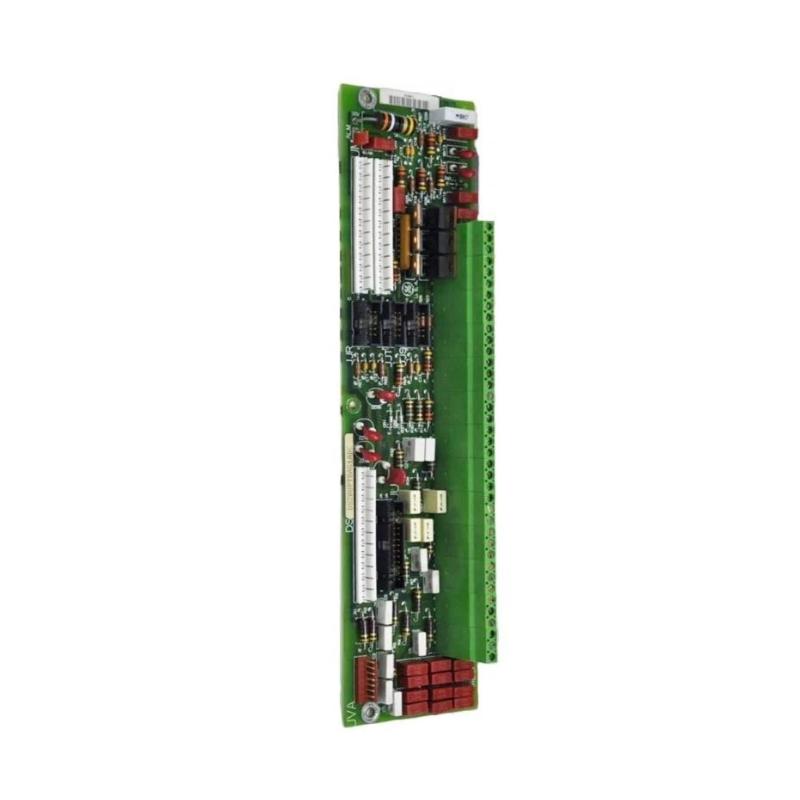

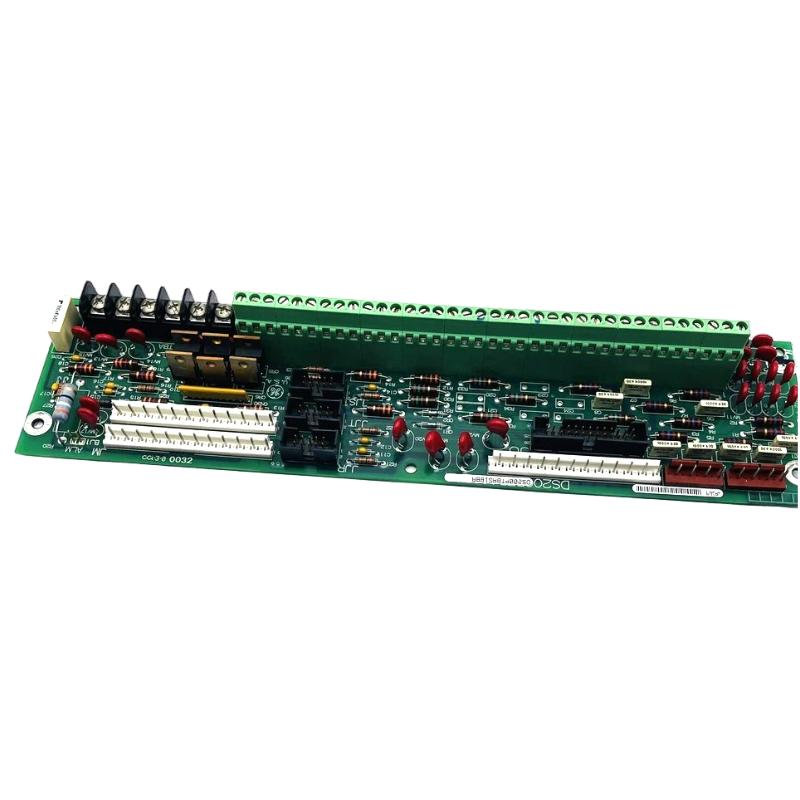

GE DS200PTBAG1AEC | Termination Board Brand new and original

Overview

The GE DS200PTBAG1AEC is a termination board designed for GE Mark V control systems. It provides organized connection points for field wiring, ensuring stable signal routing between sensors, actuators, and the controller. The board is built for durability, supporting high-reliability industrial automation and turbine control applications.

General Information

Brand: GE (General Electric)
Country of Origin: USA
Product Type: Termination Board
System: GE Mark V Series
Function: Routes, conditions, and organizes field I/O wiring
Mounting: Chassis or panel installation inside control cabinets
Application Areas: Turbine control, generator management, industrial automation systems

Power Specifications

Input Power: Not power-consuming; passive termination board
Signal Support: Analog, digital, relay signal termination
Protection: Built-in noise filtering and transient suppression for stable signal performance

Communication & Interface

Signal Terminals: Multiple terminal blocks for field device wiring
System Interface: Mates with Mark V controller modules through ribbon cables
Supported Signal Types:
Analog input/output
Digital input/output
Relay and contact monitoring
Diagnostic Features: Status identification through labeled terminals
Connectivity: Secure screw-type terminal blocks for stable connections

Environmental

Operating Temperature: −20°C to +70°C
Storage Temperature: −40°C to +85°C
Humidity: Up to 95% RH, non-condensing
Build Quality: Industrial-grade components designed for high vibration and continuous operation

Dimensions & Weight

Dimensions: 330  × 200  × 40 mm
Weight: Approximately 0.8 kg

Authentic brand-new products guaranteed, ample stock, customer service always online for rapid quotes.
