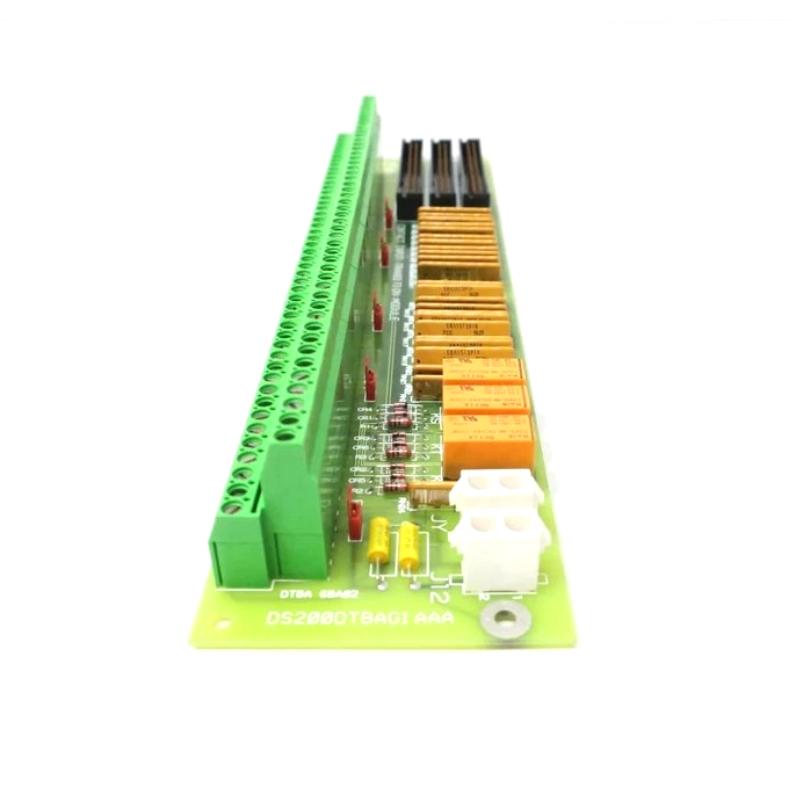

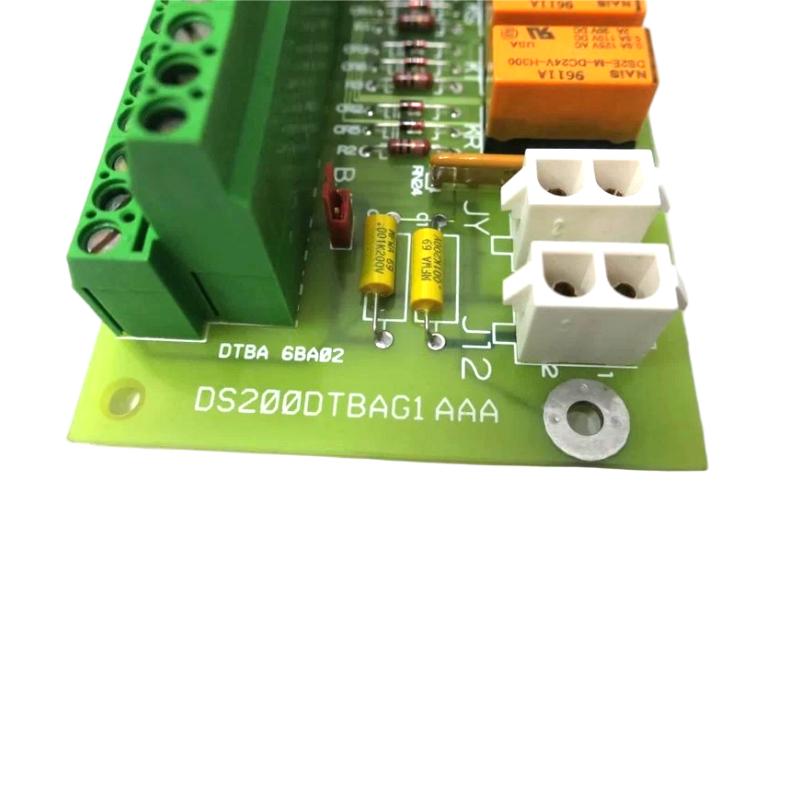

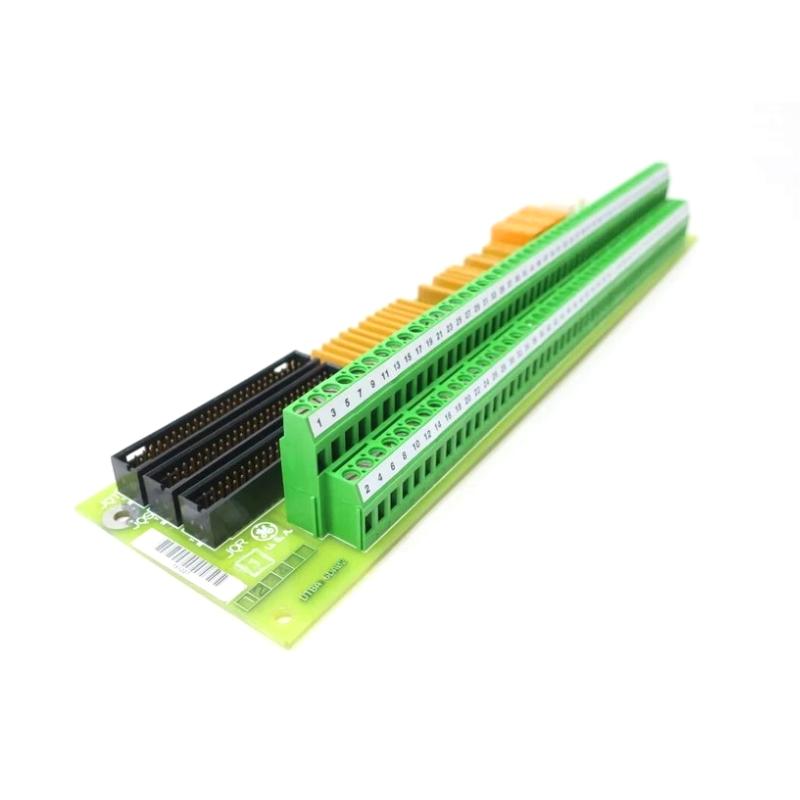

GE DS200DTBAG1AAA | Contact Input Transition Module Rave reviews

Overview

The GE DS200DTBAG1AAA is a contact input transition module used in GE Mark V turbine control systems. It serves as an interface that conditions, isolates, and organizes contact input signals from field devices before they enter the control processor. The module enhances noise immunity and ensures reliable detection of discrete signals in demanding industrial environments.

General Information

Brand: GE (General Electric)
Country of Origin: USA
Model Type: Contact Input Transition Module
System Platform: GE Mark V Series
Function: Accepts, filters, and transitions field contact signals to controller logic levels
Installation: Mounts inside Mark V control panels
Typical Uses: Gas/steam turbine control, power plant automation, industrial protection systems

Power Specifications

Power Requirement: Passive board, does not consume system power
Signal Handling: Supports multiple dry-contact or wetted-contact inputs
Input Conditioning: Noise filtering, signal isolation, transient suppression

Communication & Interface

Field Wiring Interface: Terminal blocks for external contact inputs
Controller Interface: Ribbon cable connectors to Mark V control modules
Supported Input Type: Discrete / contact signals
Wiring Features: Clearly labeled inputs for simplified maintenance and troubleshooting
Diagnostic Aids: Structured terminal layout assists in signal identification

Environmental

Operating Temperature: −20°C to +70°C
Storage Temperature: −40°C to +85°C
Relative Humidity: Up to 95% non-condensing
Construction: Industrial-grade PCB designed for high vibration and long service life

Dimensions & Weight

Dimensions (L × W × H): 82.6 x 41.8 mm
Weight: ~ 0.907 kg
