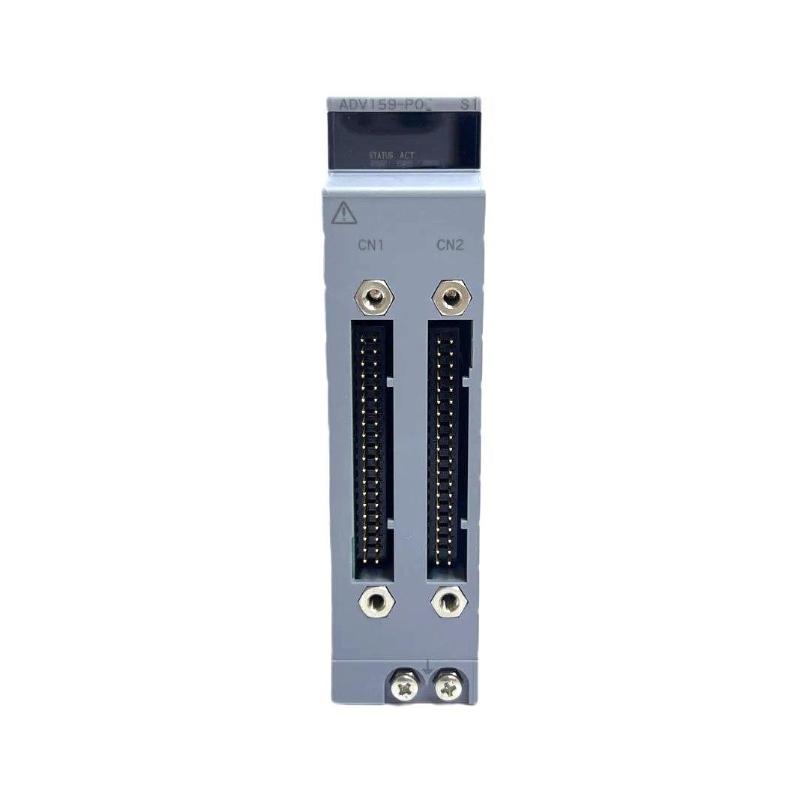

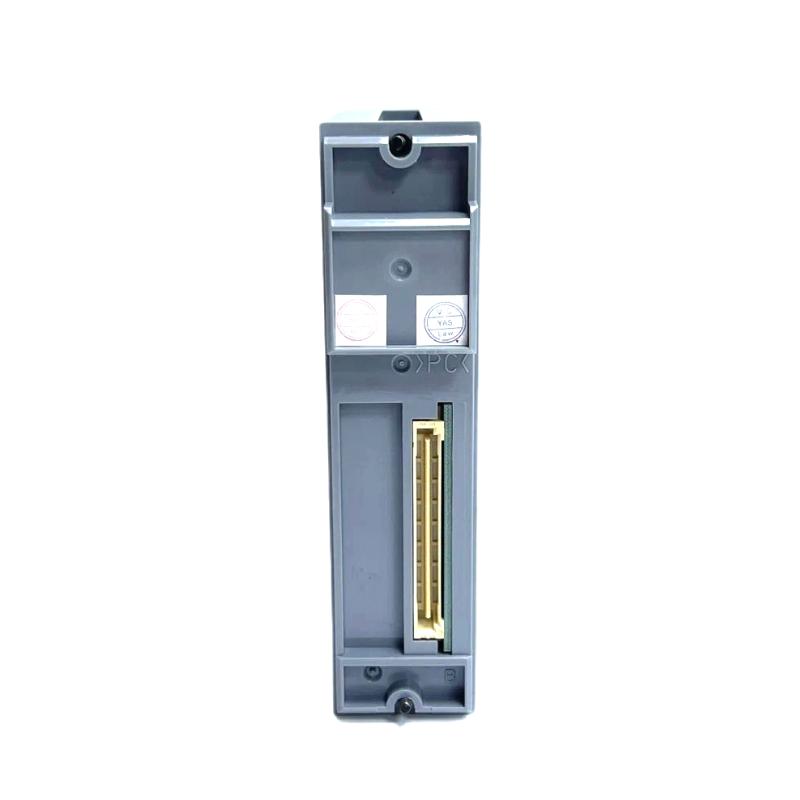

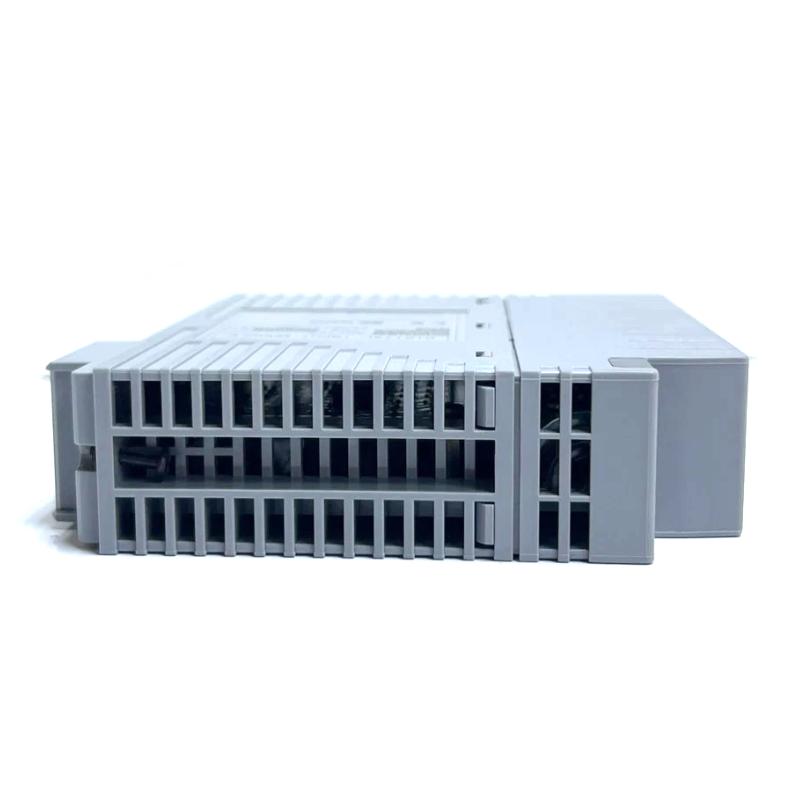

Overview
The Yokogawa ADV159-P01 S1 is a digital output module designed for dependable discrete control within Yokogawa DCS systems. It delivers stable output performance for driving relays, solenoids, indicators, and other field devices in process automation environments.
General Information
Part Number: ADV159-P01 S1
Brand / Country of Origin: Yokogawa / Japan
Manufacturer: Yokogawa Electric Corporation
Series: ADV Series
Type: Digital Output Module
Mounting: Rack-mounted module installed on a system I/O base
Function: Provides digital output signals for various plant control operations
Power Specifications
Supply Voltage: Provided through the system backplane
Power Consumption: Low and optimized for continuous-duty operation
Input Source: Internal Yokogawa I/O bus
Protection: Output channel isolation and overcurrent safeguards
Indicators: LED indicators for per-channel status and module health
Communication & Interface
Interface Type: Yokogawa proprietary system bus
Output Type: Discrete digital outputs
Diagnostics: Module self-check, channel status feedback, fault detection
Operator Interface: LED status indicators located on the front panel
Environmental
Operating Temperature: Suitable for standard industrial control conditions
Humidity: Up to 95% RH, non-condensing
Installation Environment: Mounted inside protected control cabinets
Protection Level: Standard industrial electronic module protection
Dimensions & Weight
Dimensions (L × W × H): 127.2 × 130 × 32.8 mm
Weight: ~0.4 kg
