Overview

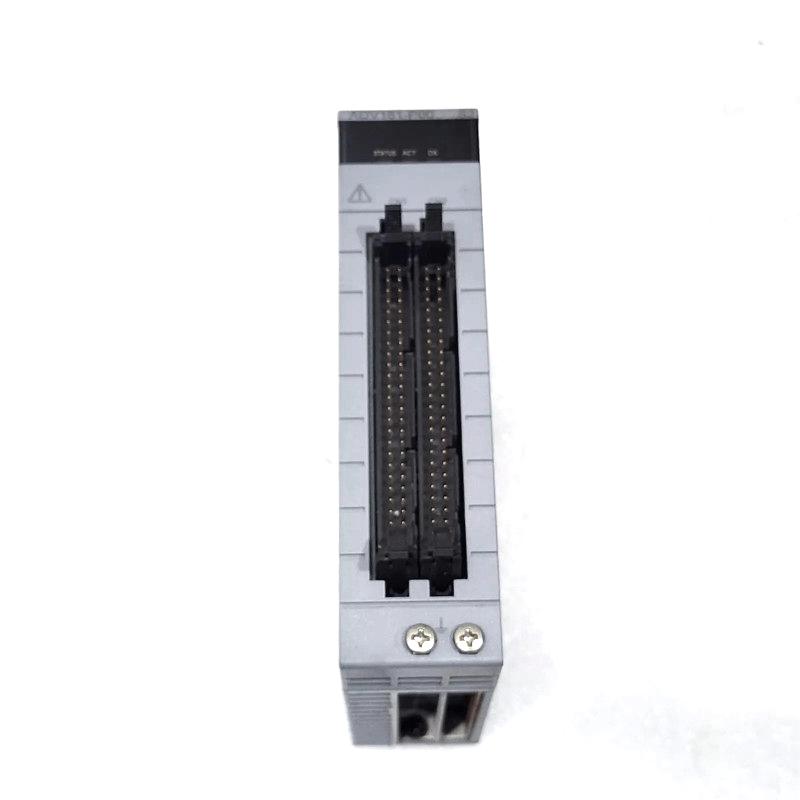

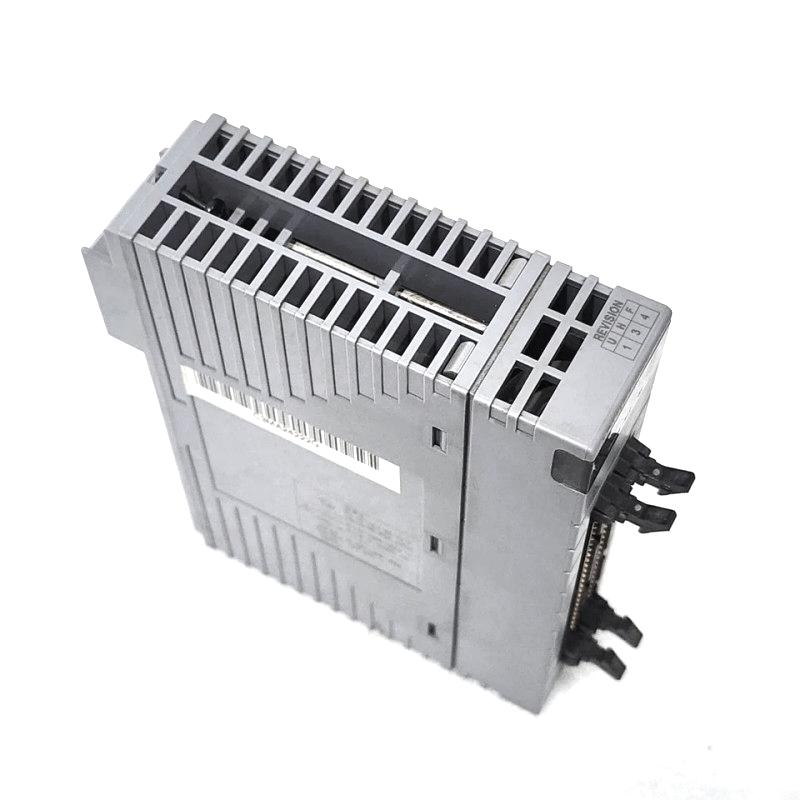

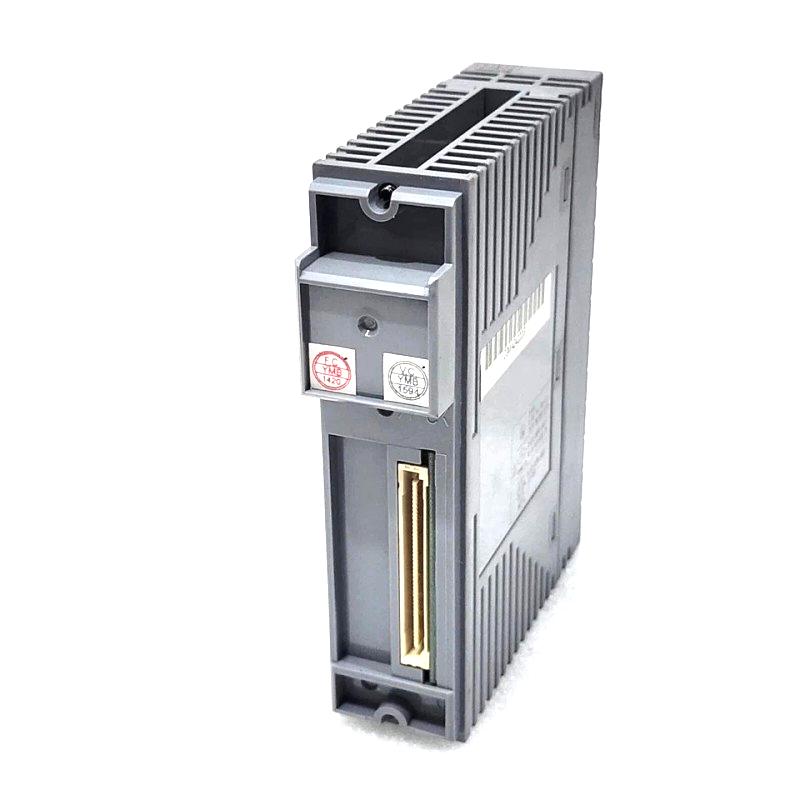

The Yokogawa ADV161-P00 is an analog input module designed for precise signal acquisition within Yokogawa control systems. It supports high-accuracy measurement of process signals such as temperature, pressure, or flow, ensuring stable and reliable plant operation.
General Information
Part Number: ADV161-P00
Brand / Country of Origin: Yokogawa / Japan
Manufacturer: Yokogawa Electric Corporation
Series: ADV Series
Type: Analog Input Module
Mounting: Rack-mounted installation on an I/O base
Function: Captures and conditions analog process signals for DCS processing
Power Specifications
Supply Voltage: Delivered via system backplane
Power Consumption: Designed for low power draw during continuous operation
Input Source: Yokogawa internal I/O bus
Protection: Isolation between channels and system side to reduce interference
Indicators: Front-panel LEDs for status and operational monitoring
Communication & Interface
Interface Type: Yokogawa proprietary control bus
Input Type: Analog signal inputs (varies by system configuration)
Diagnostics: Channel status monitoring, error detection, internal module diagnostics
Operator Interface: LED indicators for operational and fault conditions
Environmental
Operating Temperature: Suitable for standard industrial automation ranges
Humidity: Up to 95% RH, non-condensing
Installation Environment: Control cabinet or protected system enclosure
Protection Level: Industrial electronic module protection rating
Dimensions & Weight
Dimensions (L × W × H): 130 × 119.9 × 32.8 mm
Weight: ~0.3 kg
