Overview

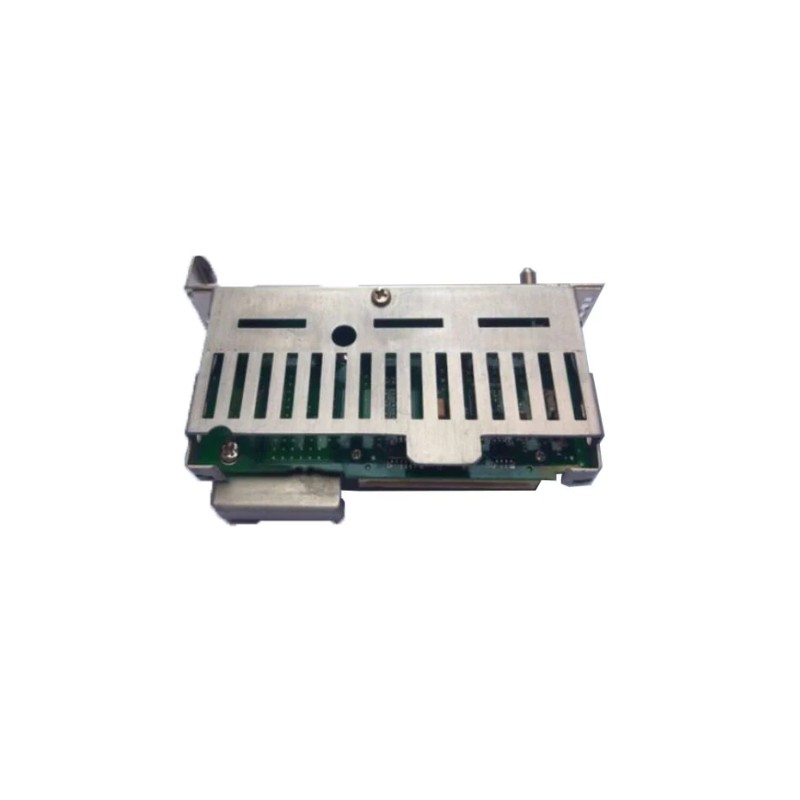

The Yokogawa AIP504-10 is an analog input processing module used in Yokogawa CENTUM DCS systems. It receives analog signals from field instruments and converts them into data that can be processed by the DCS controller. The module supports high-accuracy signal conversion, fast data acquisition, and built-in diagnostics to ensure reliable system operation.
General Information
Part Number: AIP504-10
Manufacturer: Yokogawa
Series: AIP (Analog Input Processing)
Type: Analog Input Module / Interface Module
Mounting: Rack or card installation in DCS control chassis
Technology: Signal conversion, channel isolation, fault detection
Power Specifications
Supply Voltage: 24 V DC from backplane
Power Consumption: ≤ 6 W
Input: Powered via backplane
Protection: Overvoltage and reverse-polarity protection
Indicators: LEDs for power, channel status, and fault detection
Communication & Interface
Field Signal Input: Supports 4–20 mA, 0–10 V, and thermocouple signals depending on module configuration
Controller Interface: Connects analog signals to the DCS control system
Diagnostics: Channel health monitoring, signal failure detection, status reporting
Operator Interface: LEDs for power, communication, and fault indication
Reset Features: Supports soft reset via DCS system software
I/O & Channels
Analog Input Channels: Up to 8 channels per module
Relay / Output Channels: None, used for signal acquisition only
External Load Support: Not applicable
Environmental
Operating Temperature: 0 to 55 °C
Humidity: 10–90% RH, non-condensing
Protection Rating: Standard industrial cabinet, IP20 equivalent
Dimensions & Weight
Dimensions (L × W × H): 160 × 40 × 120 mm
Weight: ~0.45 kg
