Overview

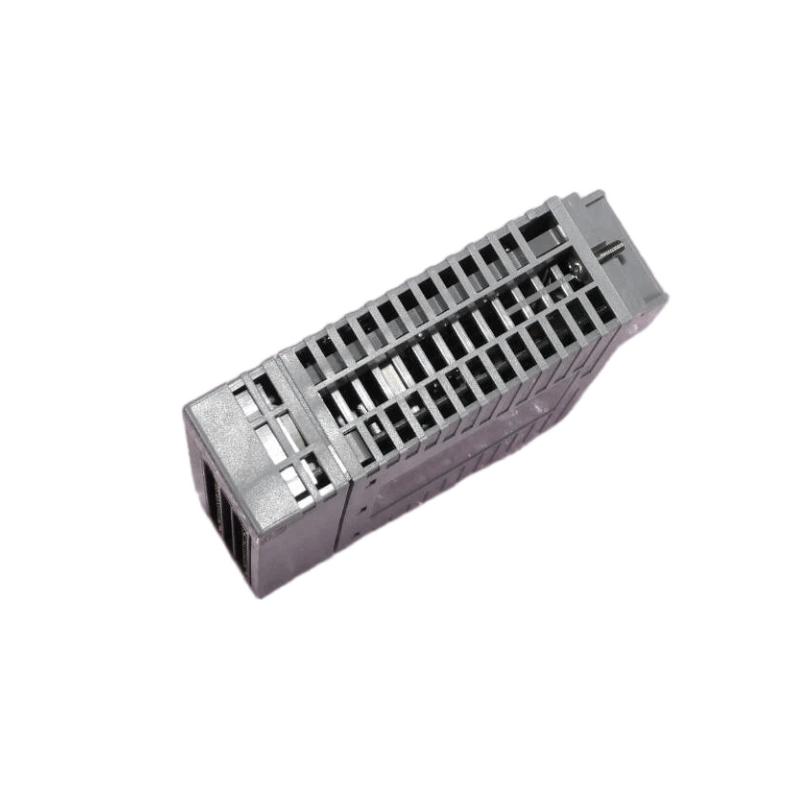

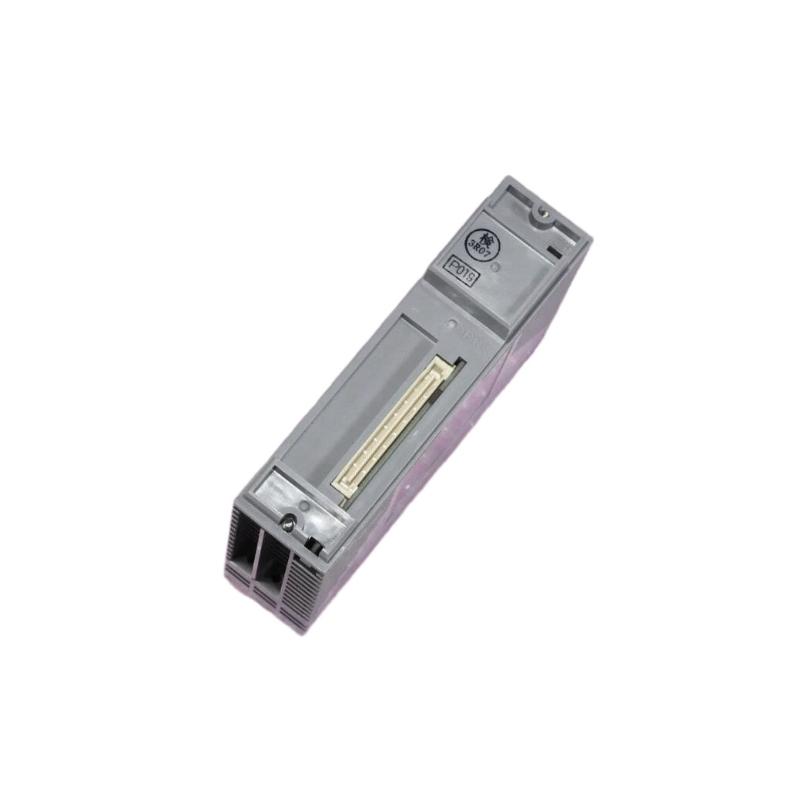

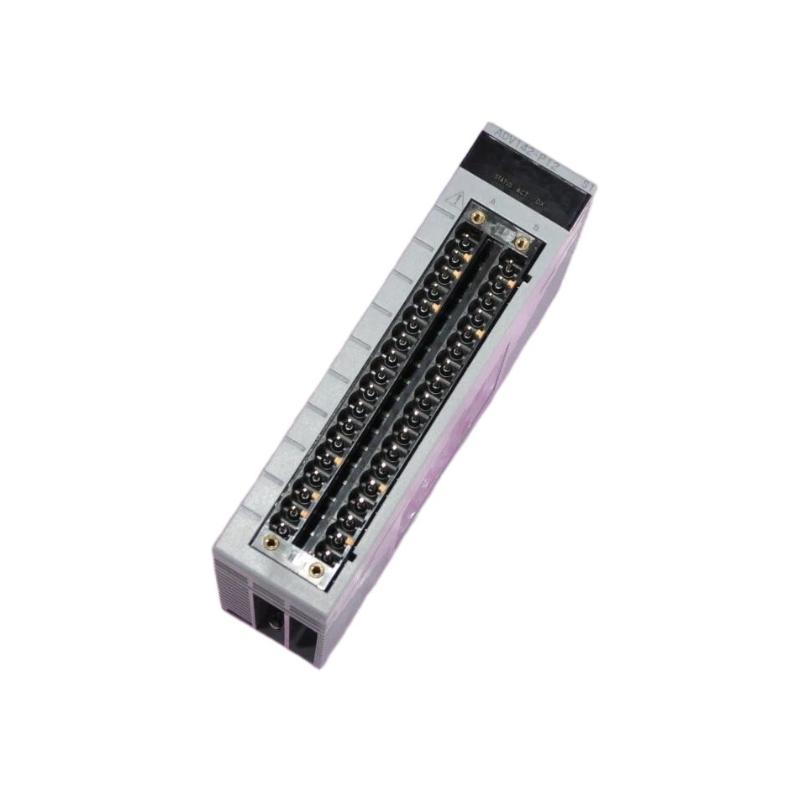

The Yokogawa ADV142-S03 is a signal conditioner module used in Yokogawa’s DCS control systems. It converts and conditions analog signals for accurate monitoring and control in industrial automation environments, ensuring reliable transmission and precise measurement performance.
General Information
Part Number: ADV142-S03
Brand / Country of Origin: Yokogawa / Japan
Series: ADV Series
Type: Signal Conditioner Module
Mounting: Mounted in control or I/O card rack
Technology: Signal isolation, conversion, and conditioning
Power Specifications
Supply Voltage: Typically powered through system backplane
Power Consumption: Optimized for low-power applications
Input: Supports analog signal inputs
Protection: Built-in signal isolation and fault detection
Indicators: Status LEDs for diagnostics and operational checks
Communication & Interface
Input Types: Designed for analog signal inputs
Output: Conditioned and isolated signal for controller use
Configuration: Simple setup using system tools
Diagnostics: Continuous monitoring for signal status and health
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 90% RH, non-condensing
Protection Rating: Designed for industrial control environments
Dimensions & Weight
Dimensions (L × W × H): 107.5 × 130 × 32.8 mm
Weight: ~ 0.3 kg
