Overview

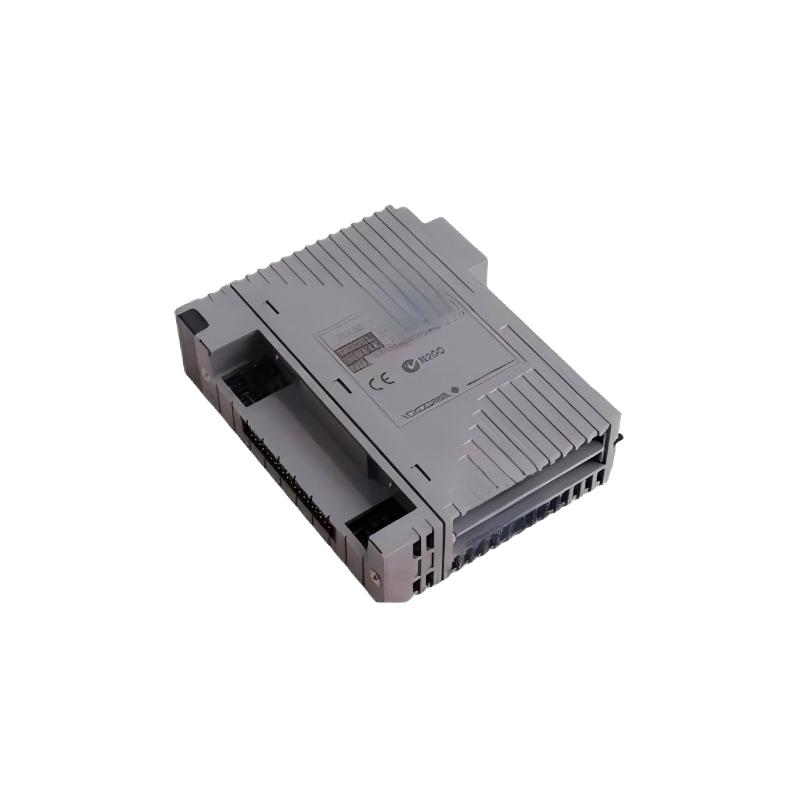

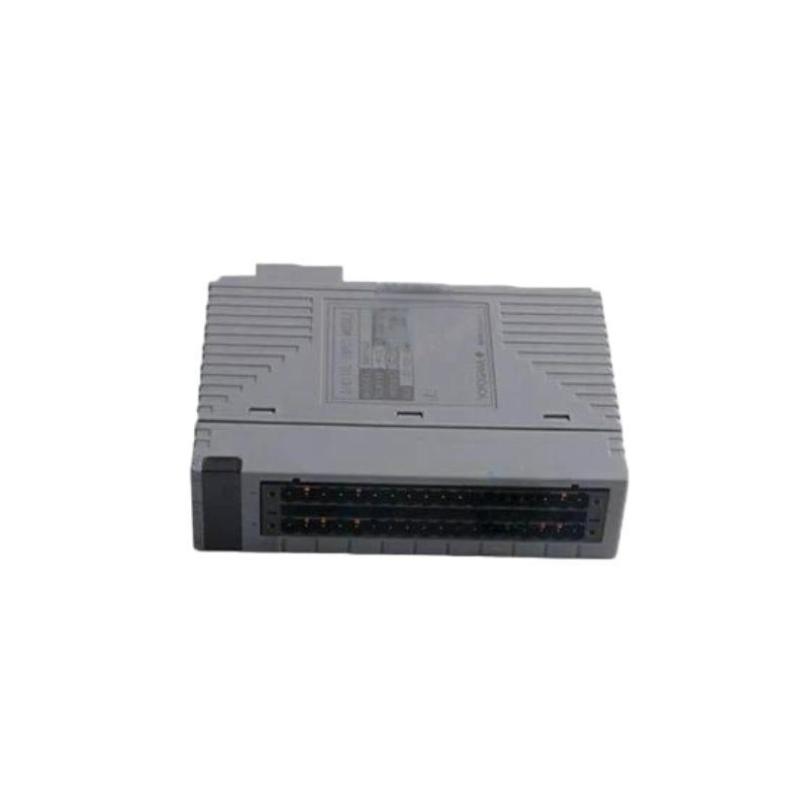

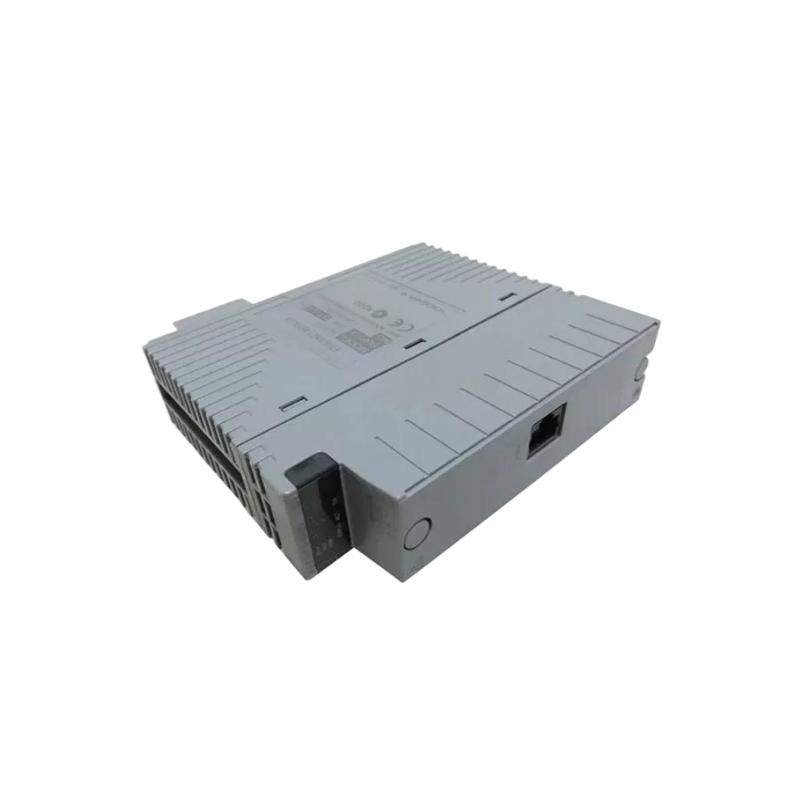

The Yokogawa ADV144-S13 is an analog input module designed for use in Yokogawa’s distributed control systems. It provides precise and stable measurement of multiple analog signals, making it suitable for monitoring critical process variables in industrial automation and control applications.
General Information
Part Number: ADV144-S13
Brand / Country of Origin: Yokogawa / Japan
Series: ADV Series
Type: Analog Input Module
Mounting: Installed in a dedicated I/O card rack
Technology: High-resolution analog signal acquisition and isolation
Power Specifications
Supply Voltage: Powered via system backplane
Power Consumption: Optimized for continuous operation
Input: Supports multiple analog channels for signal acquisition
Protection: Overvoltage protection and signal isolation
Indicators: LEDs for status indication and diagnostics
Communication & Interface
Input Types: Compatible with standard analog sensors and transmitters
Output: Digitized process values to the control system
Configuration: Set up via system configuration tools
Diagnostics: Continuous signal monitoring and self-diagnostics
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 90% RH, non-condensing
Protection Rating: Suitable for industrial control panel environments
Dimensions & Weight
Dimensions (L × W × H): 107.5 × 130 × 32.8 mm
Weight: ~ 0.3 kg
