Overview

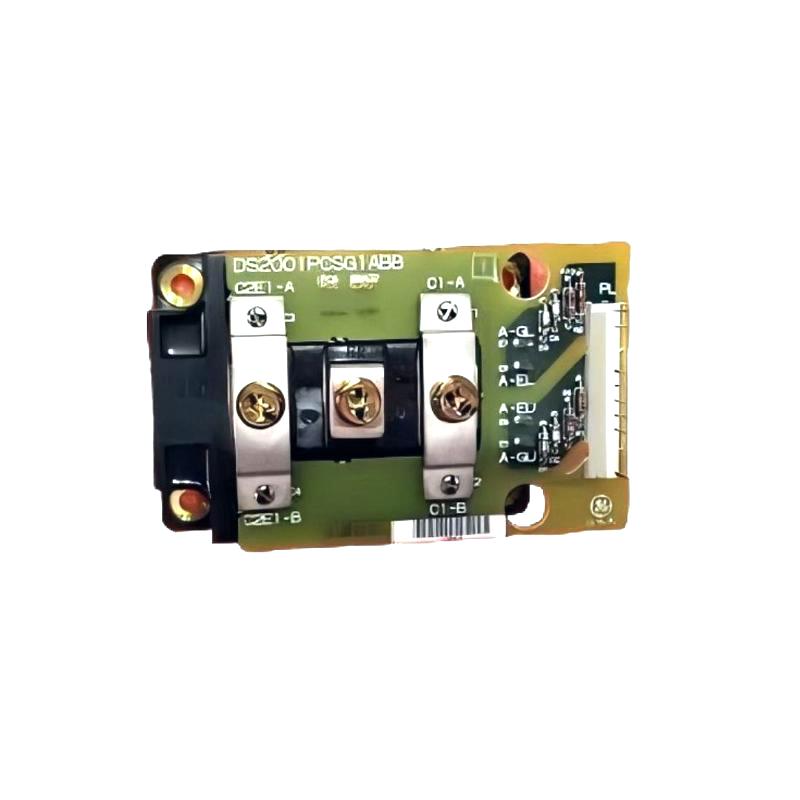

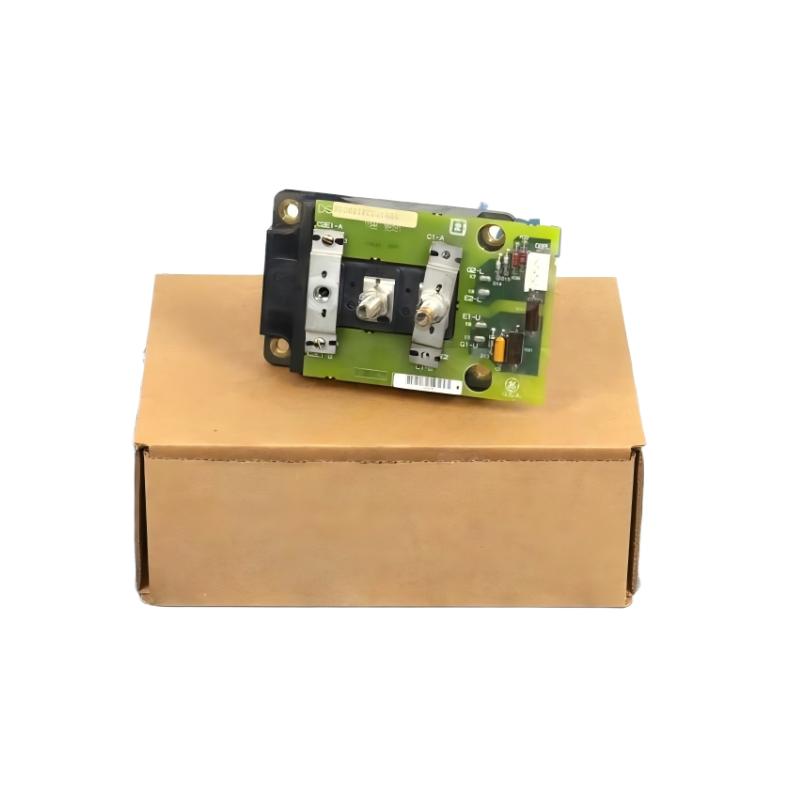

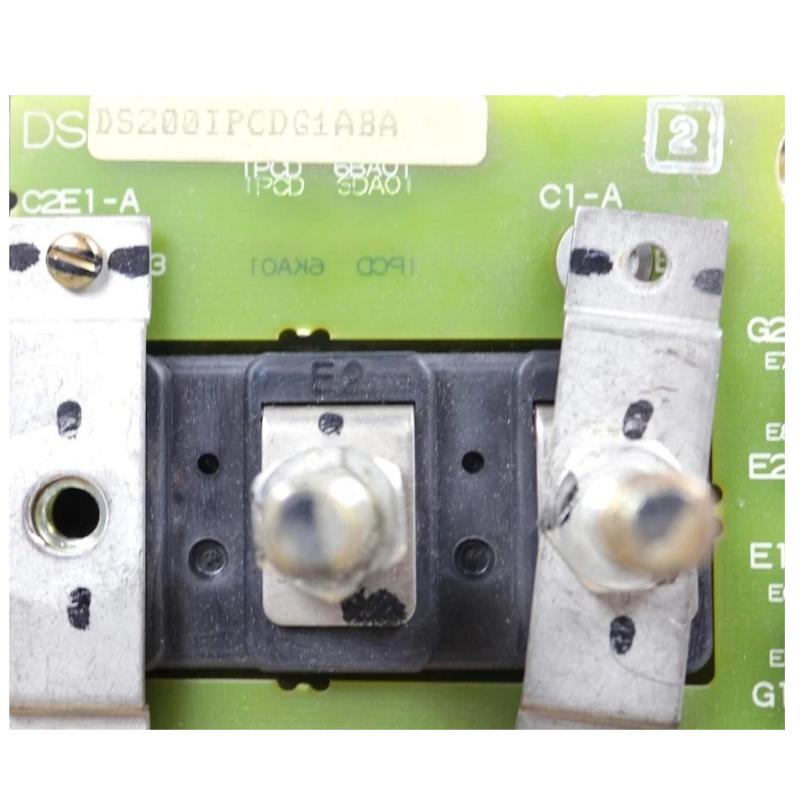

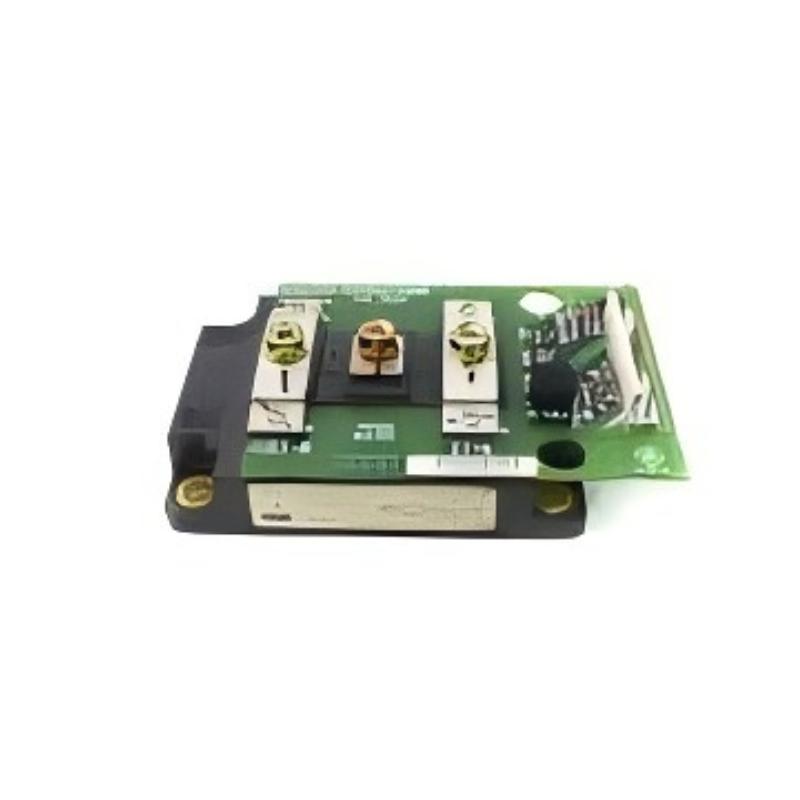

The GE DS200IPCDG1ABA is an IGBT P3 snubber board used in GE industrial drive systems. It provides critical suppression of voltage spikes, supports IGBT switching protection, and stabilizes high-power inverter operation to ensure long-term reliability of the power module.
General Information
Part Number: DS200IPCDG1ABA
Manufacturer: GE (General Electric)
Series: GE Drive Systems
Type: IGBT Snubber Board
Mounting: Installed within drive power module
Technology: High-voltage snubber circuits, fast-response suppression network
Country of Origin: United States
Power Specifications
Input: High-voltage DC from the inverter power stage
Function: Absorbs switching spikes and redistributes transient energy
Protection: Over-voltage suppression, transient energy damping
Indicators: None
Communication & Interface
Interface Role: Works directly with IGBT power module terminals
Connectivity: High-current terminal connections and board-to-module harness
Diagnostics: Hardware-level electrical testing only
Operator Interface: None
Reset Features: Not applicable (passive protection circuitry)
I/O & Channels
Inputs: High-energy switching transients
Outputs: Stabilized voltage profile across IGBT devices
External Load Support: Not intended for external I/O
Function: Protects IGBT modules from surge and switching stress
Environmental
Operating Temperature: −30 to +70 °C
Humidity: Up to 95% RH, non-condensing
Installation: Inside protected industrial drive enclosure
Dimensions & Weight
Dimensions (L × W × H): 180 × 130 × 35 mm
Weight: ~ 0.5 kg
