Overview

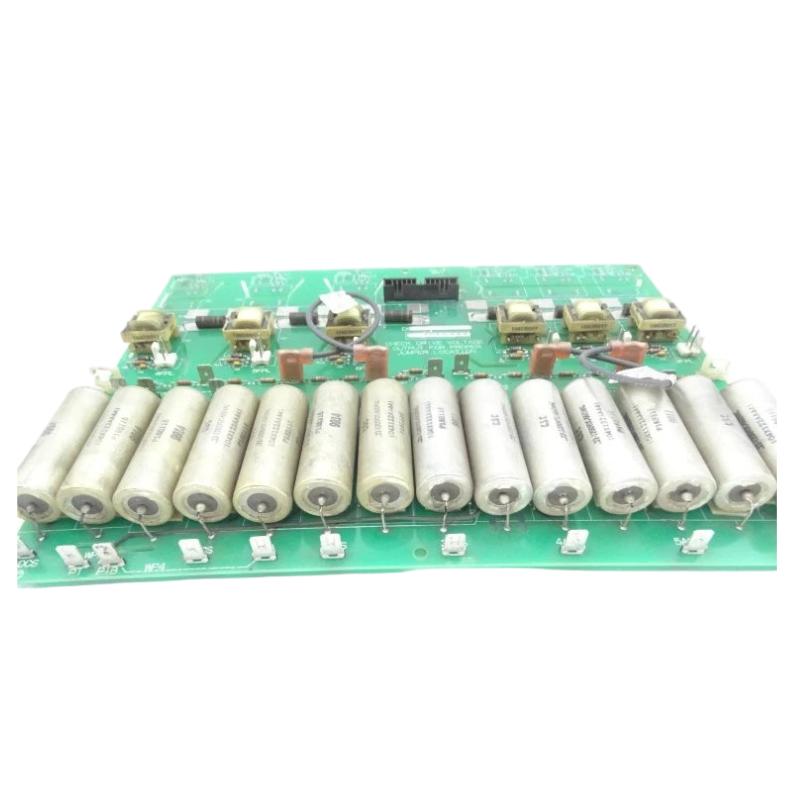

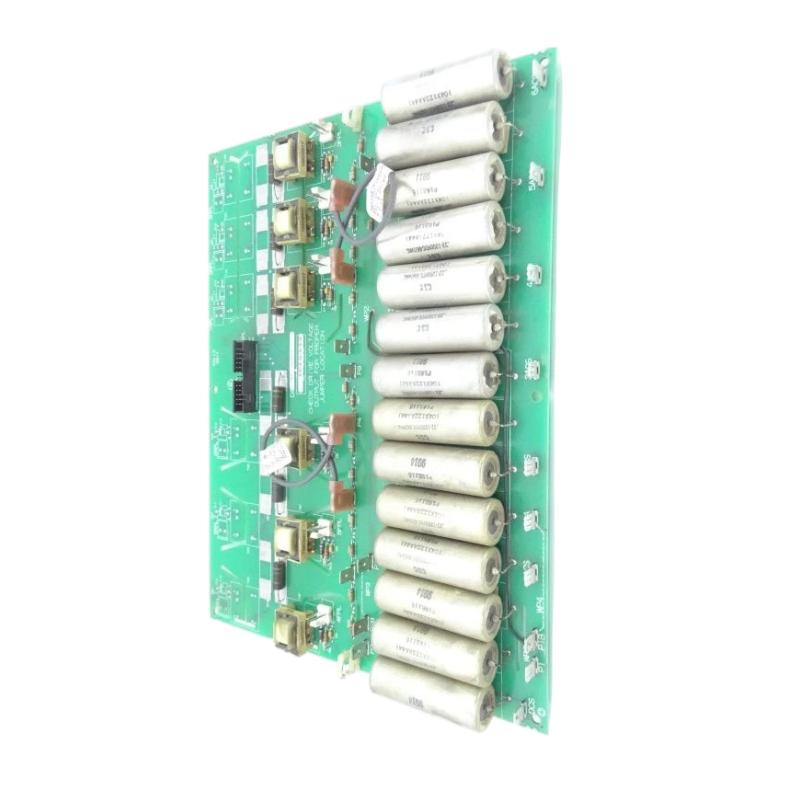

The GE DS200PCCAG8ACB is a high-performance circuit board module designed for use in GE Mark V and industrial drive control systems. It supports power conversion, signal conditioning, and interface functions, ensuring stable communication and reliable operation within the drive cabinet.
General Information

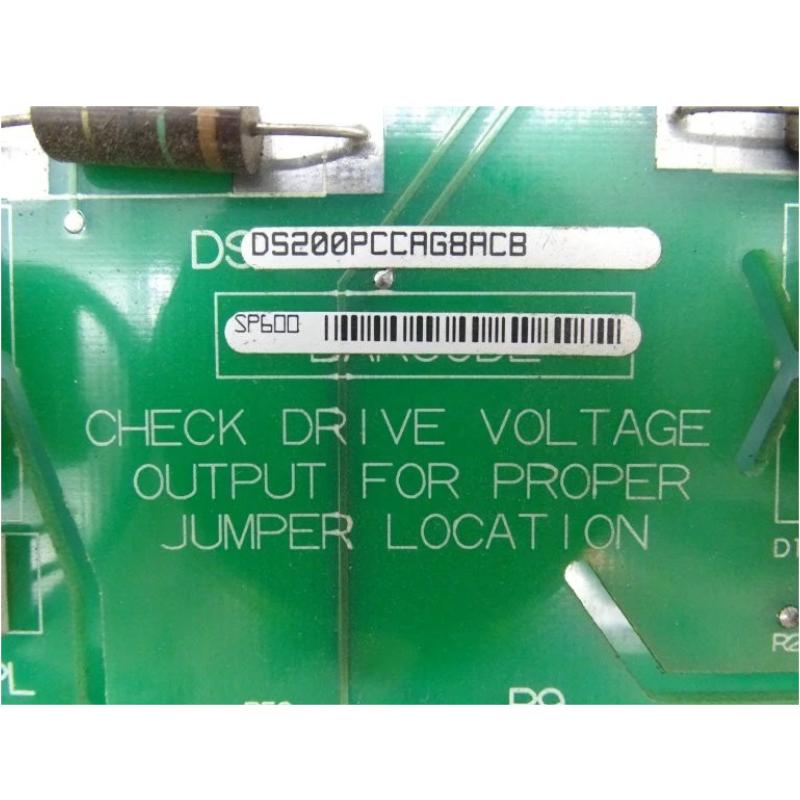

Part Number: DS200PCCAG8ACB
Manufacturer: GE (General Electric)
Series: Mark V / Drive Control Platform
Type: Power Conversion / Control Interface Board
Mounting: Rack or chassis card-slot installation
Technology: Mixed analog–digital circuitry with onboard diagnostics
Country of Origin: United States
Power Specifications
Supply Voltage: Provided through the drive backplane
Power Consumption: Low-power electronics (module-dependent)
Protection: Surge protection, filtering circuits, onboard stabilizers
Indicators: Status LEDs (board-dependent)
Communication & Interface
Interfaces: Internal drive communication bus
Functional Role: Power circuit conditioning, signal routing, interface support
Diagnostics: Supports system self-check and drive status monitoring
Operator Interface: LED indicators (if applicable)
Reset Features: Reset via system control or power cycle
I/O & Channels
Relay Channels: None
Analog/Digital Channels: Internal control and signal pathways
External Load Support: Not applicable
Primary Function: Condition and deliver signals to other drive modules
Environmental
Operating Temperature: −30 to +65 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for enclosed industrial drive cabinets
Dimensions & Weight
Dimensions (L × W × H): 280 × 190 × 40 mm
Weight: ~ 1.0 kg
