Overview

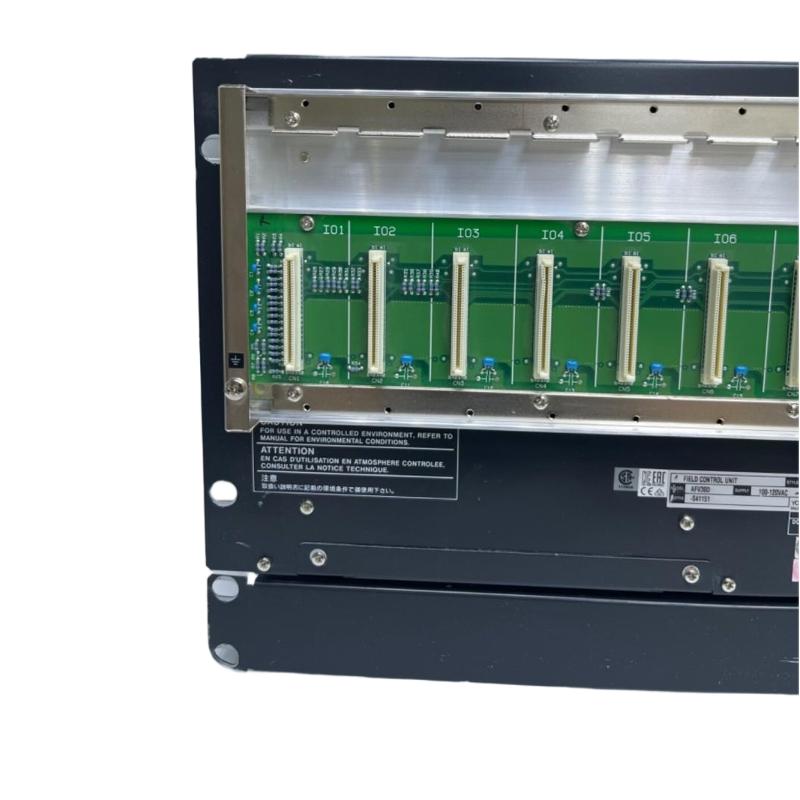

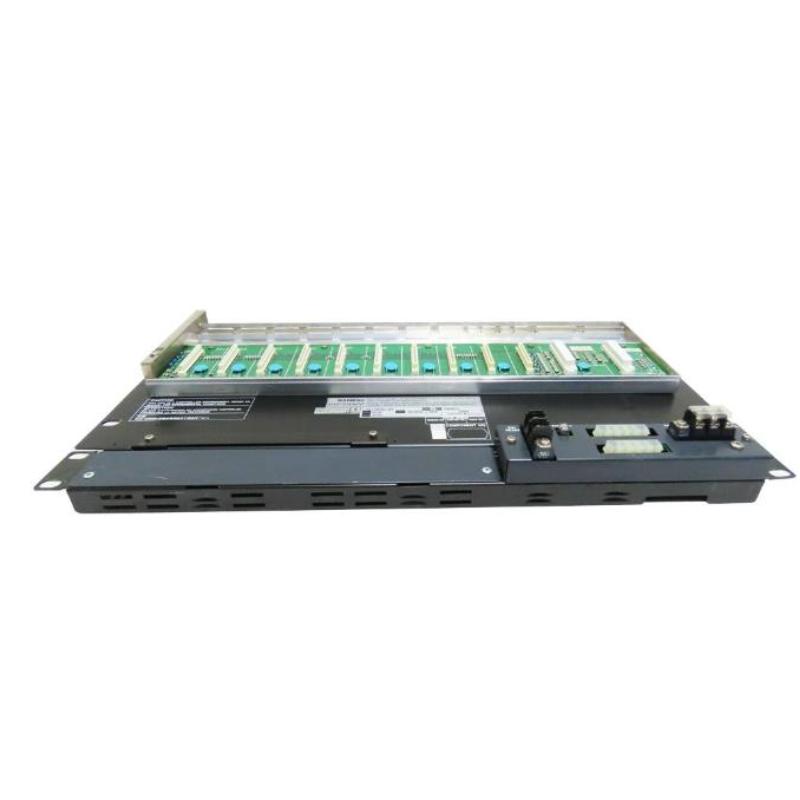

The Yokogawa AFV10D-S41201 S2 is a Vnet/IP communication module used in CENTUM VP and ProSafe-RS systems. It provides reliable, high-speed real-time communication between field control stations and the plant network, supporting redundant and stable operation in critical process applications.
General Information
Part Number: AFV10D-S41201 S2
Manufacturer: Yokogawa
Series: AFV10D
Type: Vnet/IP Communication Module
Application: Distributed control systems, plant network communication, redundant system architectures
Mounting: Installed in rack-based system nodes
Technology: High-performance Vnet/IP communication with enhanced diagnostics and redundancy support
Power Specifications
Supply Voltage: Supplied through system backplane
Power Consumption: Standard for AFV10D communication modules
Protection: Surge protection, isolation, built-in fault tolerance
Indicators: LEDs for power, communication status, link activity, and fault
Communication & Interface
Network Type: Vnet/IP real-time Ethernet
Function: Provides communication link between controllers and system networks
Diagnostics: Self-checking functions, communication monitoring, fault indication
Interface: LED status display and module configuration settings
Environmental
Operating Temperature: Standard Yokogawa control system range
Humidity: Non-condensing industrial humidity tolerance
Protection Rating: Suitable for enclosed control cabinets
Dimensions & Weight
Dimensions (L × W × H): 207 × 265.9 × 482.6 mm
Weight: 8 kg
