Overview

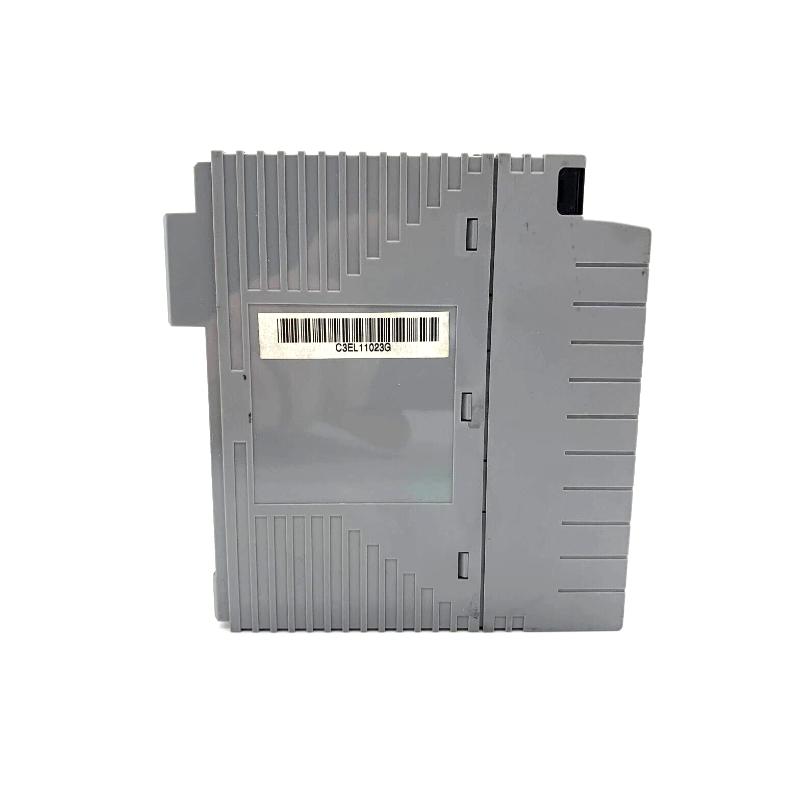

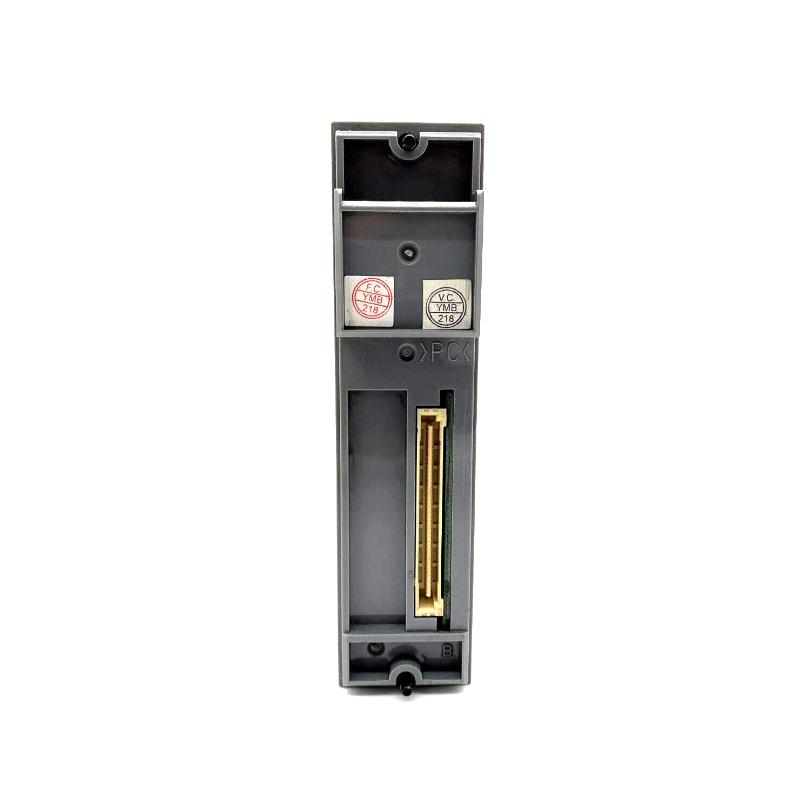

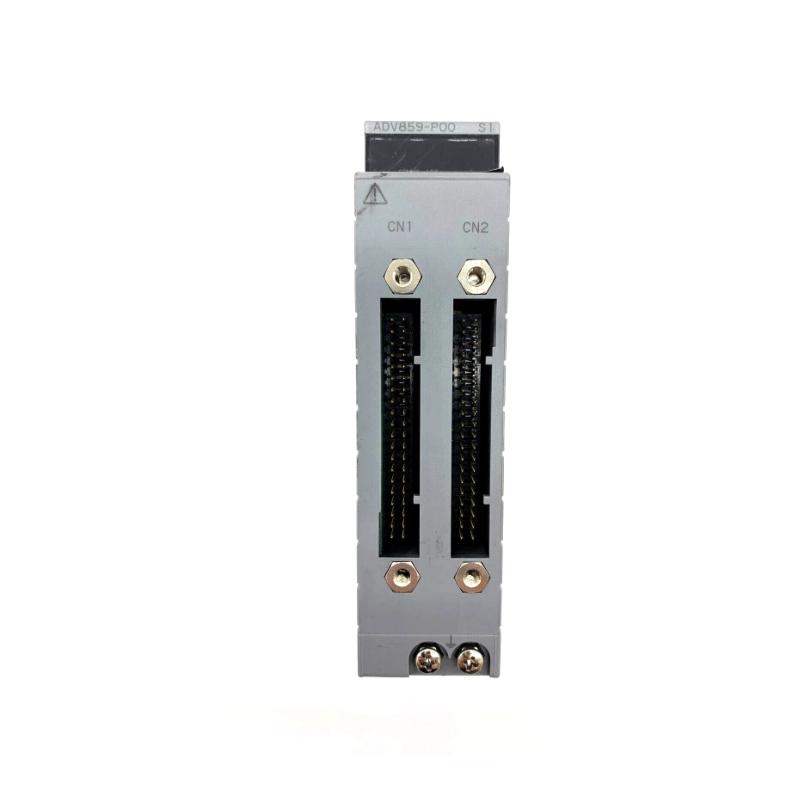

The Yokogawa ADV859-P00 is an analog/digital interface module designed for use in CENTUM CS3000/VP control systems. It provides reliable signal processing, stable communication, and enhanced diagnostic capability for industrial process control applications.

General Information

Part Number: ADV859-P00
Manufacturer: Yokogawa
Series: ADV800 Series
Type: I/O Interface Module
Mounting: Installed in the system I/O rack
Technology: Signal conditioning, isolation circuits, internal diagnostics

Power Specifications

Supply Voltage: Provided through backplane (5 V / 24 V depending on rack design)
Power Consumption: < 6 W
Input Source: Internal system power
Protection: Overcurrent protection and channel isolation
Indicators: LEDs for module health and channel status

Communication & Interface

System Bus: Yokogawa ESB/ICB bus communication
I/O Type: Analog/digital interface depending on system configuration
Diagnostics: Built-in self-check, line fault detection, module health monitoring
Operator Interface: Status LEDs and configuration switches
Reset Features: Software reset or power cycle reset

I/O & Channels

Channels: Model-dependent mixed I/O channels
Signal Types: Supports industrial analog and logic-level digital signals
Isolation: Channel-to-bus and channel-to-channel isolation
External Load: Not applicable (conditioning/interface only)

Environmental

Operating Temperature: 0 to +55 °C
Humidity: Up to 90% RH, non-condensing
Protection Rating: IP20 (for cabinet installation)

Dimensions & Weight

Dimensions (L × W × H): 130 × 127.2 × 32.8 mm
Weight: ~ 0.3 kg

Genuine new inventory, ready to ship anytime.
