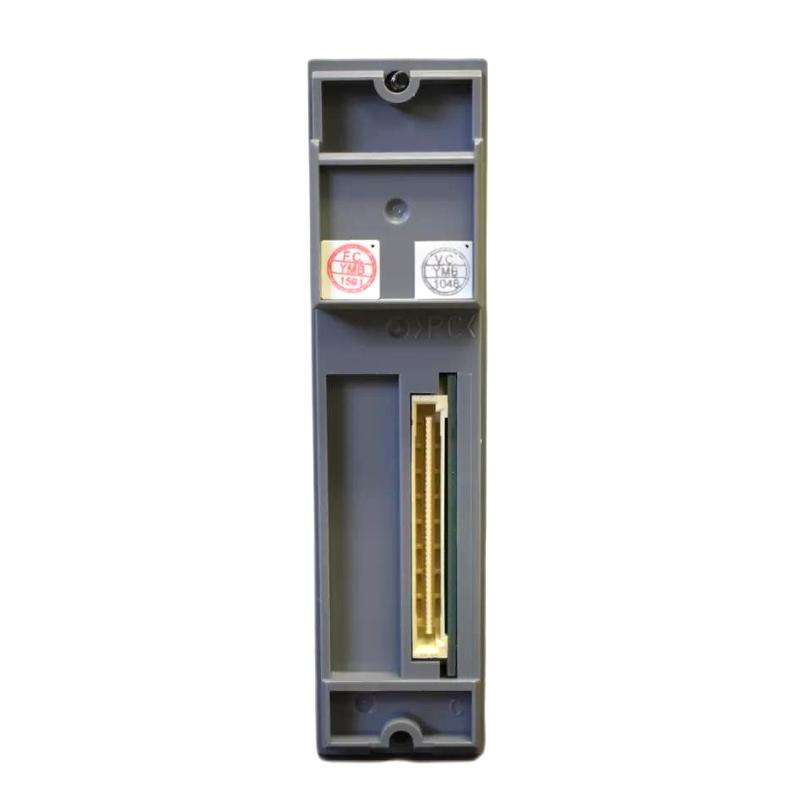

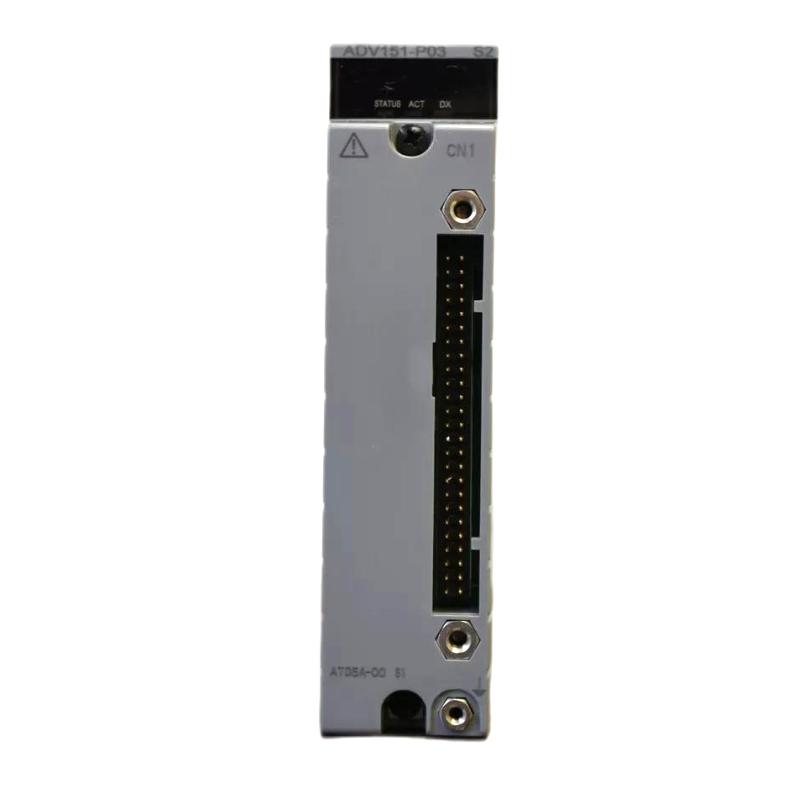

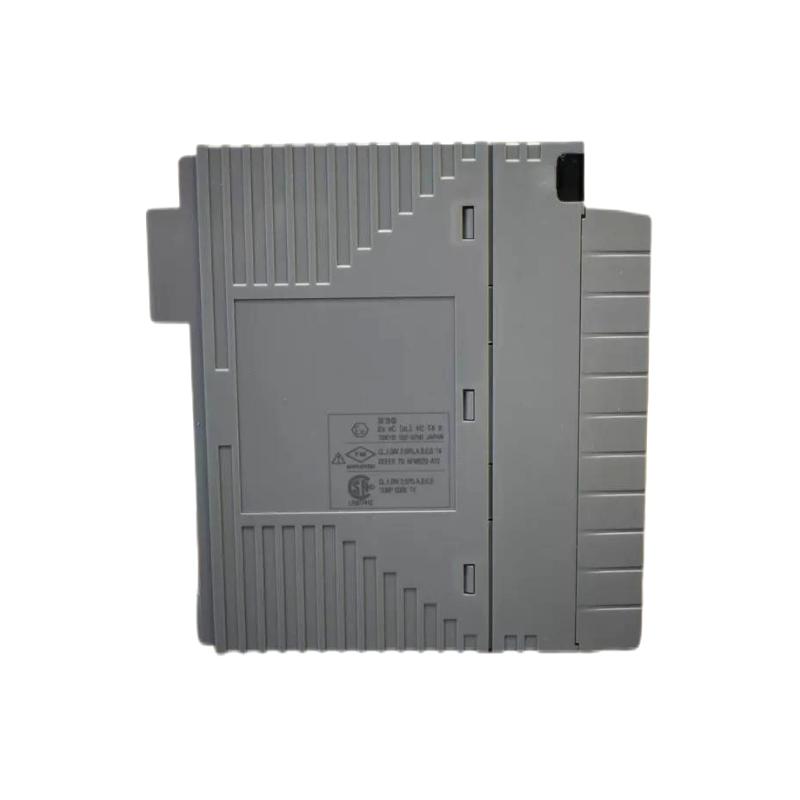

Yokogawa ADV151-P03 | Digital I/O Module Quality Selection

Overview

The Yokogawa ADV151-P03 is a high-performance digital I/O module designed for use in Yokogawa’s CENTUM VP and CS3000 control systems. It enables reliable digital signal input/output processing in industrial automation environments. Compact and lightweight, this module is frequently used in mission-critical process control applications.

General Information

Model Number: ADV151-P03
Manufacturer: Yokogawa
Series: ADV151 Digital I/O Series
Type: Digital Input/Output Module
Mounting: Card installation in I/O rack or base unit
System Compatibility: CENTUM VP / CENTUM CS3000

Power Specifications

Operating Voltage: 24 V DC (through system backplane)
Power Consumption: Low power, dependent on load
Integration: Backplane power supply from FCS
Protection: Surge and EMC protection built-in
Indicators: Status LEDs for channel and communication signals

Communication & Interface

Signal Interface: Digital I/O channels
Module Role: Handles digital input and output signals for field devices
Diagnostics: Module self-diagnostics with status indication
Operator Interface: Visible LEDs for online/offline status
Reset Features: Safe module reset via system commands

I/O & Channels

Channels Supported: Model-dependent digital I/O (typically 16–32 points)
Digital Mode: ON/OFF (discrete) signals
External Load: Designed for signal monitoring or output drive via digital circuits

Environmental

Operating Temperature: 0 to +50 °C
Humidity: 5% to 95% RH, non-condensing
Protection Rating: Suitable for installation in closed industrial cabinets

Dimensions & Weight

Dimensions (W × H × D): 107.5 × 130 × 32.8 mm
Weight: ~0.3 kg

Brand-new products in stock, 24/7 customer support, rapid quote service.
