Overview

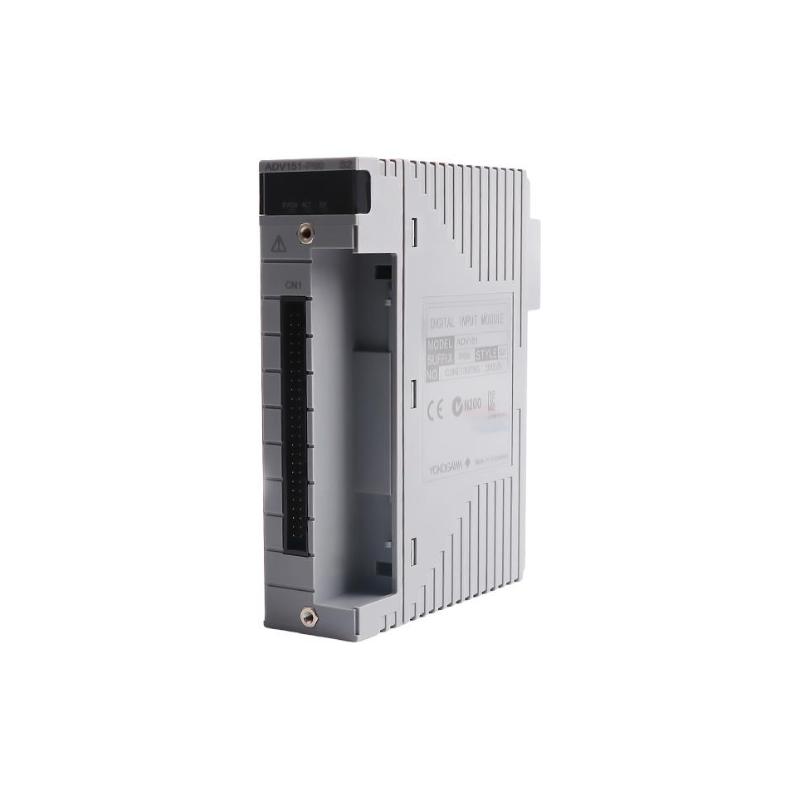

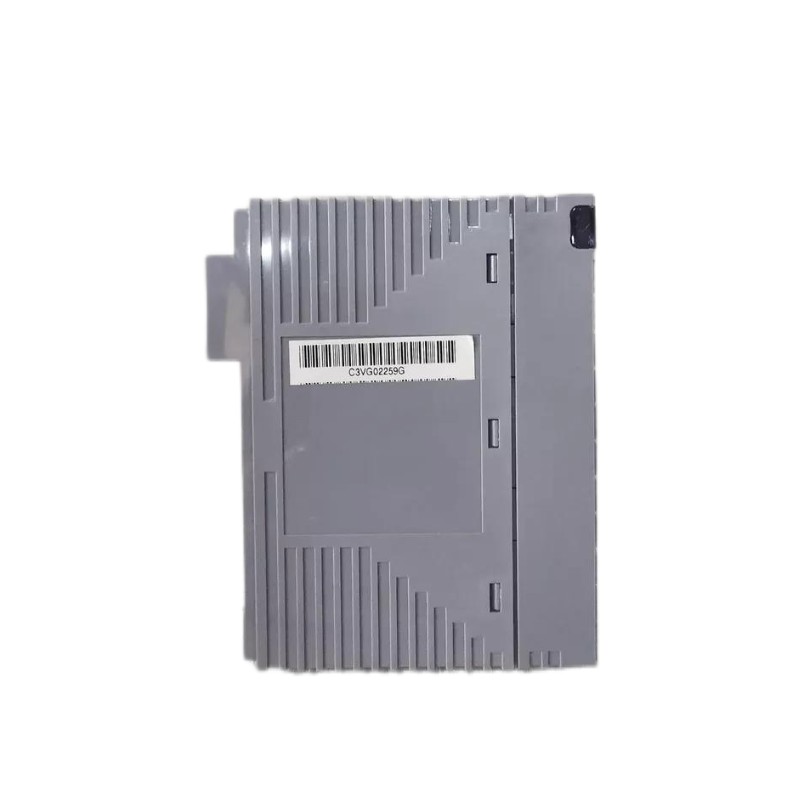

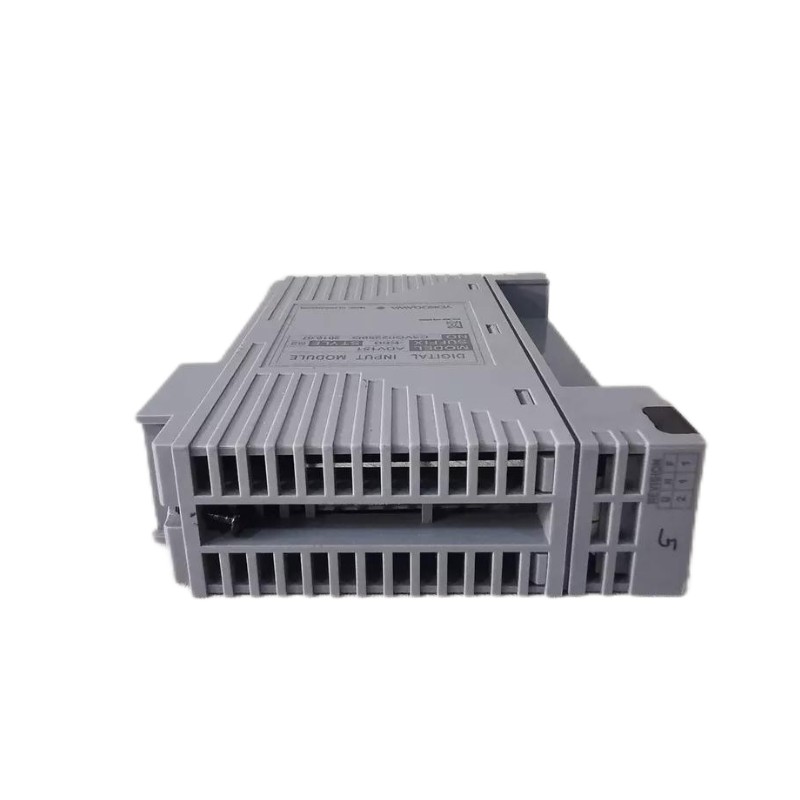

The Yokogawa ADV151-E60 is a digital output module designed for use in Yokogawa's DCS systems. It provides reliable and isolated digital output signals to external devices such as relays, indicators, and actuators, ensuring stable operation in industrial control environments.
General Information
Part Number: ADV151-E60
Brand / Country of Origin: Yokogawa / Japan
Series: ADV Series
Type: Digital Output Module
Mounting: Fits into dedicated I/O rack slots
Technology: High-speed isolated digital signal processing
Power Specifications
Supply Voltage: Powered through the system backplane
Power Consumption: Optimized for energy efficiency
Output Channels: Supports multiple digital output channels
Protection: Includes short-circuit and overload protection
Indicators: Front-facing LEDs for output and status indication
Communication & Interface
Output Type: Digital outputs for control signals to field devices
Control Role: Drives external loads for automation systems
Configuration: Configured via system toolset
Diagnostics: Real-time module and output status monitoring
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 90% RH, non-condensing
Protection Rating: Industrial-grade module suitable for control cabinets
Dimensions & Weight
Dimensions (L × W × H): 107.5 × 130 × 32.8 mm
Weight: ~ 0.3 kg
