Overview

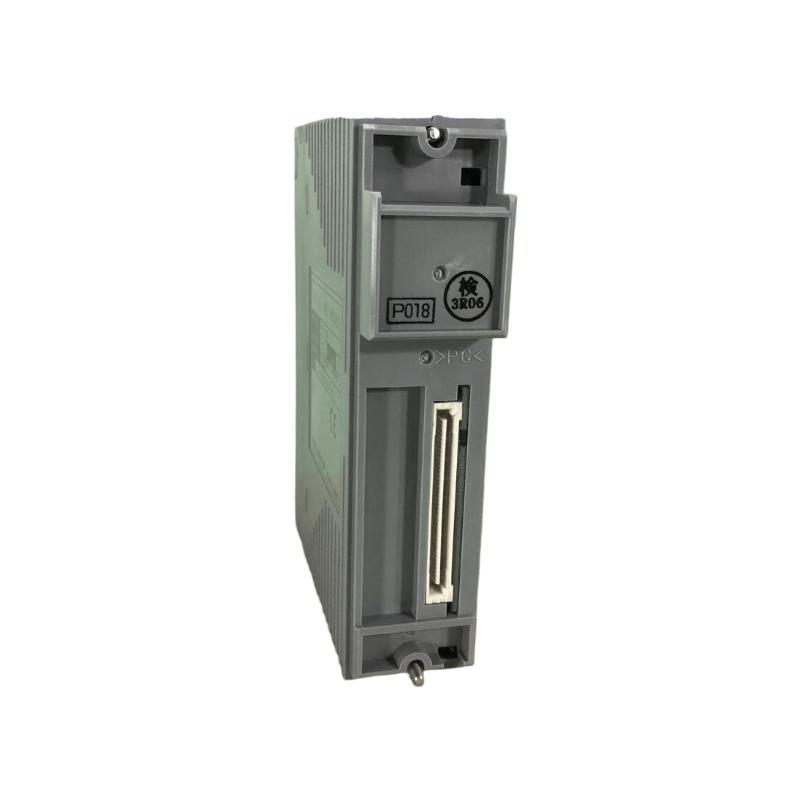

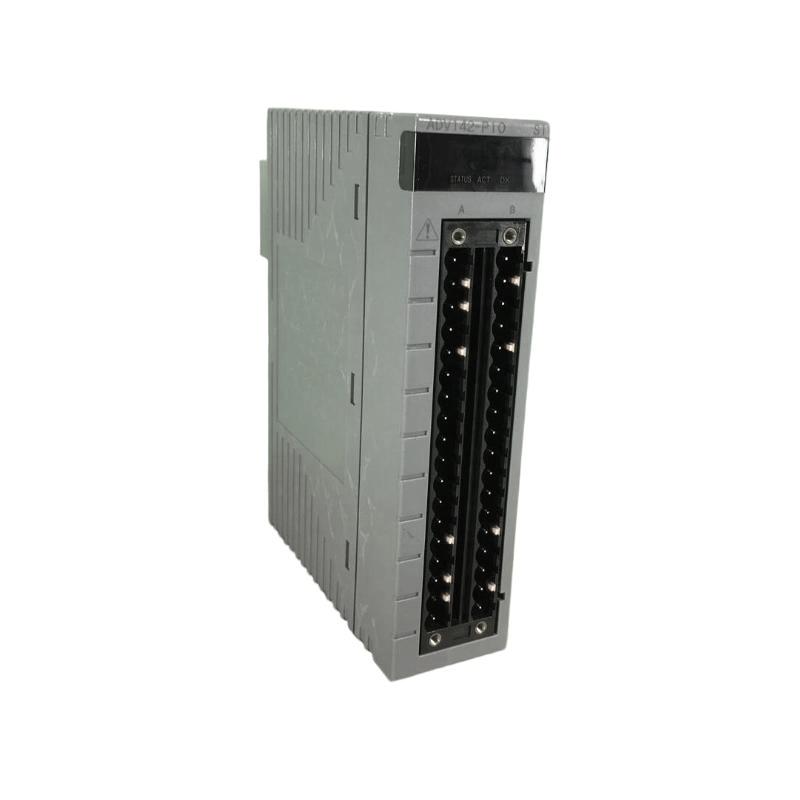

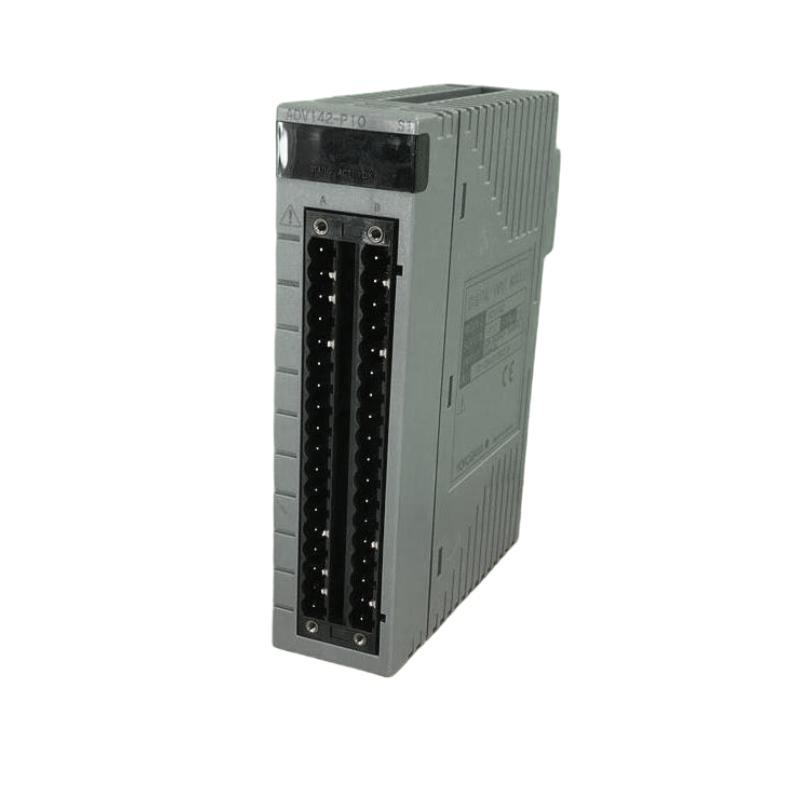

The Yokogawa ADV142-P10 is a reliable analog output module designed for precision signal output in distributed control systems. It delivers stable analog signals to field devices such as valves, actuators, and indicators, making it ideal for demanding industrial automation applications.
General Information
Model: ADV142-P10
Manufacturer: Yokogawa
Type: Analog Output Module
Application: Analog signal output for process control systems
Power Specifications
Supply Voltage: 24 V DC (supplied via system backplane)
Power Consumption: Designed for efficient low-power operation
Output Isolation: Isolated output channels to improve reliability
Communication & Interface
Output Type: Supports standard analog signal formats (e.g., 4–20 mA)
Channel Support: Offers multi-channel output capability
Connection: Terminal block interface for secure wiring
System Integration: Fully compatible with Yokogawa CENTUM series
Environmental
Operating Temperature: 0°C to +55°C
Humidity: 5% to 95% RH (non-condensing)
Mounting: Suitable for industrial control cabinets or rack installations
Dimensions & Weight
Dimensions: 107.5 × 130 × 32.8 mm
Weight: 0.3 kg
