Overview

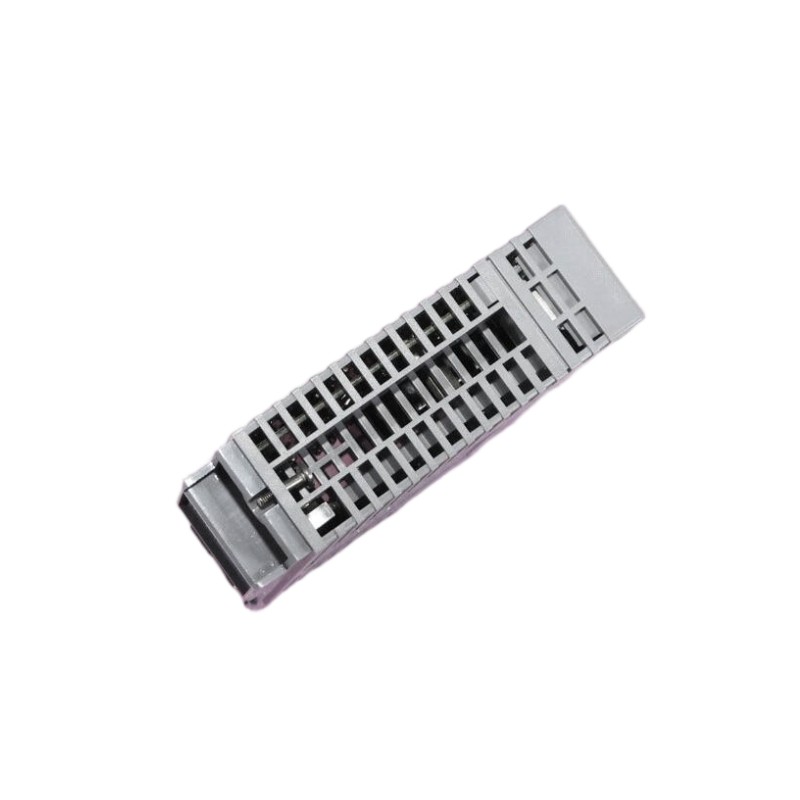

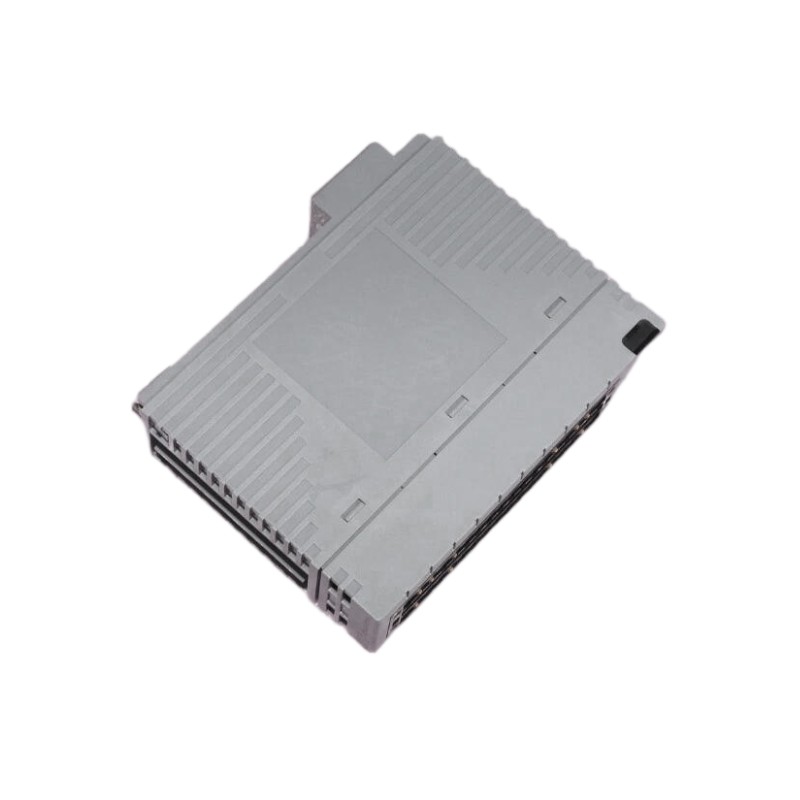

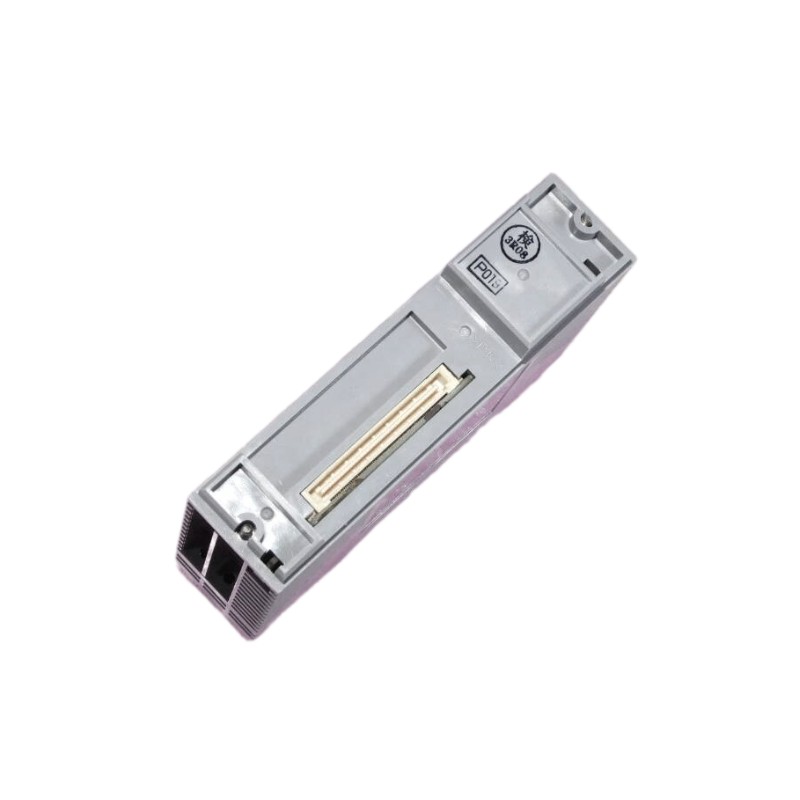

The Yokogawa ADV142-P13 is an analog output module used within the CENTUM series control systems. It delivers high-accuracy analog signal output for controlling external devices, such as actuators, valves, and indicators, making it suitable for process automation in power plants, petrochemical facilities, and other industrial applications.
General Information
Model: ADV142-P13
Manufacturer: Yokogawa
Product Type: Analog Output Module
Country of Origin: Japan
Application: Industrial process control and system integration
Power Specifications
Input Voltage: Supplied through system backplane
Power Consumption: Optimized for low power use within the system
Isolation: Channel-to-channel and channel-to-backplane galvanic isolation
Output Signal: Current-based analog output (e.g., 4–20 mA)
Communication & Interface
Communication Protocol: Designed for CENTUM control systems
Connection Type: Plug-in terminal block
Channels: Multiple independent analog output channels
Diagnostics: Built-in self-diagnostics to ensure system reliability
Environmental
Operating Temperature: 0 to +55°C
Storage Temperature: −20 to +70°C
Humidity: 5% to 95% RH (non-condensing)
Mounting: Mounted in a standard I/O slot within Yokogawa rack systems
Dimensions & Weight
Dimensions: 107.5 × 130 × 32.8 mm
Weight: 0.3 kg
