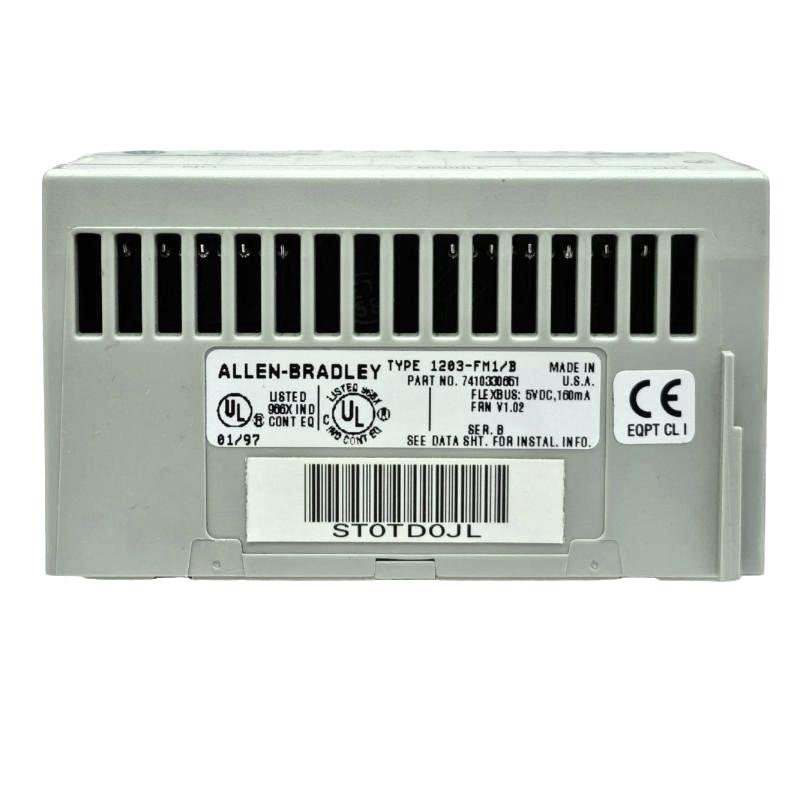

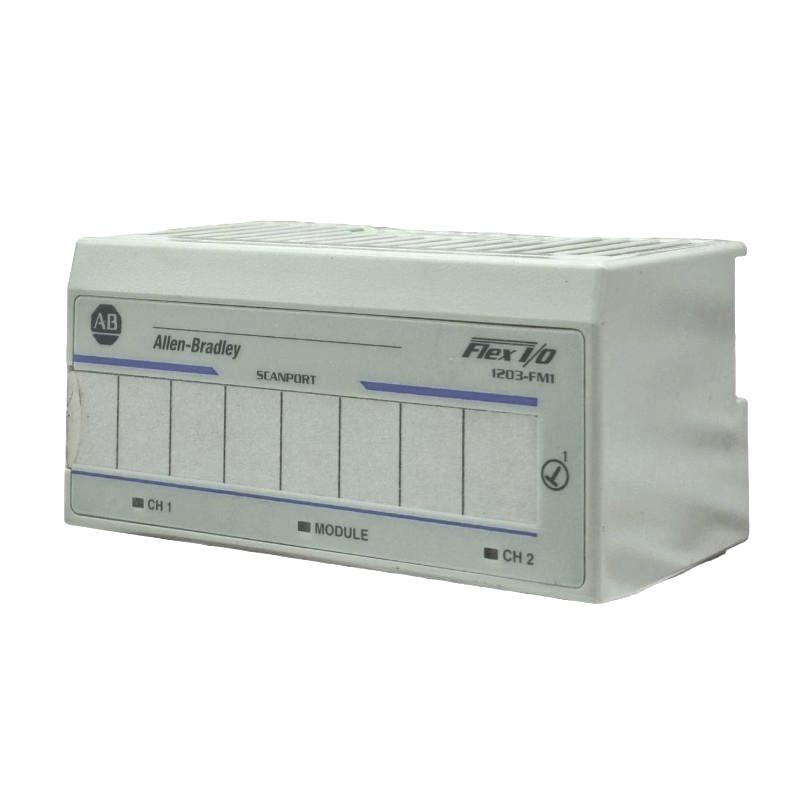

Allen-Bradley 1203-FM1 SCANport Fault Symptoms
Time:2026-05-29 Browse: 0
Typical field symptoms include:
SCANport device not detected
Channel LED flashing continuously
Flex I/O rack shows healthy but drive not responding
Intermittent loss of drive feedback signals
In practice, these faults are often misdiagnosed as drive failure, while the actual root cause is in communication layer instability.
Allen-Bradley 1203-FM1 Fault Case (Field Observation)
In one industrial HVAC system, operators reported random loss of drive control every few hours.
Observed conditions:
SCANport devices dropped offline intermittently
Flex I/O rack remained powered and stable
No hardware alarms on drive itself
Failure correlated with cabinet temperature rise (~45°C)
At first, the module was suspected faulty.
However, deeper inspection showed thermal expansion causing micro-disconnection at the Flexbus connector interface, especially on the module-to-base contact pins.
Allen-Bradley 1203-FM1 Root Cause Analysis
The failure mechanism was:
Temperature increase → PCB expansion
Flexbus contact pressure reduced
SCANport communication jitter increases
Drive enters communication retry loop
PLC perceives device timeout
This type of failure is common in older Flex I/O systems where mechanical retention is more critical than electronic failure.
Allen-Bradley 1203-FM1 Repair & Recovery Actions
Corrective actions included:
Reseating module and cleaning Flexbus contact interface
Replacing slightly oxidized terminal base
Ensuring cabinet cooling airflow improved (fan repositioning)
Verifying SCANport cable continuity and shielding resistance (<1Ω target)
After repair, system behavior improved immediately:
SCANport dropouts eliminated
Drive communication stable over 72-hour continuous runtime
No further “channel loss” events recorded
Allen-Bradley 1203-FM1 Field Engineering Notes
From field experience:
SCANport systems are highly sensitive to mechanical seating quality
Thermal cycling is a major hidden failure source
Most “module failures” are actually base or connector issues
Flex I/O backplane alignment is more critical than software configuration
Although the 1203-FM1 module is now legacy/discontinued, it remains widely used in brownfield automation systems where SCANport drives are still in service.
