Overview

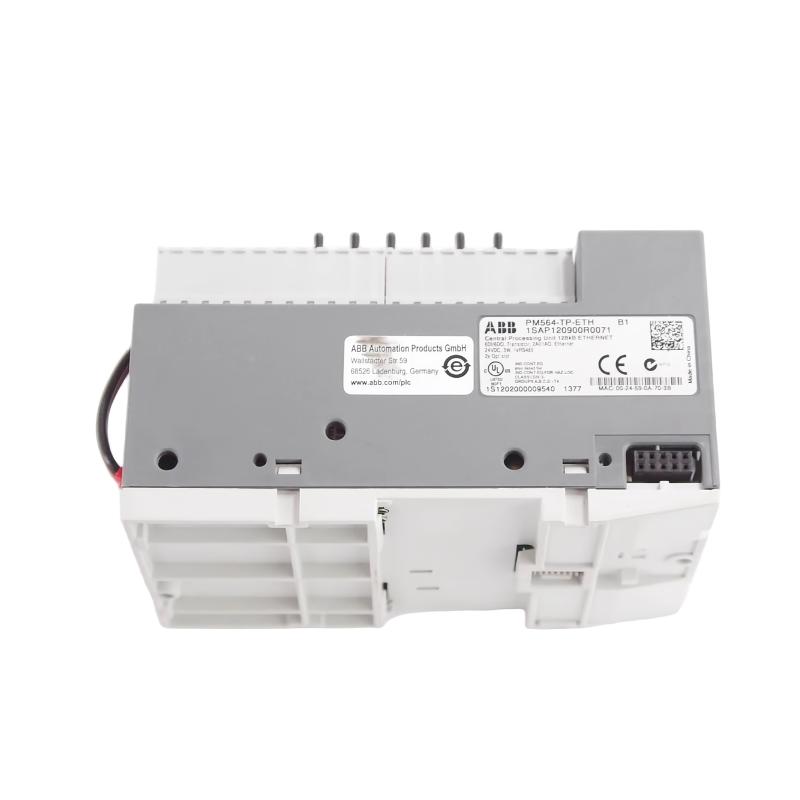

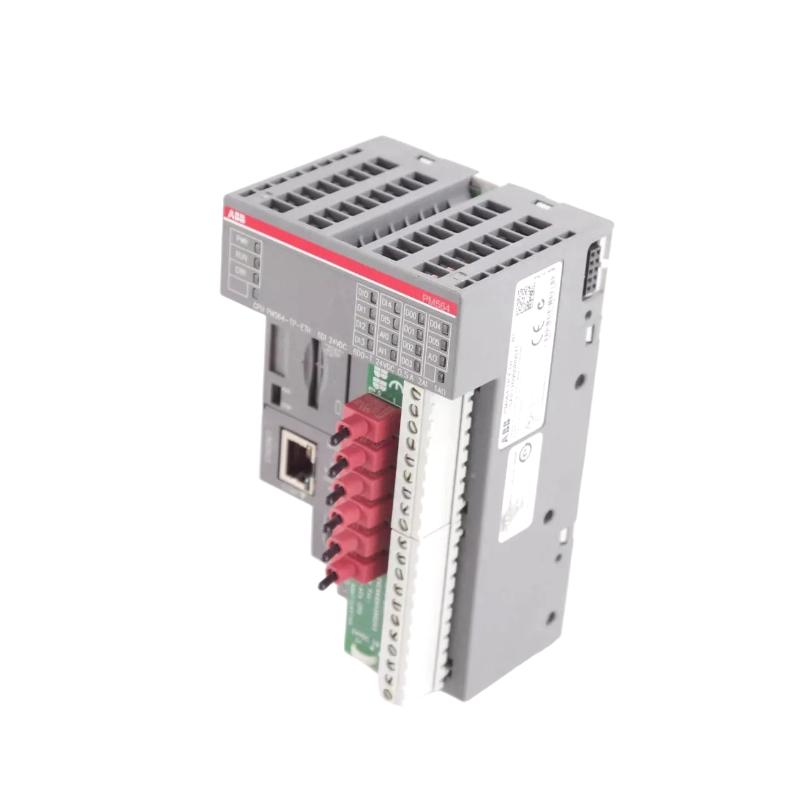

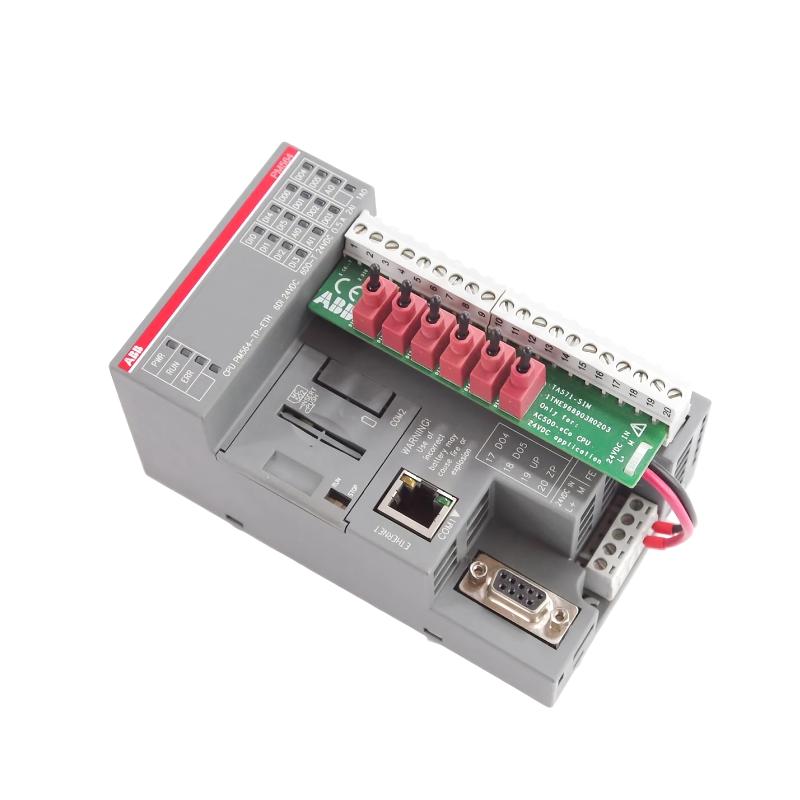

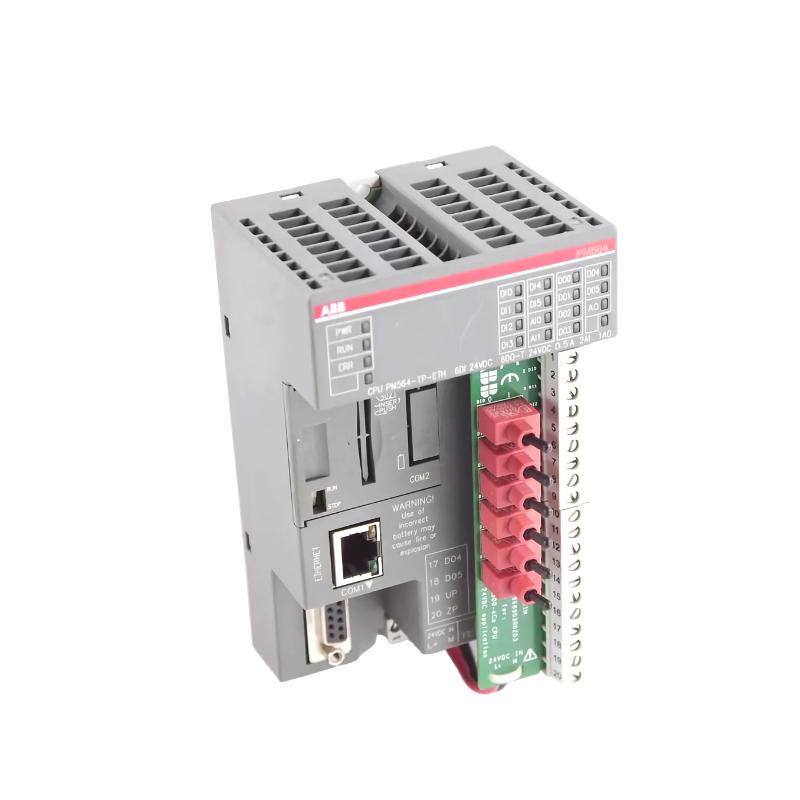

The ABB PM564-TP-ETH is a compact CPU module for the AC500 PLC series, designed to provide reliable control performance with integrated Ethernet capability. It supports standardized communication, modular expansion, and stable operation in industrial automation environments.
General Information
Part Number: 3ABD00033169
Manufacturer: ABB
Brand Country of Origin: Sweden
Series: AC500
Type: Processor Module (CPU with Ethernet)
Mounting: DIN-rail installation
Technology: Integrated Ethernet, compact CPU architecture
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Low-power CPU module
Input Source: External 24 V DC supply
Protection: Overvoltage, overload, and reverse-polarity protection
Indicators: LEDs for RUN, ERR, COM, ETH status
Communication & Interface
Ethernet Port: Integrated Ethernet (programming & communication)
System Role: Main CPU for AC500 control applications
Diagnostics: Built-in self-diagnostic and fault indication
Operator Interface: LED indicators and engineering tool configuration
Reset Features: Hardware and software reset support
I/O & Channels
Local I/O: Expandable via S500 I/O modules
Function: Executes user control logic and manages I/O communication
External Load Support: Not applicable (logic and communication only)
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for closed industrial control panels
Dimensions & Weight
Dimensions (L × W × H): 74 × 135 × 82 mm
Weight: ~ 0.29 kg
