Overview

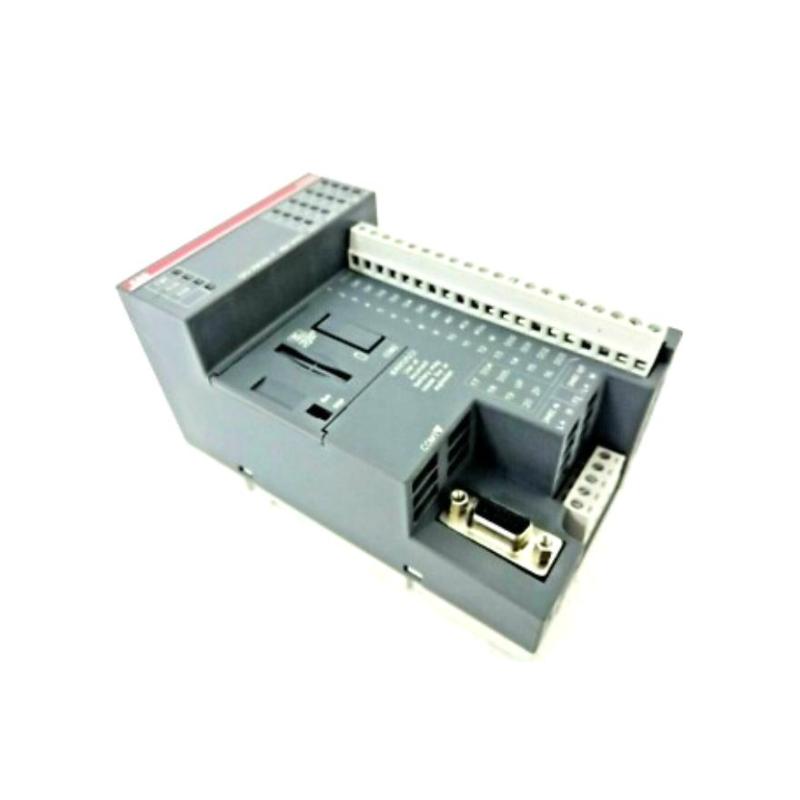

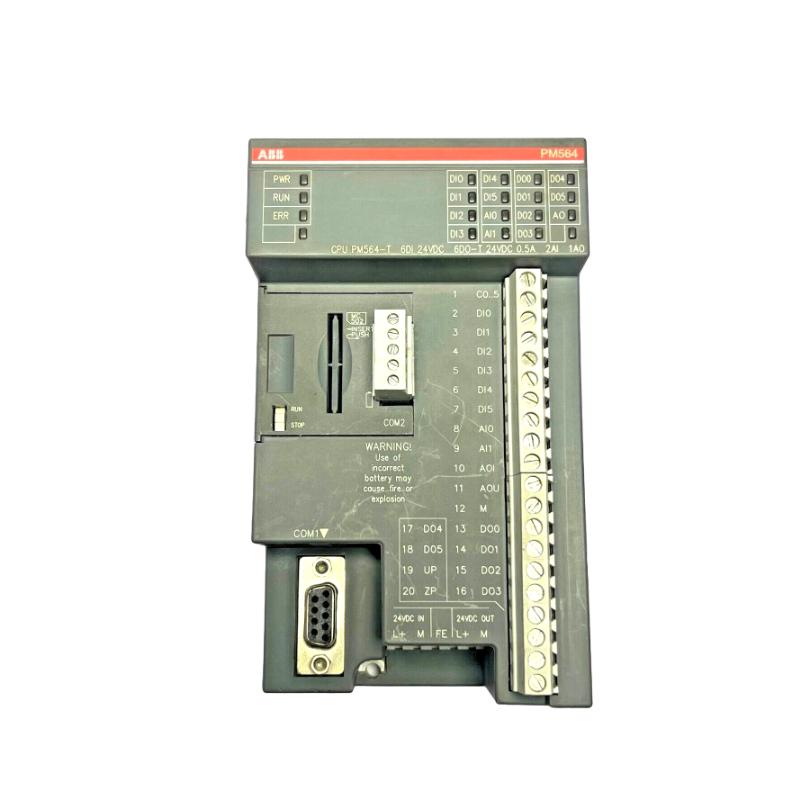

The ABB PM564-T is a compact processor module designed for AC500 PLC platforms. It delivers stable control performance, built-in communication capability, and modular expansion for a wide range of industrial automation applications.
General Information

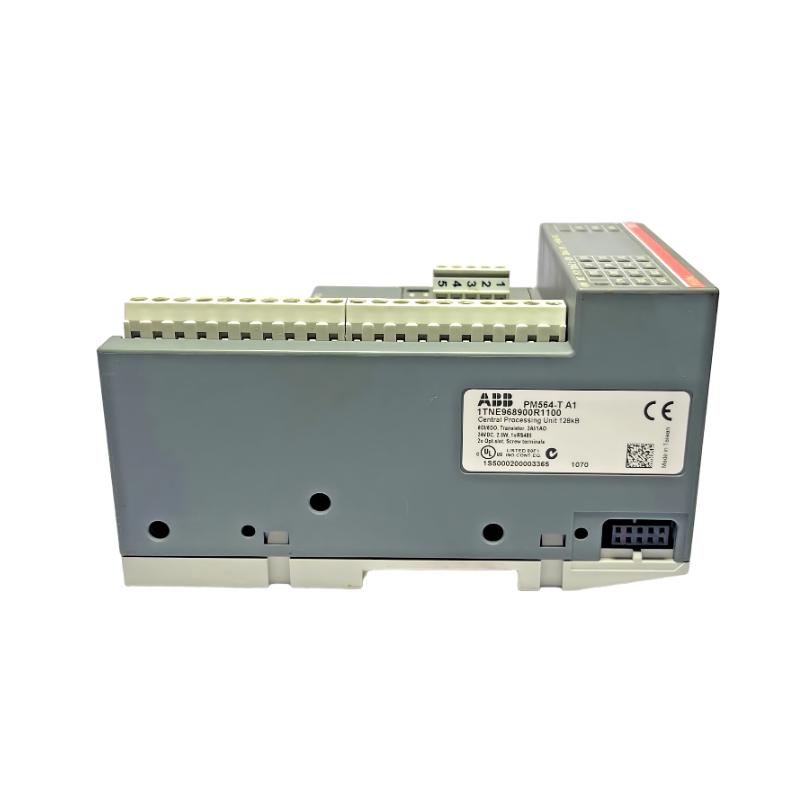

Part Number: 1TNE968900R1100
Manufacturer: ABB
Brand Country of Origin: Sweden
Series: AC500
Type: Processor Module (CPU)

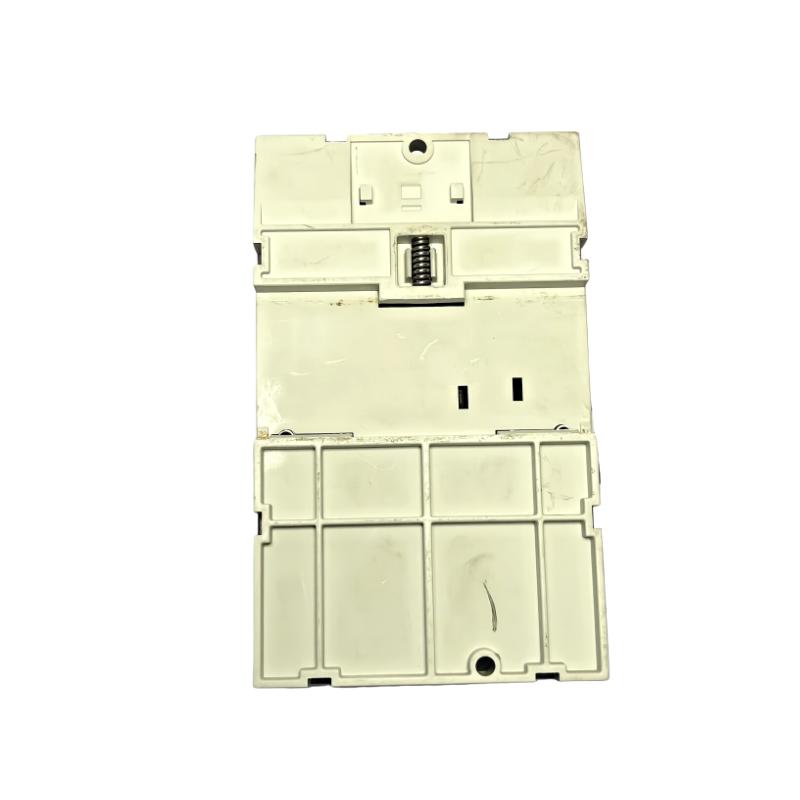

Mounting: DIN-rail installation
Technology: Compact CPU architecture with integrated communication features
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Low-power industrial CPU design
Input Source: External 24 V DC power supply
Protection: Overvoltage, overload, and reverse-polarity protection
Indicators: LEDs for operating status and communication
Communication & Interface
Ports: Integrated serial/Ethernet communication (model-dependent)
System Role: Main controller for AC500 automation systems
Diagnostics: Self-diagnostic monitoring and status reporting
Operator Interface: LED indicators and engineering tool configuration
Reset Features: Hardware and software reset support
I/O & Channels
Local I/O: Expandable via S500 I/O modules
Function: Executes control logic and manages I/O communication
External Load Support: Not applicable (controls I/O modules, not loads directly)
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for enclosed industrial control panels
Dimensions & Weight
Dimensions (L × W × H): 135 × 74 × 82 mm
Weight: ~ 0.3 kg
