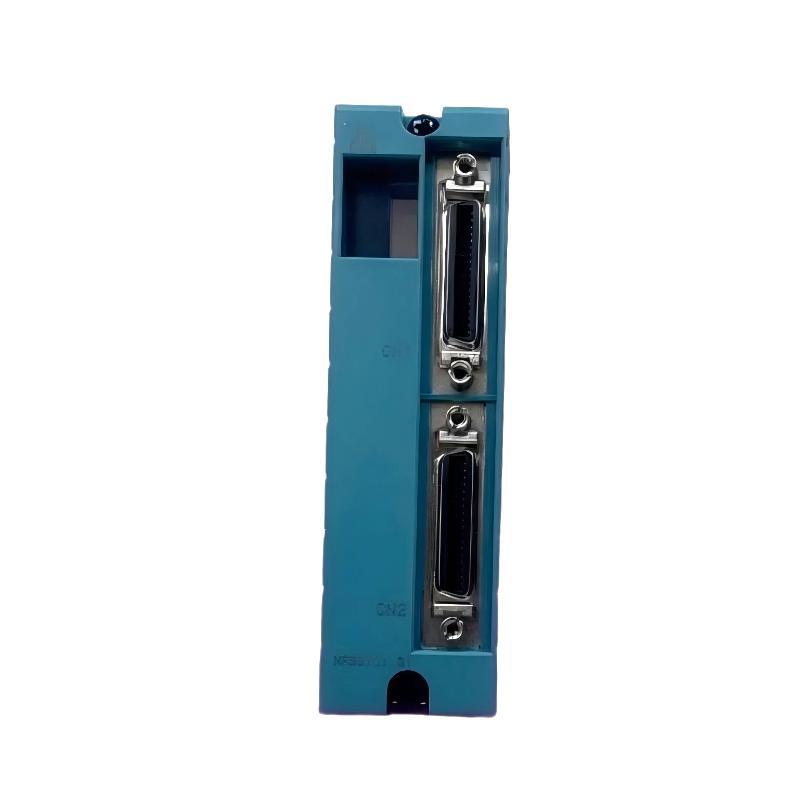

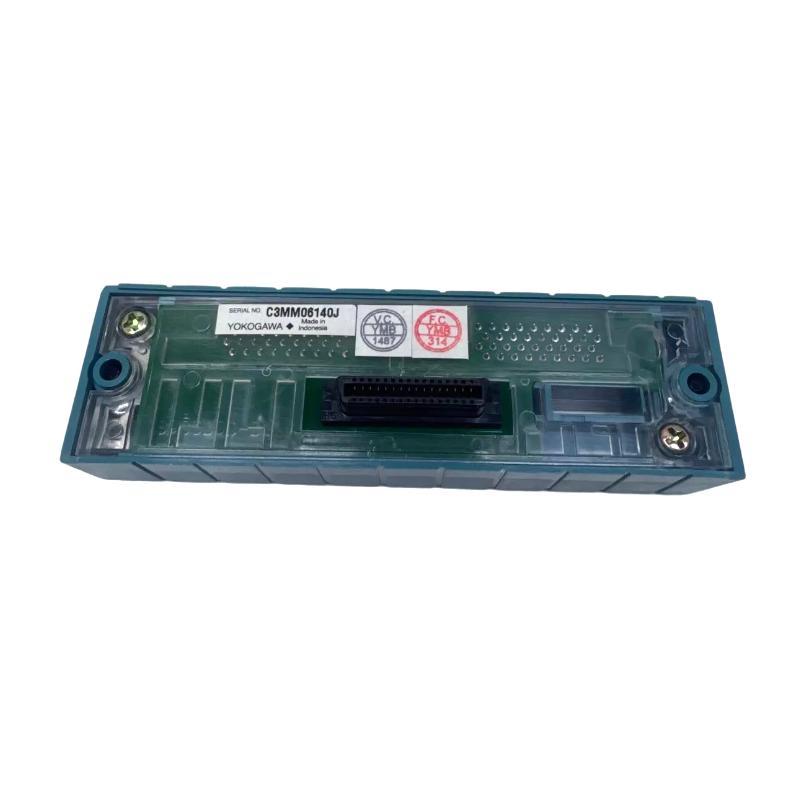

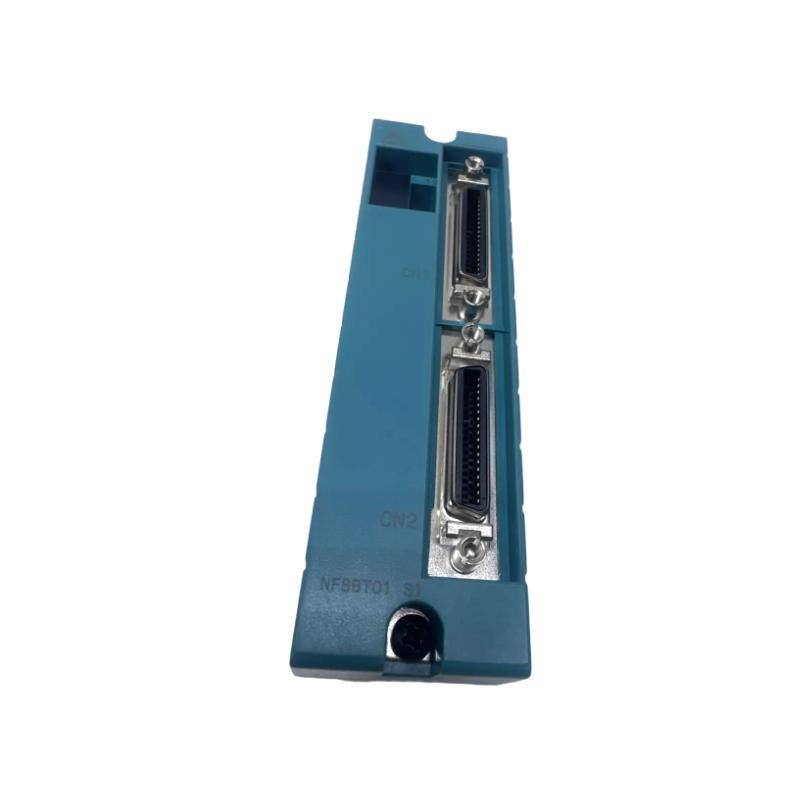

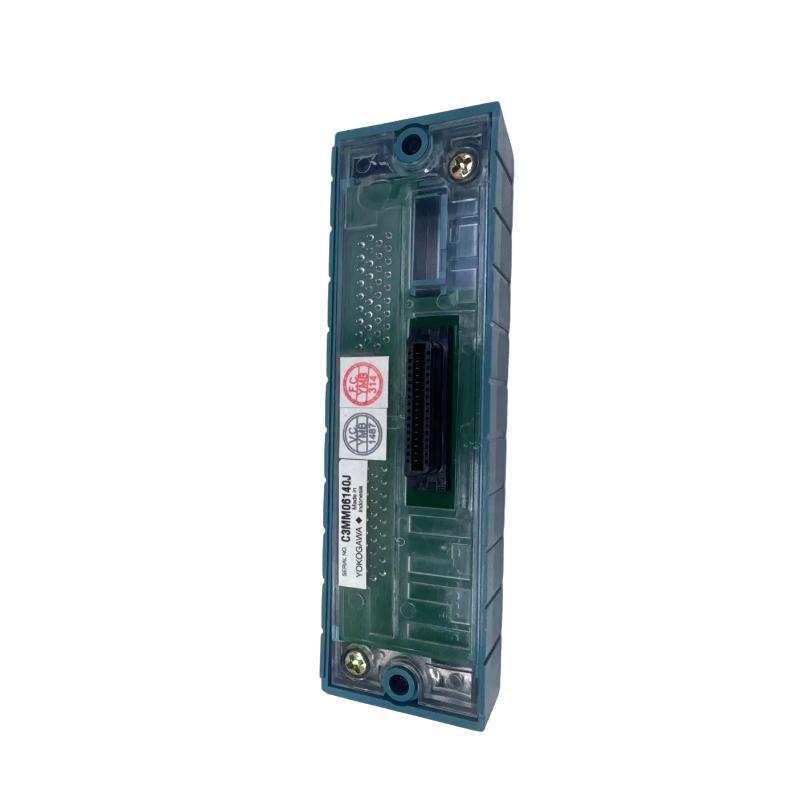

Yokogawa NFSBT02 SB Bus T-Connector With Built-In Terminator

Overview

The Yokogawa NFSBT02 SB Bus T-Connector With Built-In Terminator is a compact communication accessory designed for reliable connection and signal termination in industrial control networks. It provides convenient bus branching and stable signal performance for Yokogawa automation systems and field communication applications.

General Information

Part Number: NFSBT02

Brand: Yokogawa

Country of Origin: Japan

Series: SB Bus

Type: Bus T-Connector with Built-In Terminator

Application: Industrial communication networks, fieldbus connections, and control system wiring

Function: Bus branching, signal connection, and termination support

Installation: Inline mounting within communication network systems

Power Specifications

Power Supply: Passive communication accessory

Operating Voltage: No external power supply required

Power Consumption: 0 W

Protection Features: Electrical isolation and signal stability support

Connection Status: Designed for reliable bus communication operation

Communication & Interface

Communication Interface: SB Bus connection interface

Network Support: Compatible with Yokogawa industrial control communication systems

Connector Function: Provides T-branch connection for bus wiring

Termination Function: Integrated bus termination resistor for signal stability

Diagnostics: Supports reliable communication connection and network integrity

Environmental

Operating Temperature: -20 to +70 °C

Storage Temperature: -30 to +70 °C

Humidity: 10% to 90% RH, non-condensing

Protection Rating: IP20

Installation Environment: Industrial control cabinets and automation equipment

Dimensions & Weight

Dimensions (H × W × D): 100 × 35 × 25 mm

Weight: 0.3 kg

New In Stock!
