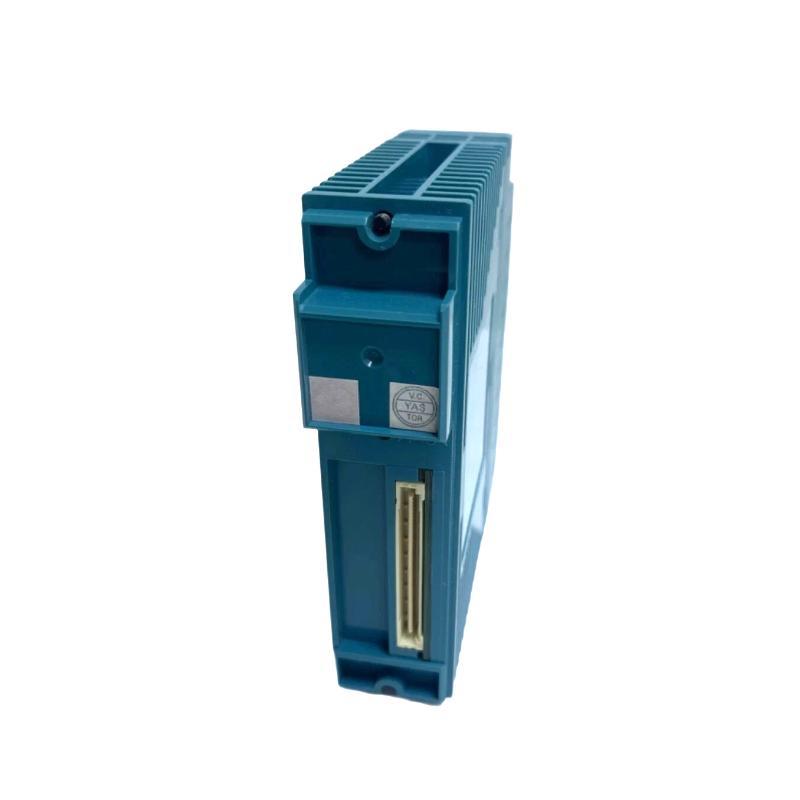

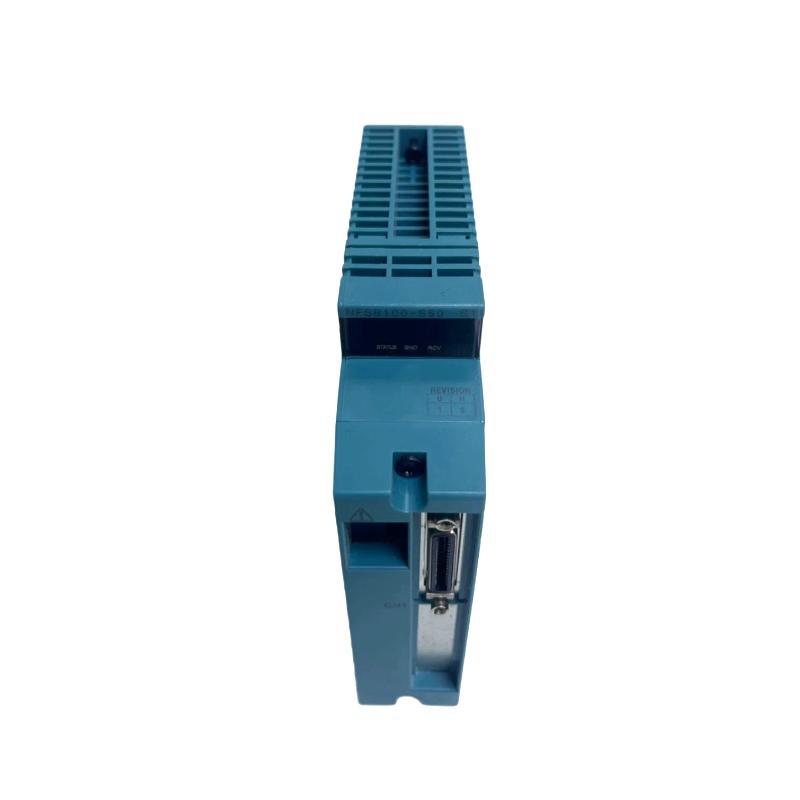

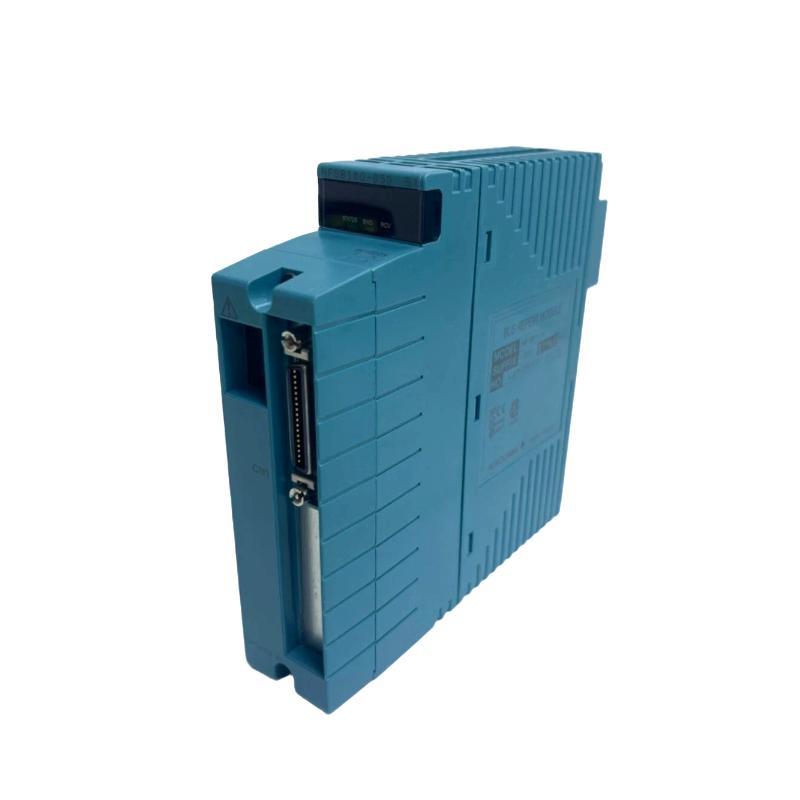

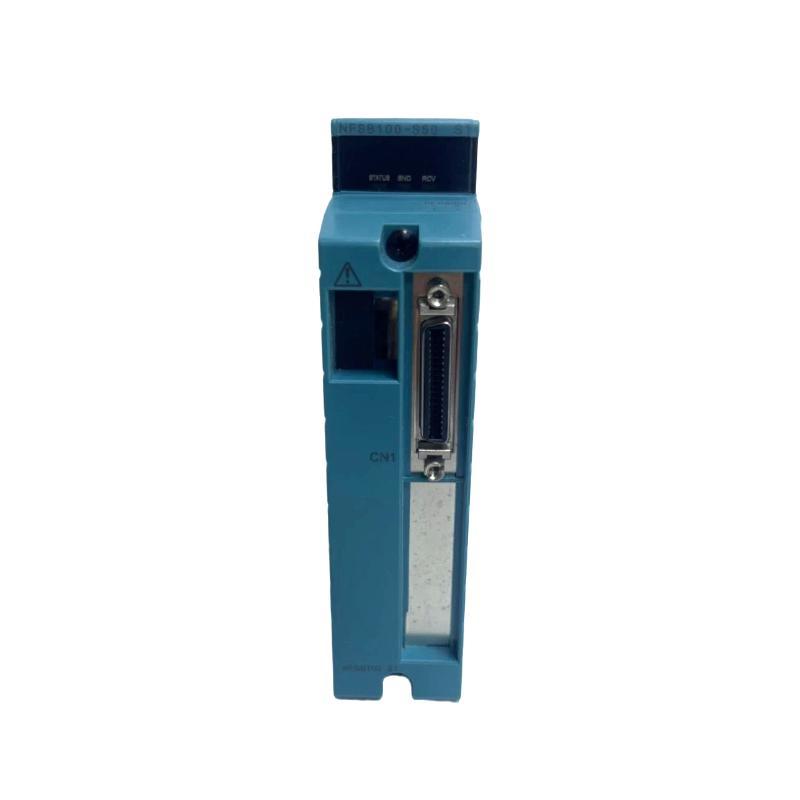

Yokogawa NFSB100-S50/SBT02 Bus Repeater Module

Overview

The Yokogawa NFSB100-S50/SBT02 Bus Repeater Module is an industrial communication device designed to enhance fieldbus network performance by extending communication distance and improving signal stability. It is widely used in distributed control systems where reliable data transmission between control equipment and field devices is required.

General Information

Part Number: NFSB100-S50/SBT02

Brand: Yokogawa

Country of Origin: Japan

Series: NFSB100

Type: Bus Repeater Module

Application: Fieldbus network expansion, industrial communication, and control system integration

Function: Signal amplification, communication regeneration, and network segment extension

Installation: Control cabinet or system rack mounting

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Approx. 5 W

Power Input: System power supply connection

Protection Features: Electrical noise protection and stable power operation

Status Indicators: LED indicators for power, communication, and module status

Communication & Interface

Communication Interface: Fieldbus communication interface

Network Support: Compatible with Yokogawa industrial control communication systems

Repeater Function: Extends bus communication distance and improves signal quality

Diagnostics: Communication status monitoring, fault indication, and network diagnostics

Connection Type: Industrial fieldbus terminals

Environmental

Operating Temperature: -20 to +70 °C

Storage Temperature: -30 to +70 °C

Humidity: 10% to 90% RH, non-condensing

Protection Rating: IP20

Installation Environment: Industrial control cabinets and automation equipment

Dimensions & Weight

Dimensions (H × W × D): 130 × 142.5 × 32.8 mm

Weight: 0.3 kg
