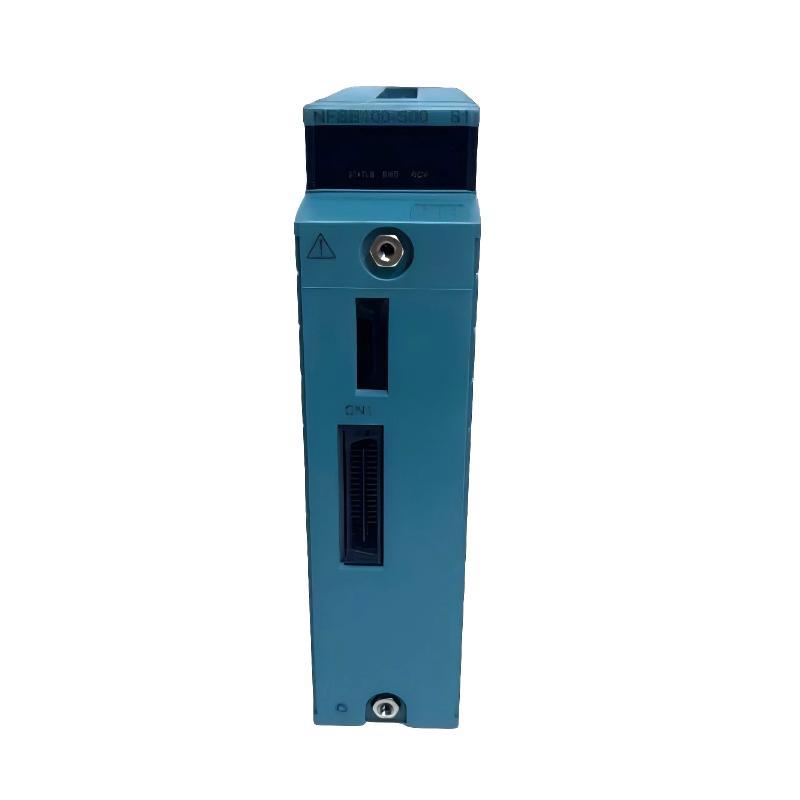

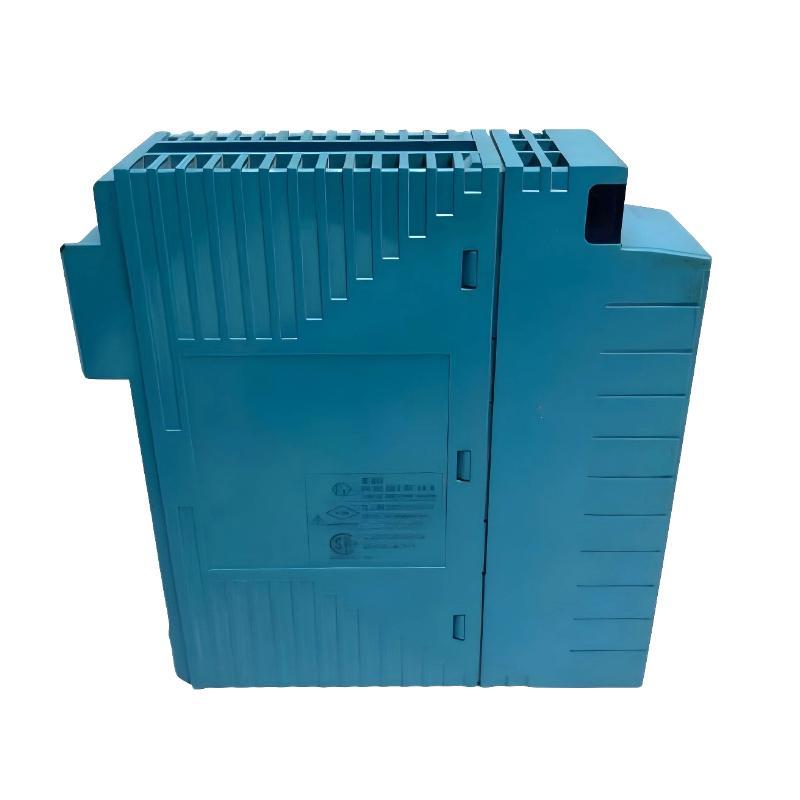

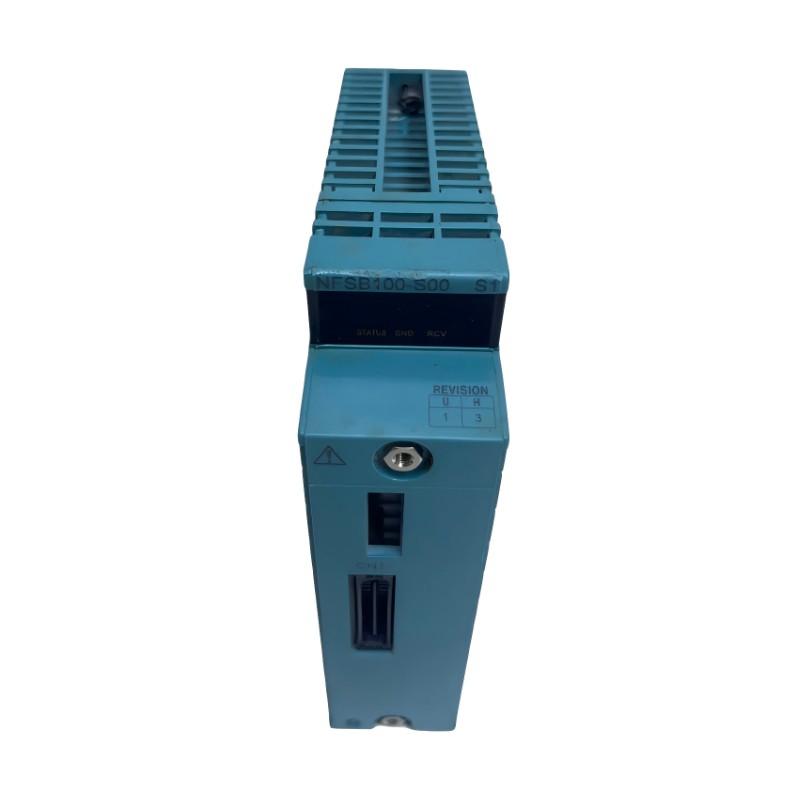

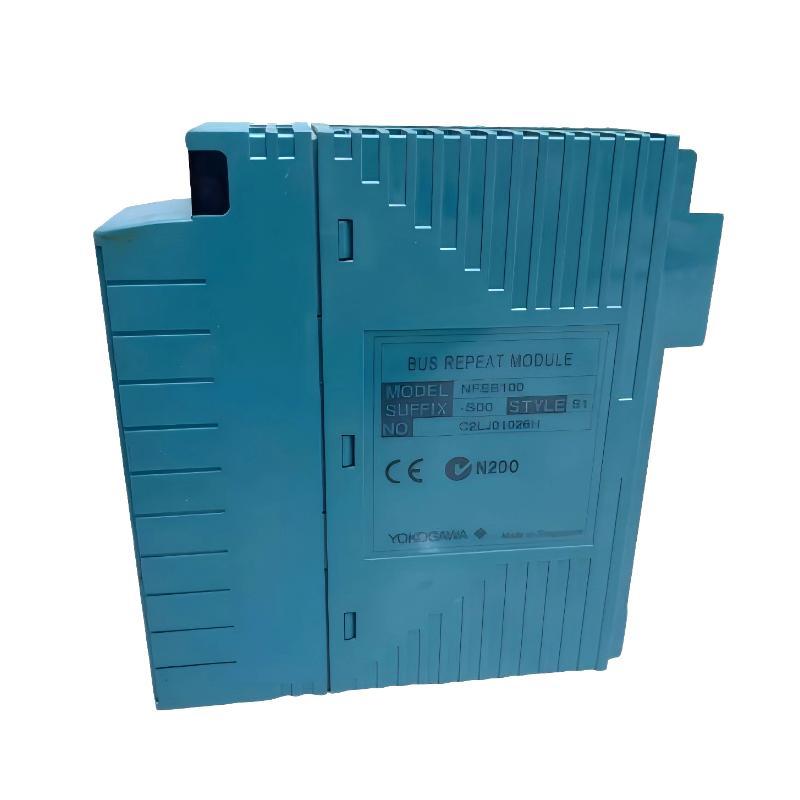

Yokogawa NFSB100-S00/SBT01 SB Bus Repeater Module

Overview

The Yokogawa NFSB100-S00/SBT01 SB Bus Repeater Module is an industrial communication module designed to extend and improve SB Bus network communication within Yokogawa control systems. It regenerates communication signals between connected modules, helping maintain stable data transmission and reliable system operation.

The module supports distributed control system expansion and provides enhanced communication reliability for industrial automation applications.

General Information

Part Number: NFSB100-S00/SBT01

Brand: Yokogawa

Country of Origin: Japan

Series: NFSB Communication Series

Type: SB Bus Repeater Module

Application: SB Bus network extension and signal regeneration

Mounting: Control system rack installation

Compatible Systems: Yokogawa distributed control systems

Function: Extends SB Bus communication distance and improves signal stability

Technology: Industrial bus signal repeater technology

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low power consumption design

Power Input: Supplied through system backplane

Protection Features: Power monitoring and communication fault protection

Status Indicators: LED indicators for power, communication, and module status

Communication & Interface

Communication Interface: SB Bus interface

Network Function: Bus signal regeneration and communication extension

Data Transfer: Digital communication signal transmission

Connection Method: System backplane and SB Bus connectors

Diagnostics: Communication status monitoring, error detection, and alarm reporting

Network Support: Distributed control module communication

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −20 to +70 °C

Humidity: 10 to 90% RH, non-condensing

Installation Environment: Industrial control cabinet environment

Protection Rating: Suitable for standard automation system enclosures

Cooling Method: Natural air cooling

Dimensions & Weight

Dimensions (L × W × H): 130 × 142.5 × 32.8 mm

Weight: 0.3 kg

Reliable Connection – Keep Your Control Networks Operating Smoothly!
