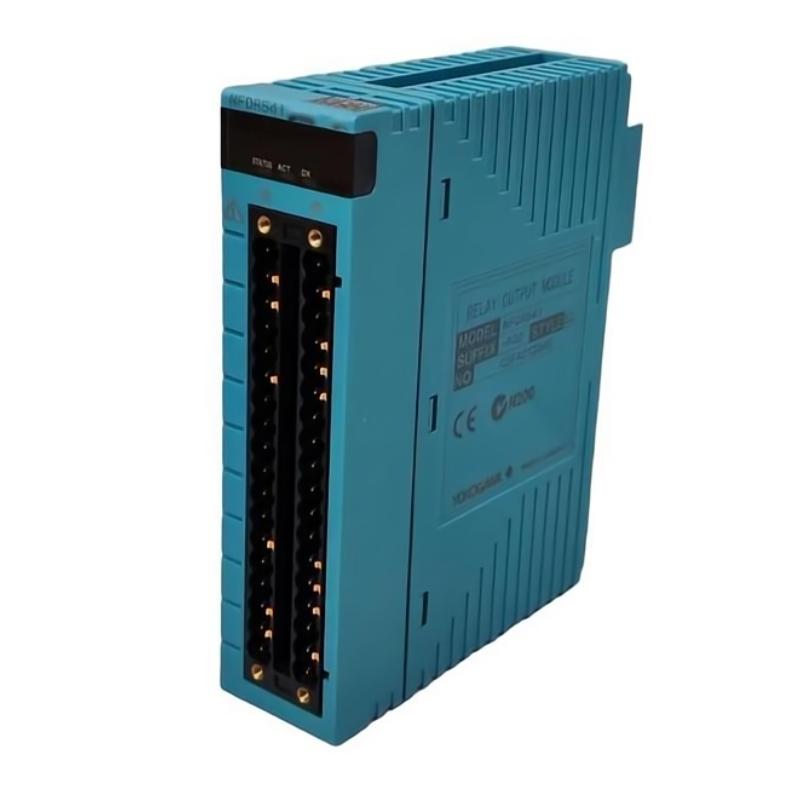

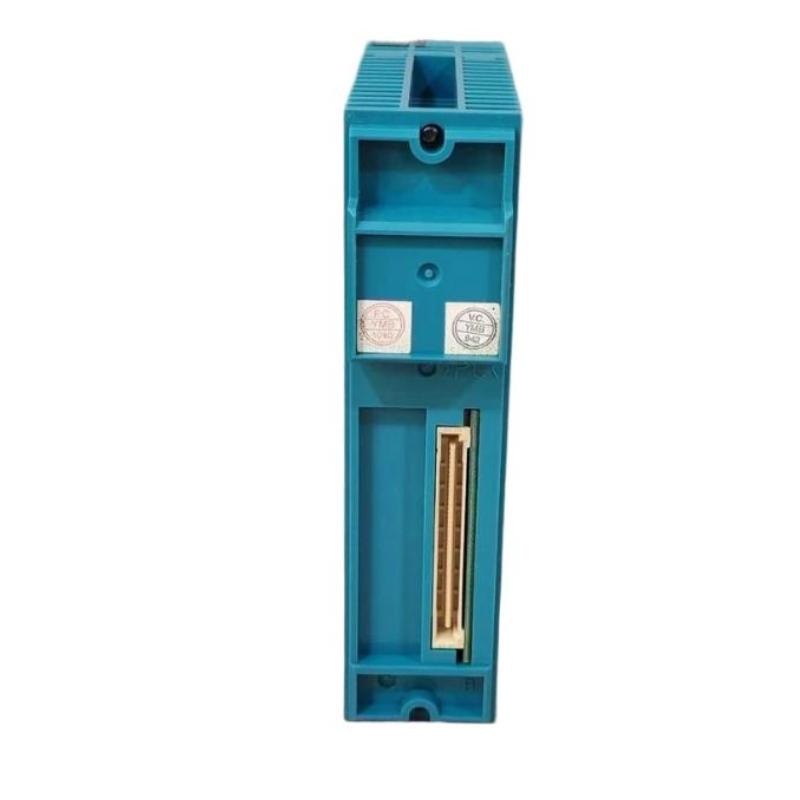

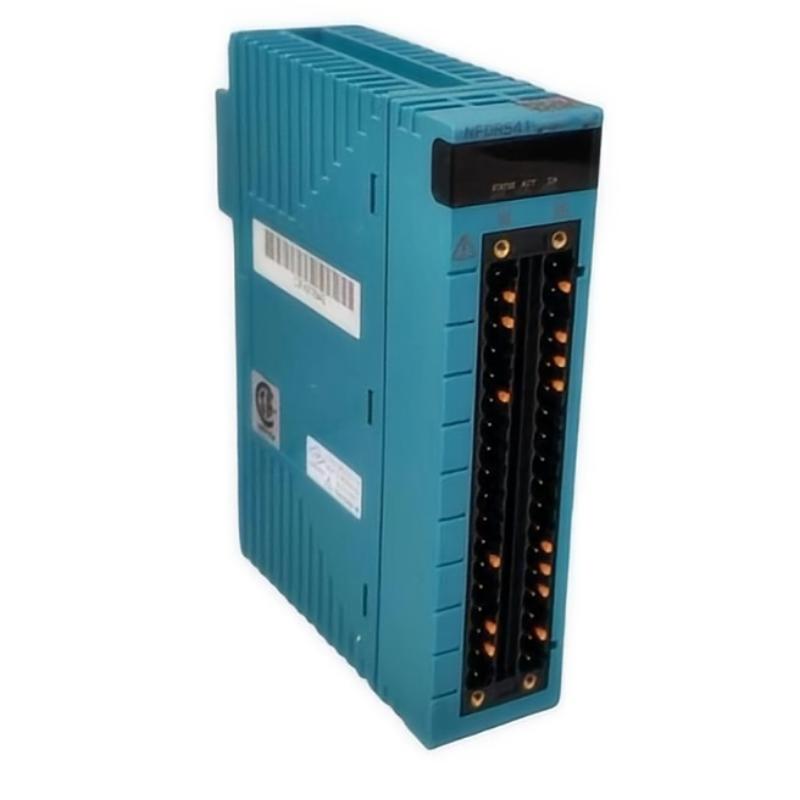

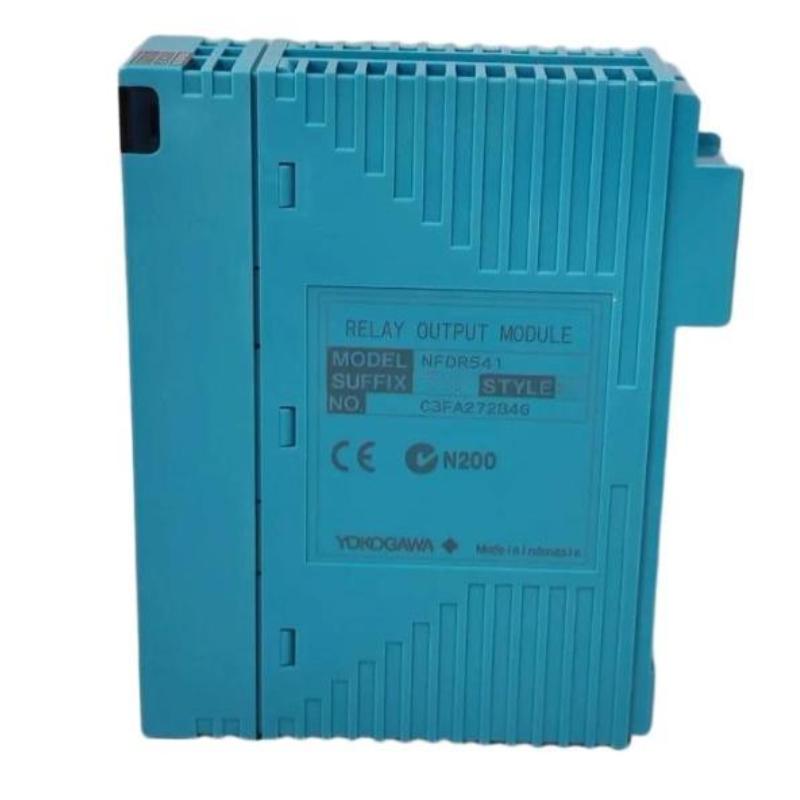

Yokogawa NFDR541 Relay Output Module

Overview

The Yokogawa NFDR541 Relay Output Module is a digital output module designed for industrial control systems. It provides reliable relay switching functions for controlling external devices and supports stable signal transmission in process automation applications.

General Information

Part Number: NFDR541

Manufacturer: Yokogawa

Brand: Yokogawa

Country of Origin: Japan

Series: NFDR

Type: Relay Output Module

Function: Digital relay output control

Output Type: Relay contact output

Application: Industrial process control and automation systems

Installation Method: Control system rack mounting

Module Design: Compact I/O interface module

Status Indicators: LED indicators for module and channel status

Power Specifications

Power Supply: Supplied through system backplane

Rated Voltage: System dependent

Output Type: Relay contact switching output

Contact Rating: Suitable for industrial control signal switching

Power Consumption: Low power operation

Protection Functions: Internal circuit protection

Communication & Interface

Communication Interface: System backplane interface

Output Channels: Relay output channels

Signal Type: Digital switching signals

Connection Type: Terminal block interface

Control Function: Transfers controller commands to external field devices

Diagnostics: Module status monitoring and output condition indication

Environmental

Operating Temperature: 0 to 55 °C

Storage Temperature: -20 to 70 °C

Humidity: Up to 90% RH, non-condensing

Installation Environment: Industrial control cabinet environment

Protection Rating: Standard rack-mounted module protection

Dimensions & Weight

Dimensions (H × W × D): 130 × 111.5 × 32.8 mm

Weight: Approx. 0.3 kg
