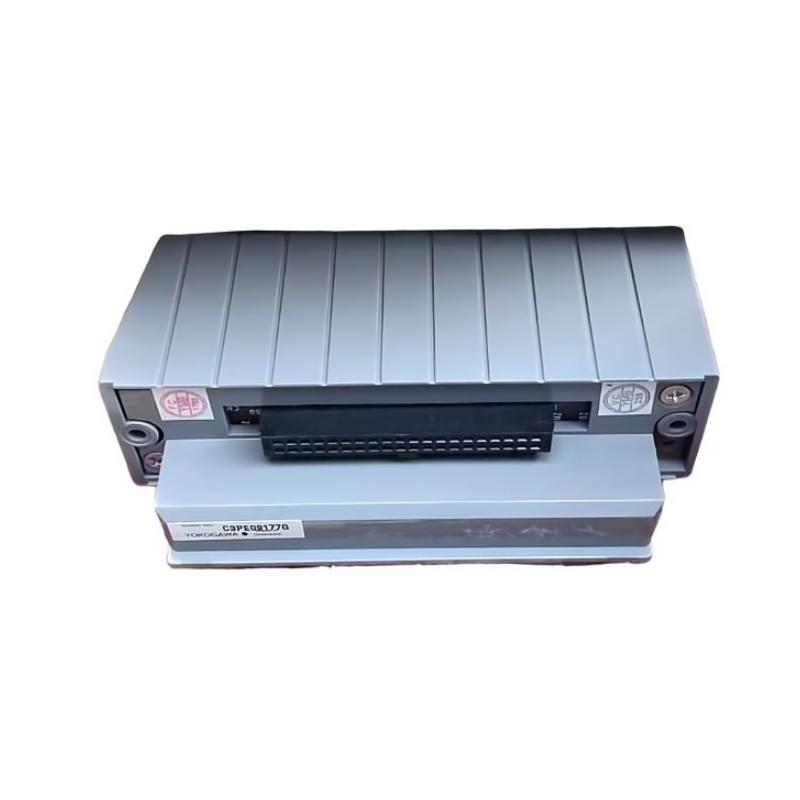

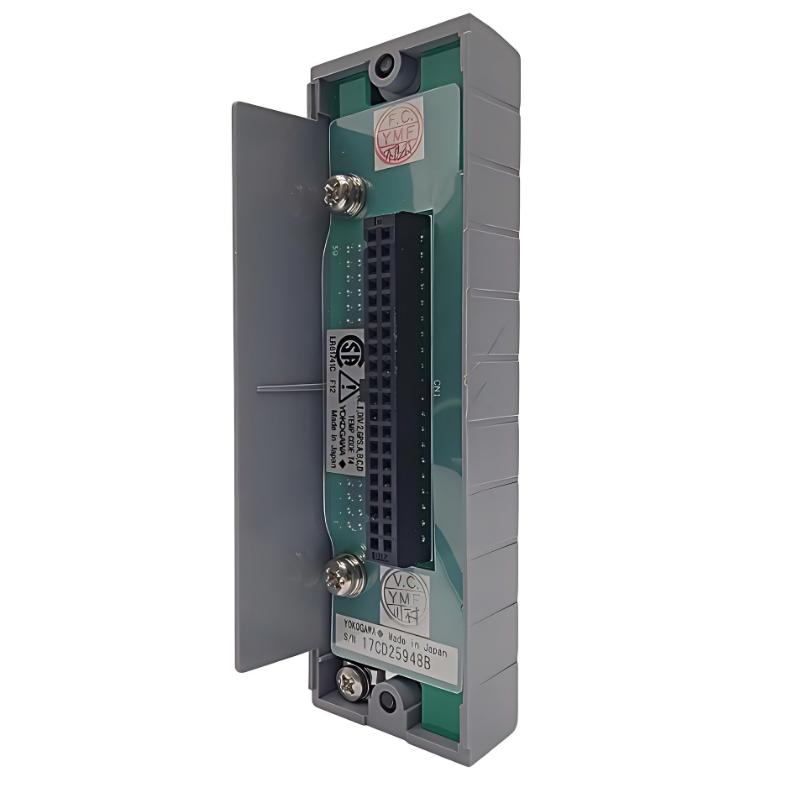

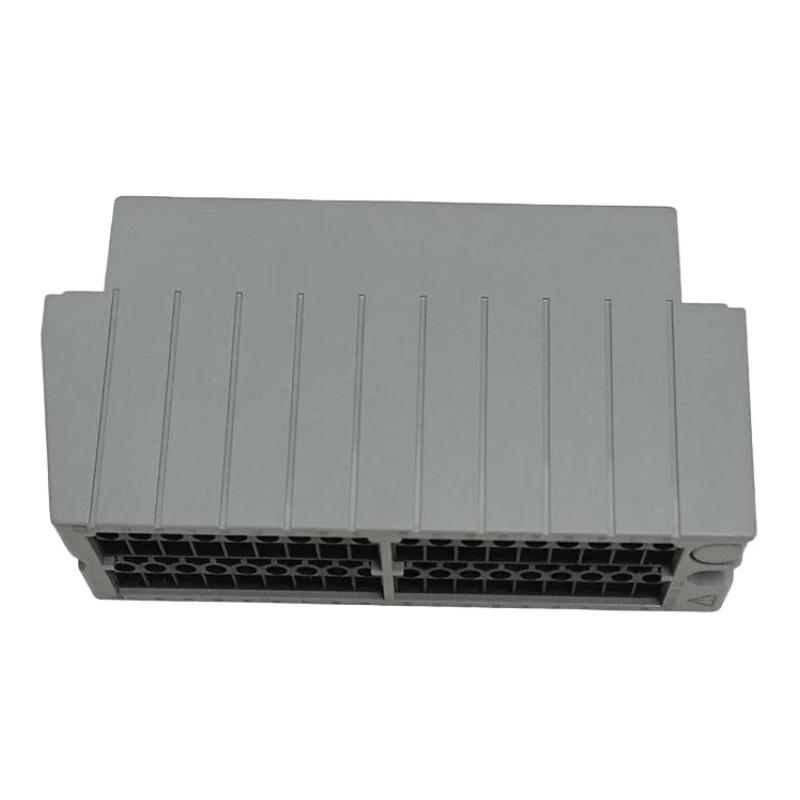

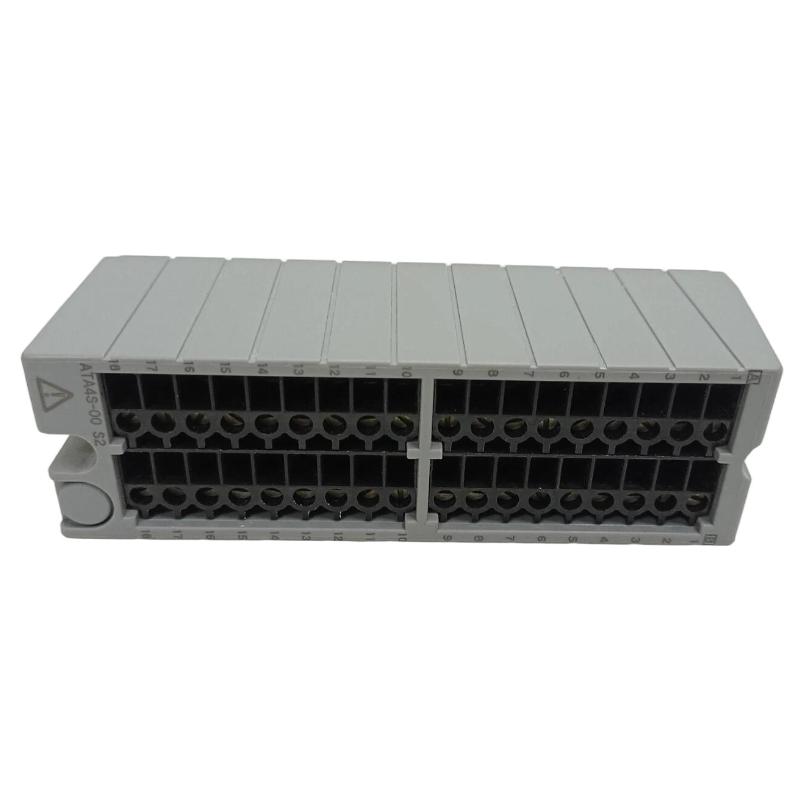

Yokogawa ATA4S-00 S2 Pressure Clamp Terminal

Overview

The Yokogawa ATA4S-00 S2 is a precision pressure clamp terminal designed for industrial process control systems. It provides accurate signal acquisition from pressure sensors and ensures reliable data transfer to controllers for efficient monitoring and control.

General Information

Part Number: ATA4S-00 S2

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Series: ATA (Analog Terminal Assembly)

Type: Pressure Clamp Terminal

Mounting: Panel or DIN rail installation

Technology: Pressure signal acquisition, analog signal processing, system integration

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 4 W

Input: Powered from system supply

Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for power and signal status

Communication & Interface

Ports: Supports standard industrial communication protocols

Terminal Role: Captures pressure signals from field devices and transmits them to controllers

Diagnostics: Signal monitoring, fault detection, and status reporting

Operator Interface: LED indicators

Reset Features: Supports soft reset

I/O & Channels

Input Channels: Single pressure channel

External Load Support: Not applicable; used solely for signal acquisition

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 114 × 32.6 × 60.5 mm

Weight: 0.2 kg
