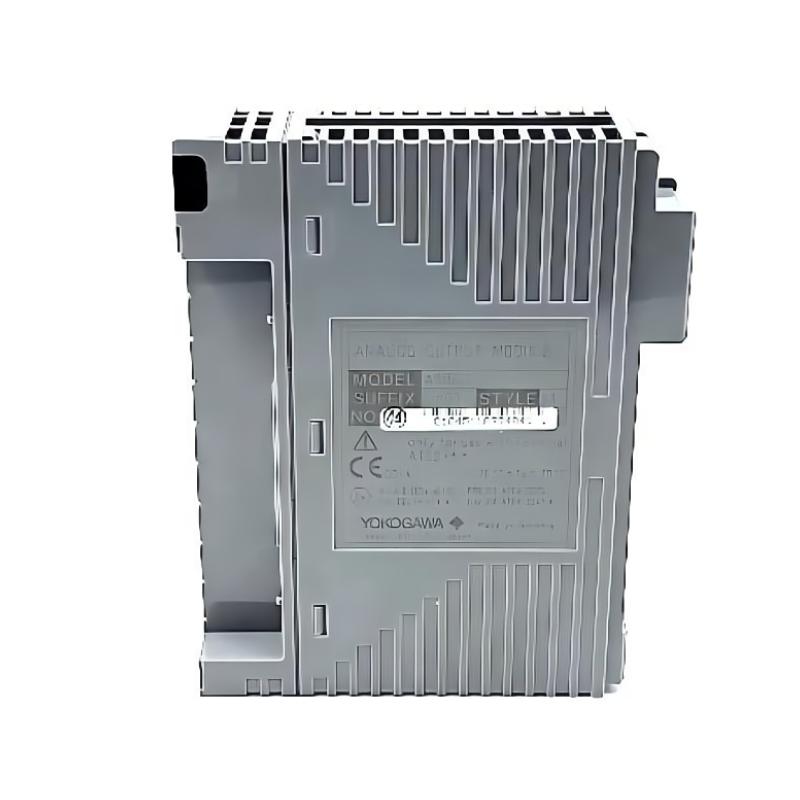

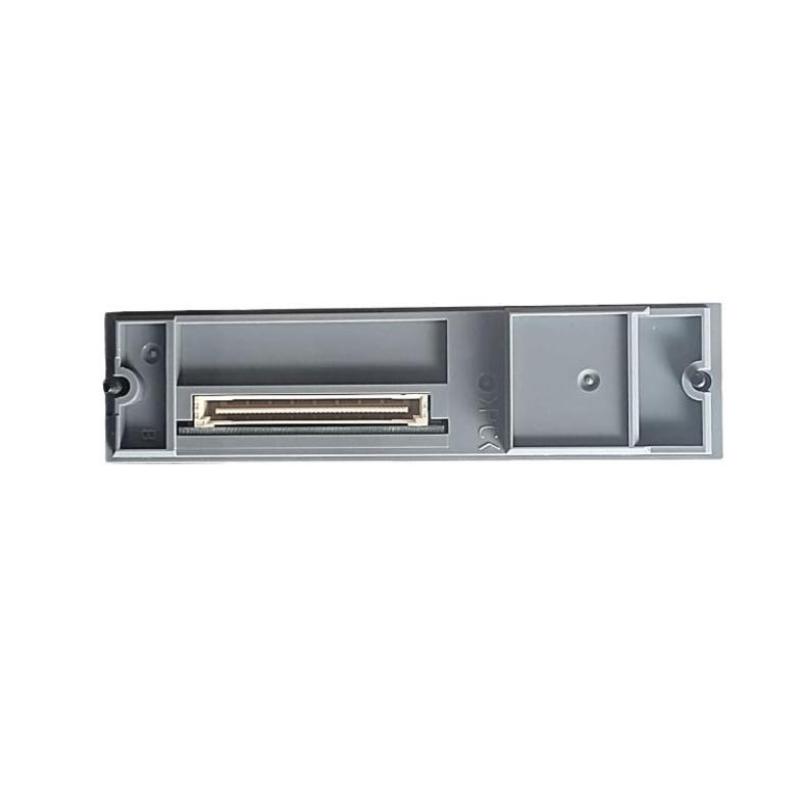

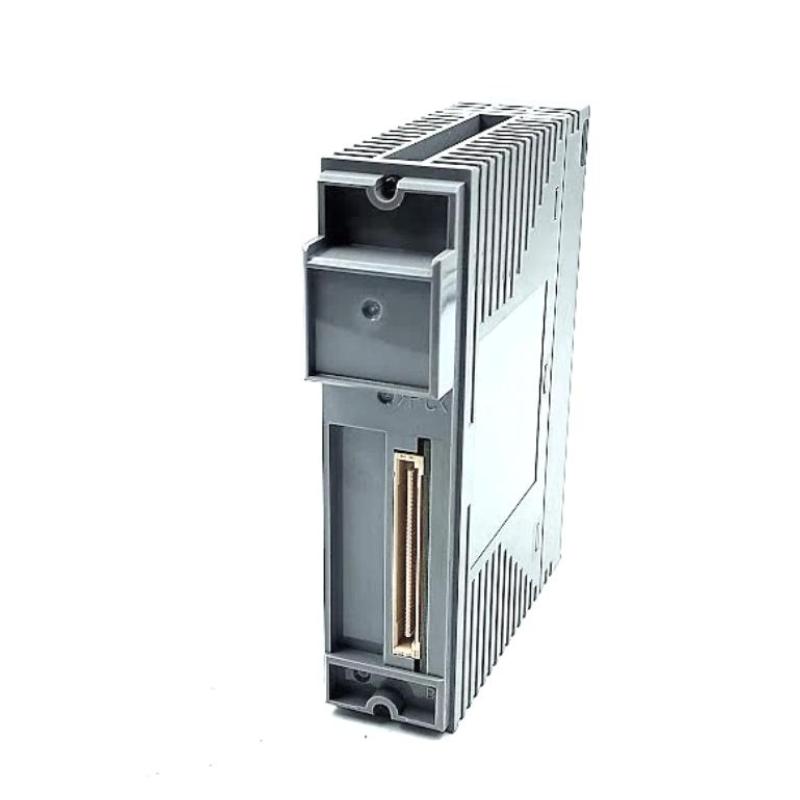

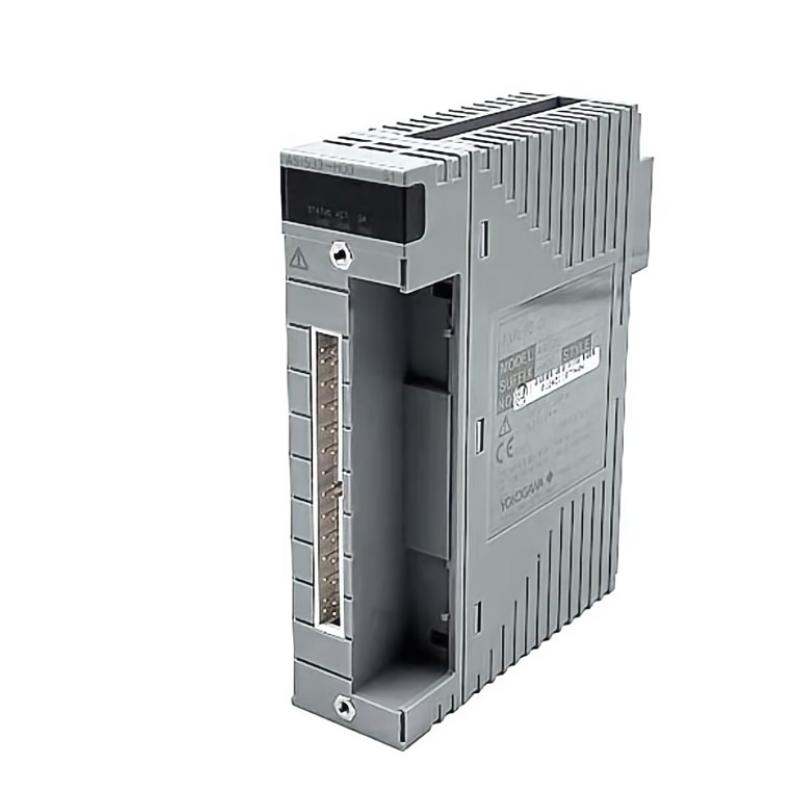

Yokogawa ASI533-S00/SS3S0 Analog Output Module

Overview

The Yokogawa ASI533-S00/SS3S0 is a reliable analog output module for industrial automation and process control systems. It delivers precise digital-to-analog conversion, providing stable signals for controlling field devices such as valves, actuators, and drives.

General Information

Part Number: ASI533-S00/SS3S0

Manufacturer: Yokogawa

Brand: Yokogawa Electric Corporation

Country of Origin: Japan

Series: CENTUM / STARDOM compatible I/O modules

Type: Analog Output Module

Mounting: Rack-mounted within control system chassis

Technology: High-resolution D/A conversion with built-in diagnostics

Power Specifications

Supply Voltage: 5 V DC (via backplane)

Power Consumption: ≤ 5 W

Output Power Source: Supplied through system backplane

Protection: Overload and internal circuit protection

Indicators: LED indicators for operational and fault status

Communication & Interface

Internal Communication: Backplane bus interface with controller

Signal Type: Analog output (current / voltage)

Output Range: Typically 4–20 mA or 1–5 V

Isolation: Channel-to-channel and system isolation

Diagnostics: Continuous monitoring and fault detection

Configuration: Software configurable via control system

Environmental

Operating Temperature: −20 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Suitable for industrial environments

Protection Rating: IP20 (installed in control cabinet)

Dimensions & Weight

Dimensions (L × W × H): 107.5 × 130 × 32.8 mm

Weight: 0.3 kg
