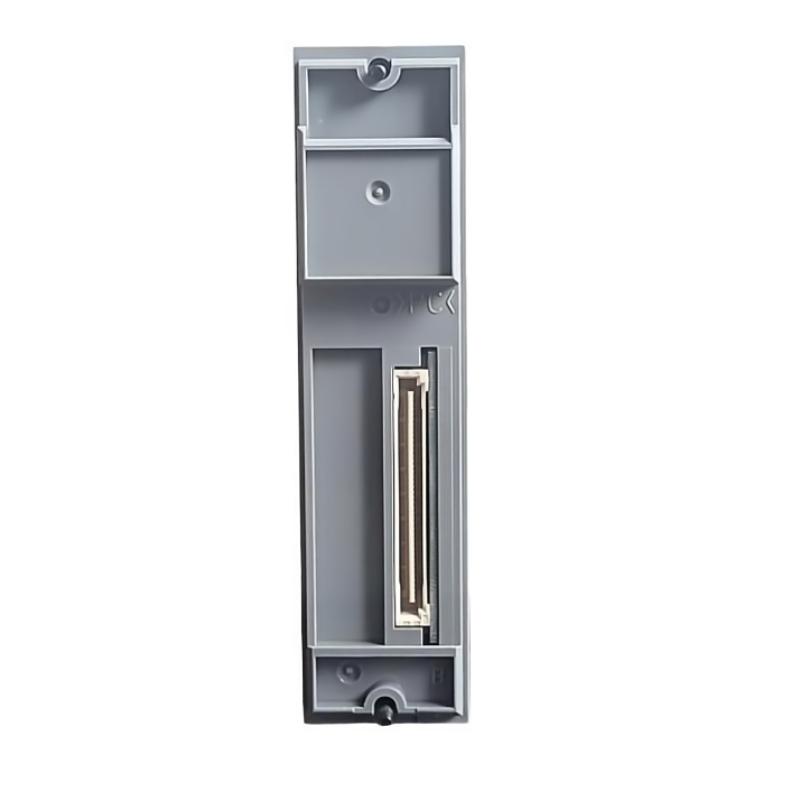

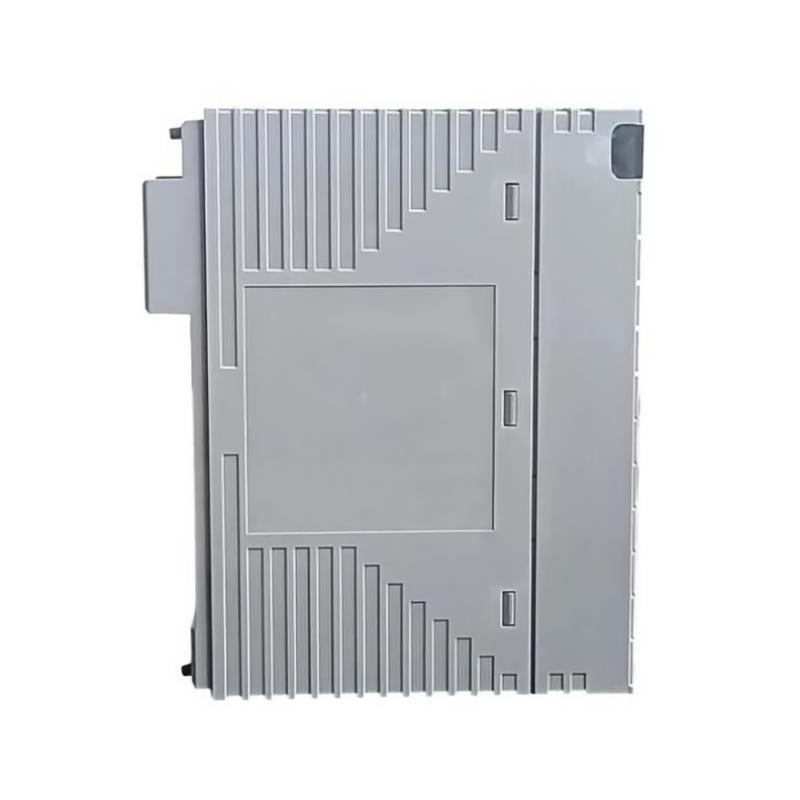

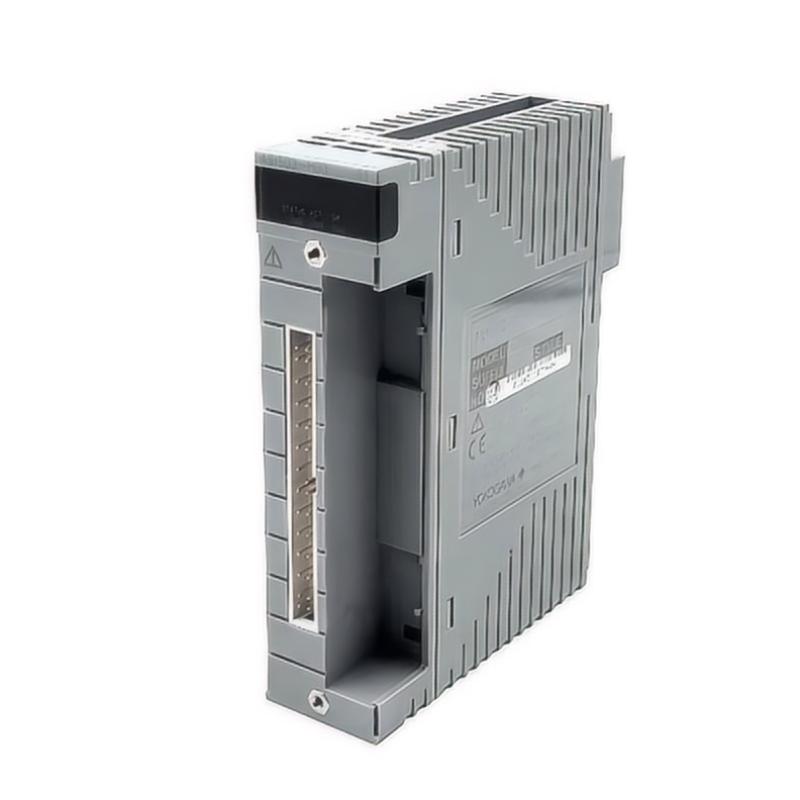

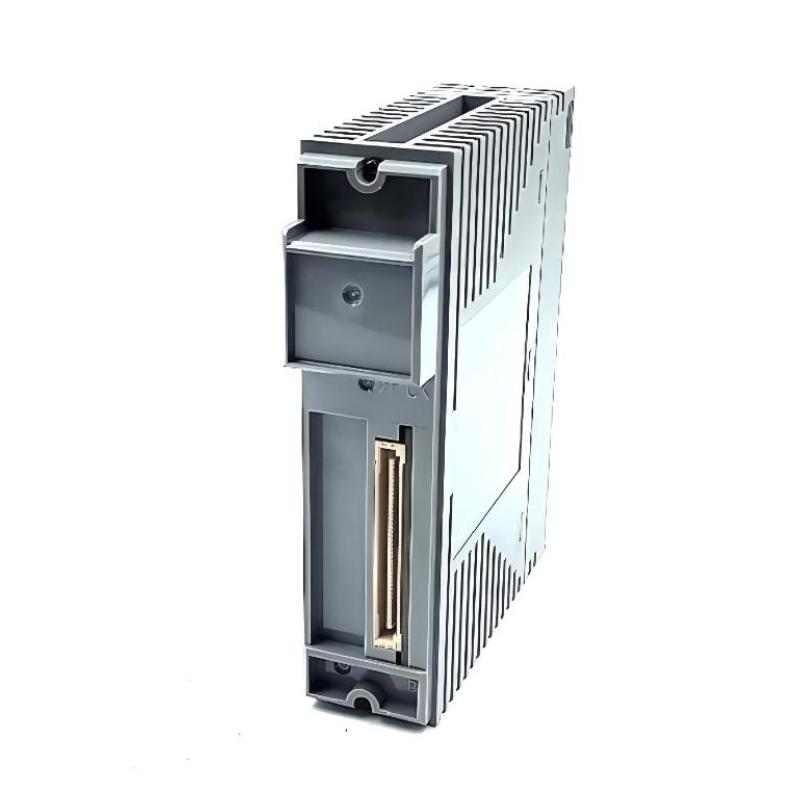

Yokogawa ASI533-S00 Analog Output Module

Overview

The Yokogawa ASI533-S00 is a dependable analog output module designed for industrial automation and process control systems. It provides accurate and stable analog signal outputs, ensuring precise control of field devices such as valves, drives, and actuators.

General Information

Part Number: ASI533-S00

Manufacturer: Yokogawa

Brand: Yokogawa Electric Corporation

Country of Origin: Japan

Series: CENTUM / STARDOM compatible I/O modules

Type: Analog Output Module

Mounting: Rack-mounted within control system chassis

Technology: High-resolution digital-to-analog conversion with diagnostics

Power Specifications

Supply Voltage: 5 V DC (via backplane)

Power Consumption: ≤ 5 W

Output Power Source: Provided through system backplane

Protection: Overload and internal circuit protection

Indicators: LED indicators for module status and fault conditions

Communication & Interface

Internal Communication: Backplane bus interface with controller

Signal Type: Analog output (current / voltage)

Output Range: Typically 4–20 mA or 1–5 V

Isolation: Channel-to-channel and system isolation

Diagnostics: Real-time monitoring and fault detection

Configuration: Software configurable via control system

Environmental

Operating Temperature: −20 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Designed for industrial environments

Protection Rating: IP20 (installed in control cabinet)

Dimensions & Weight

Dimensions (L × W × H): 107.5 × 130 × 32.8 mm

Weight: 0.3 kg
