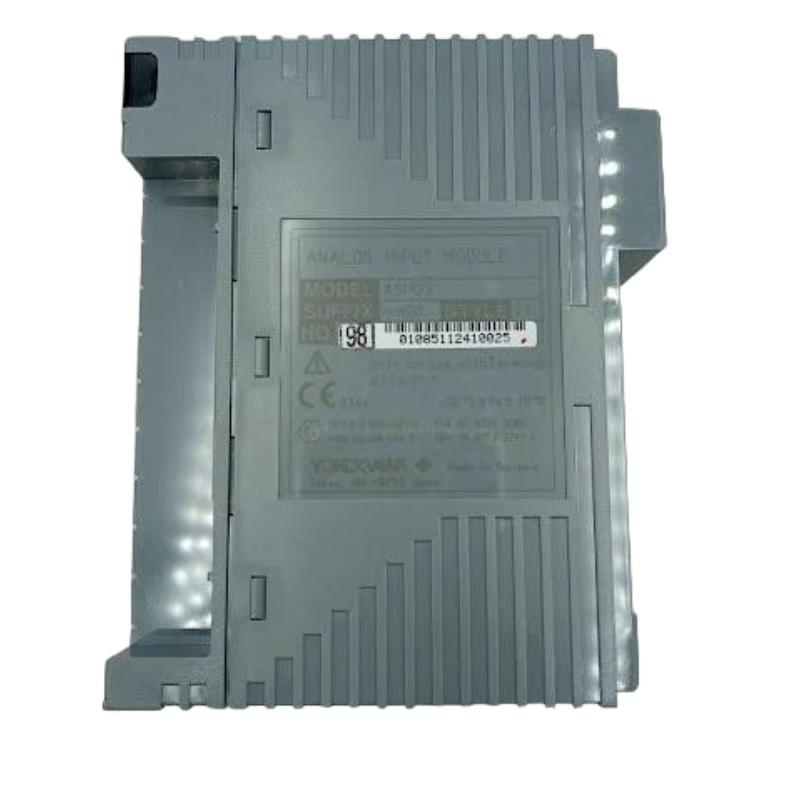

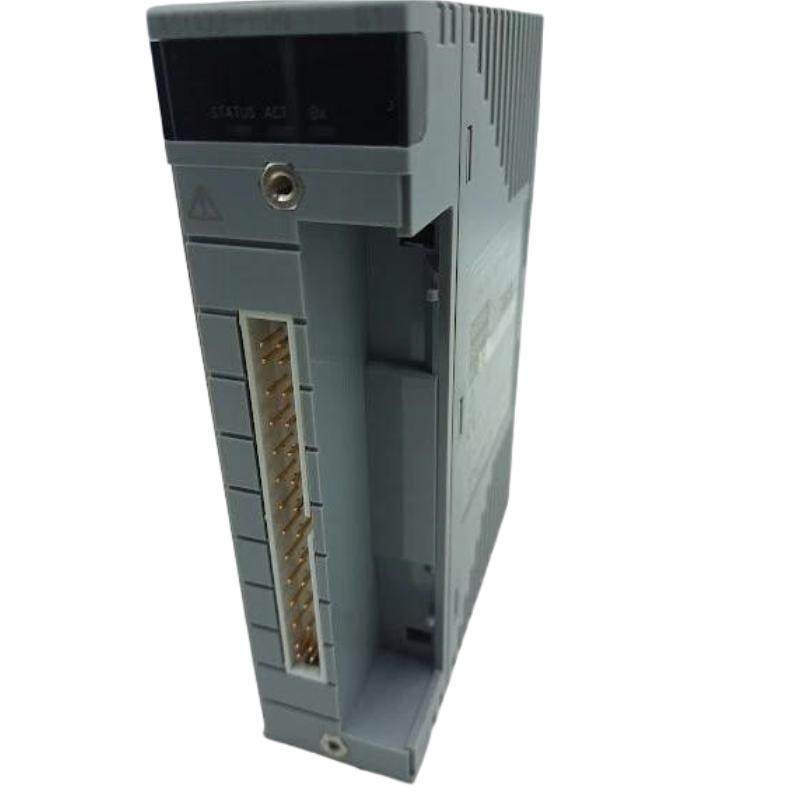

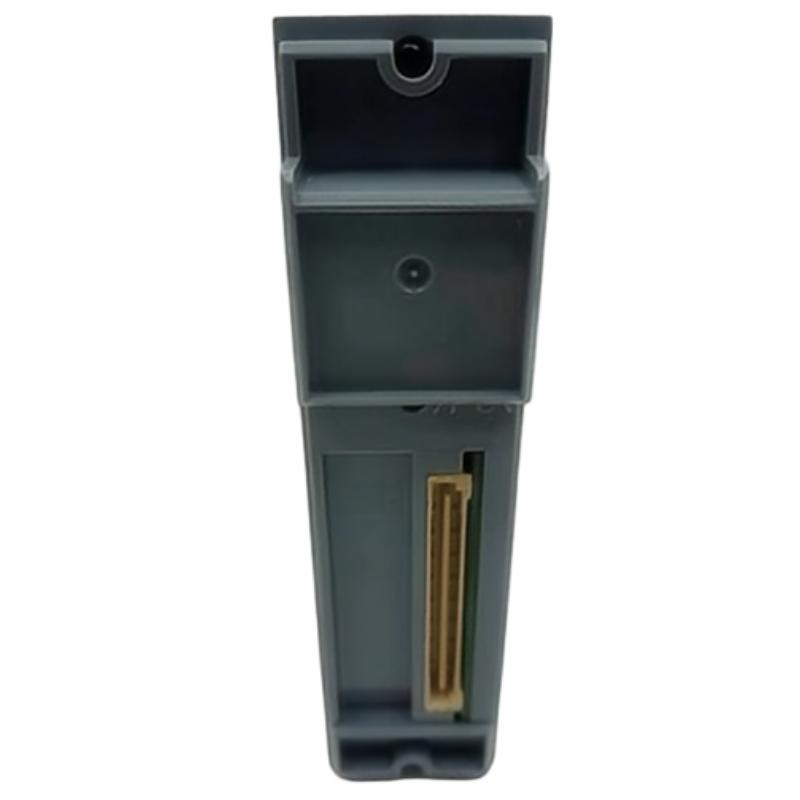

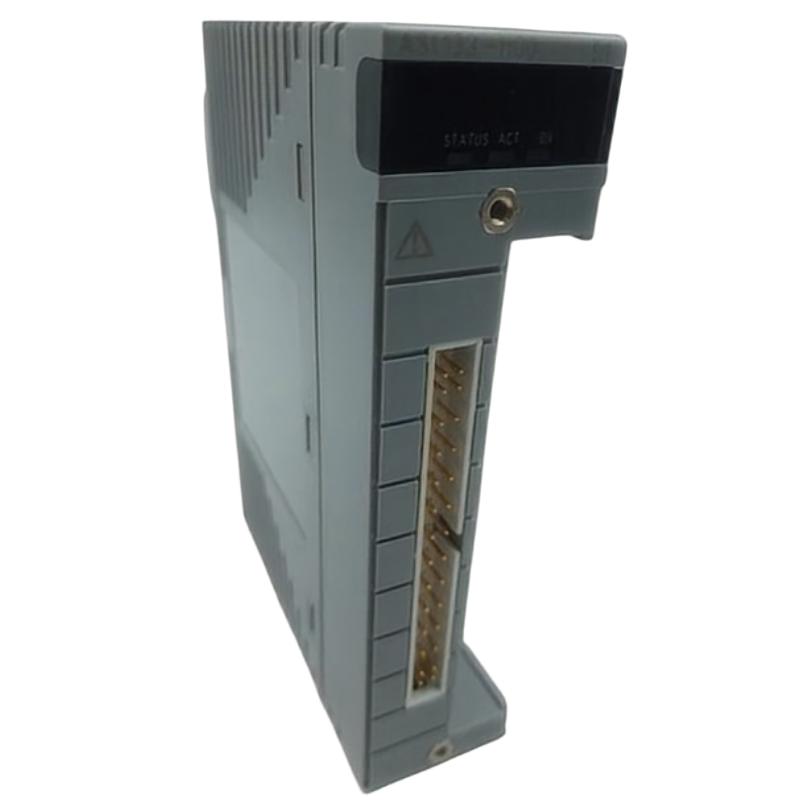

Yokogawa ASI133-H00 Analog Input Module

Overview

The Yokogawa ASI133-H00 is an analog input module designed for industrial automation and control systems. It provides precise acquisition of analog signals from field instruments, ensuring stable data conversion and reliable monitoring in process control applications.

General Information

Part Number: ASI133-H00

Manufacturer: Yokogawa

Brand: Yokogawa

Country of Origin: Japan

Series: Yokogawa I/O Module Series

Type: Analog Input Module

Mounting: Rack-mounted or control cabinet installation

Technology: High-resolution analog signal acquisition with advanced noise filtering

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Low module-level consumption

Input Signal Range: Typically 0–10 V or 4–20 mA (application dependent)

Protection: Input protection with electrical isolation and surge resistance

Indicators: LED indicators for channel status and module operation

Communication & Interface

System Interface: Backplane communication with controller

Input Channels: Multiple analog input channels

Signal Processing: High-precision analog-to-digital conversion

Diagnostics: Channel-level monitoring and fault detection

Operator Interface: Configured via engineering and control software

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for industrial control cabinet environments

Dimensions & Weight

Dimensions (L × W × H): 130 × 107.5 × 32.8 mm

Weight: 0.3 kg
