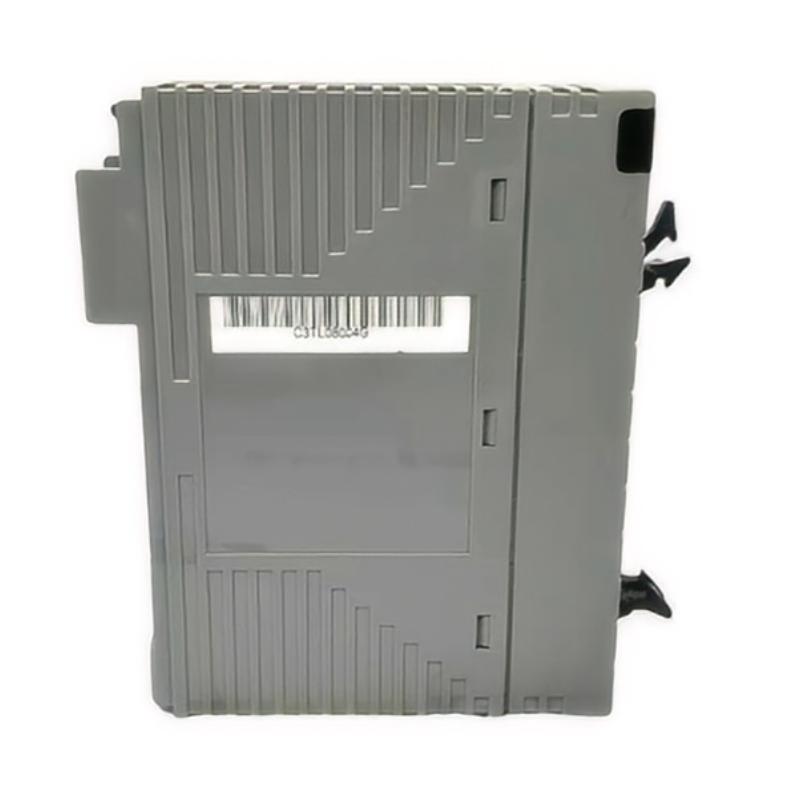

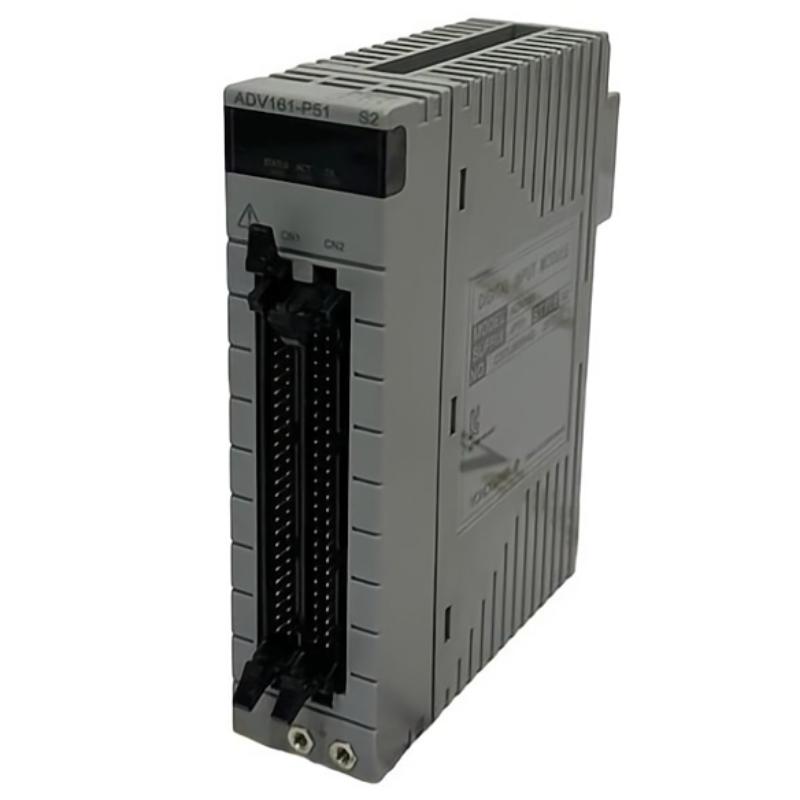

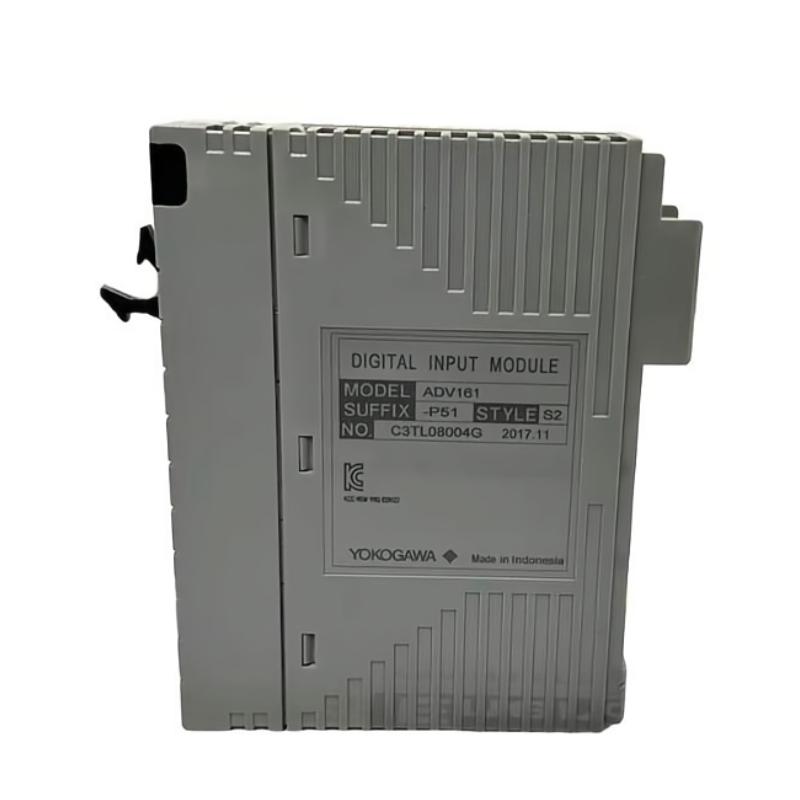

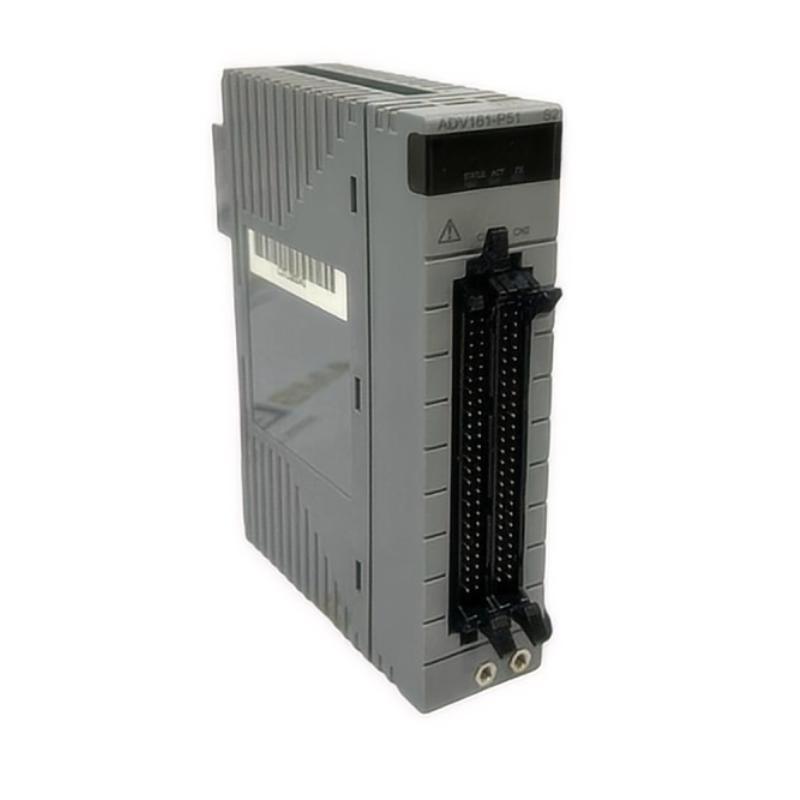

Yokogawa ADV161-P51 Numeric Input Module

Overview

The Yokogawa ADV161-P51 is a precision numeric input module engineered for Yokogawa’s DCS systems. It accurately converts analog numeric signals from field devices into digital data, enabling reliable monitoring and control of industrial processes. The module is designed for stable performance in demanding automation environments.

General Information

Part Number: ADV161-P51

Manufacturer: Yokogawa

Brand / Country of Origin: Yokogawa / Japan

Series: ADV (Advanced Digital Module)

Type: Numeric Input Module

Mounting: DIN rail or rack installation within control cabinets

Technology: Analog-to-digital conversion, signal filtering, and isolation

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input: Powered via backplane connection

Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for power status and module health

Communication & Interface

Input Channels: Multiple analog numeric inputs (configurable)

Signal Type: 4–20 mA, 0–10 V, or thermocouple inputs depending on configuration

Diagnostics: Input signal validation, fault detection, and channel status reporting

Operator Interface: LED indicators for each channel status

Reset Features: Supports both soft and hardware reset

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 90% RH, non-condensing

Protection Rating: IP20, suitable for standard industrial cabinets

Dimensions & Weight

Dimensions (L × W × H): 127.2 × 130 × 32.8 mm

Weight: 0.4 kg
