Overview

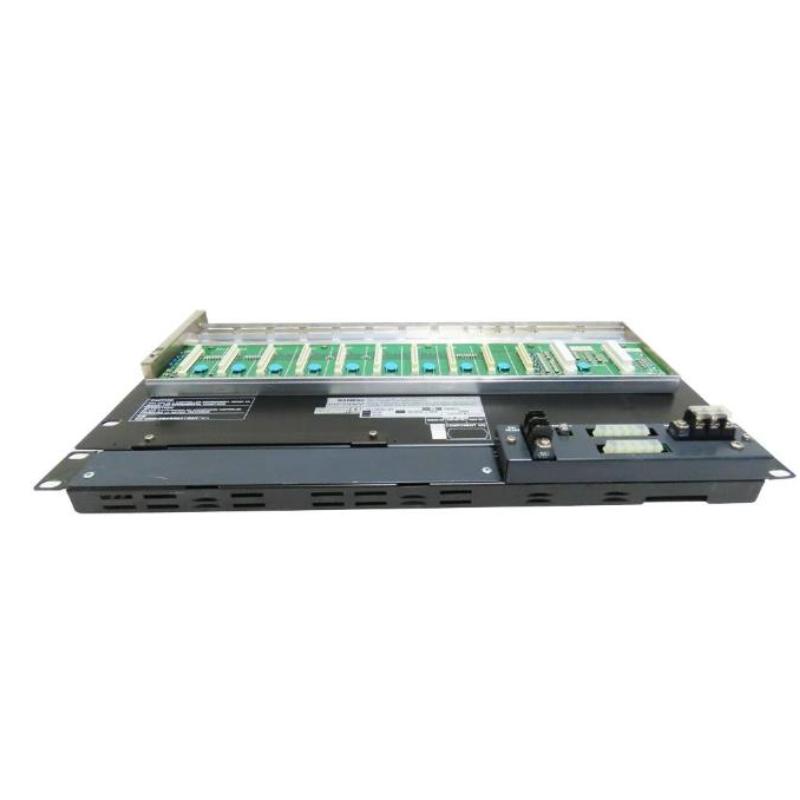

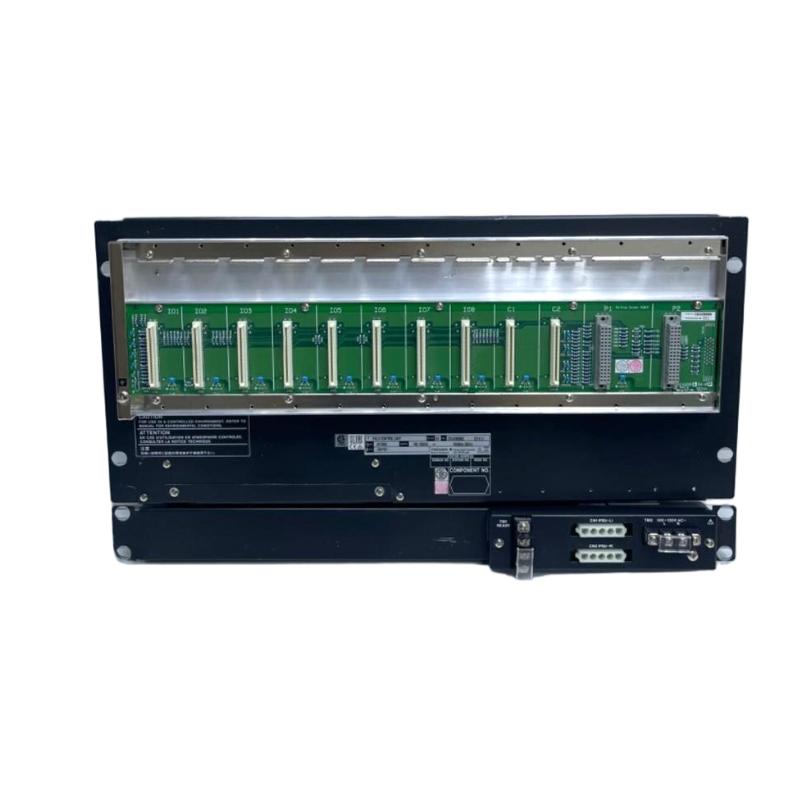

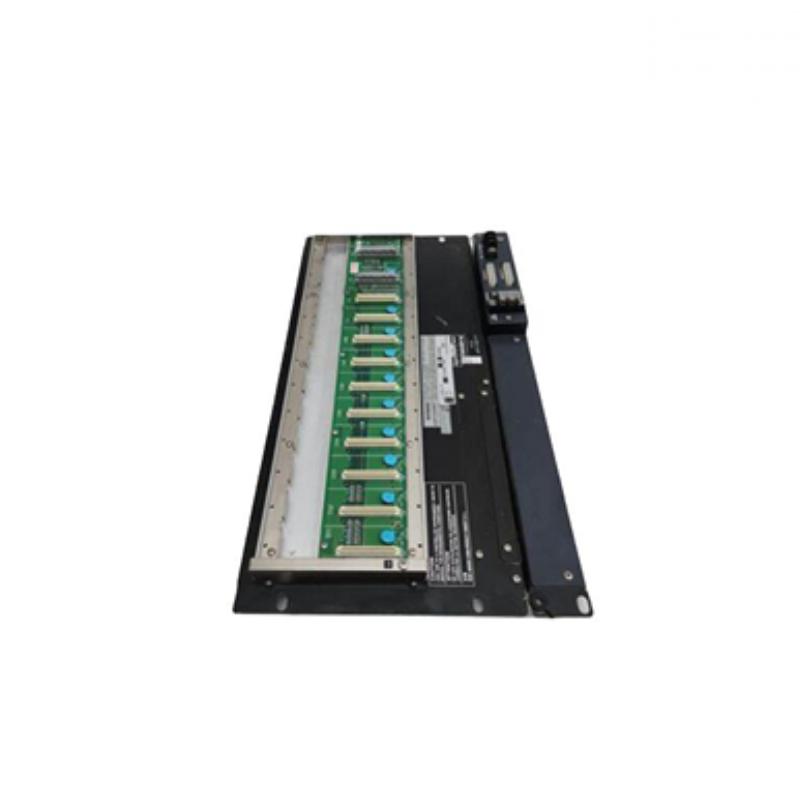

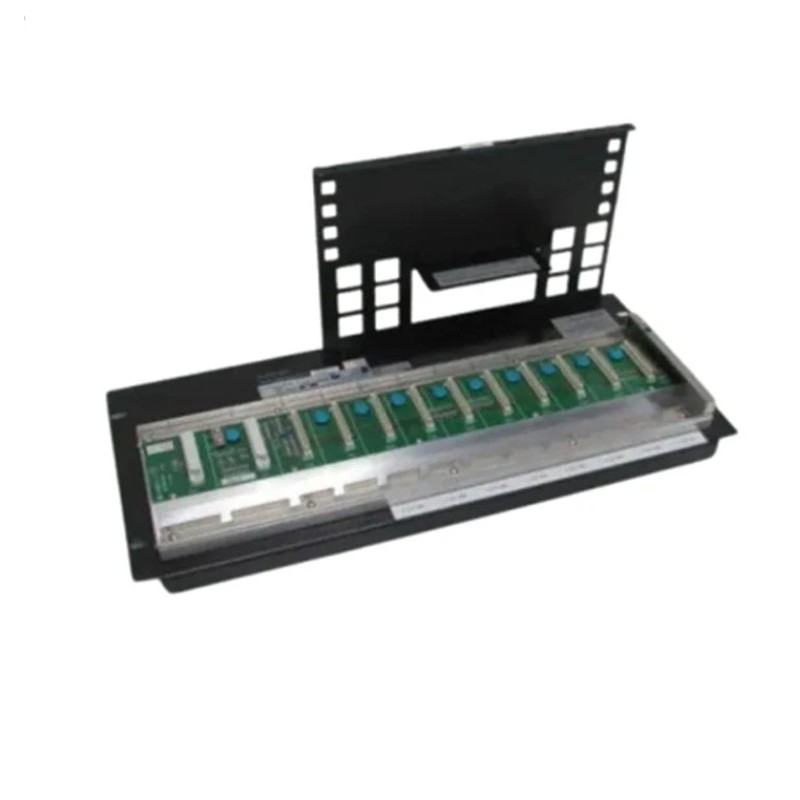

The Yokogawa AFV30D-A41262 is a robust I/O and signal-conditioning module designed for integration within Yokogawa automation systems. It provides reliable signal routing, internal bus communication, and stable processing performance required for critical industrial applications.
General Information
Part Number: AFV30D-A41262
Manufacturer: Yokogawa
Series: AFV30D
Type: Signal Conditioning / I/O Module
Mounting: Installed in a system rack or chassis
Technology: High-reliability bus interface and isolated circuit design
Power Specifications
Supply Voltage: Backplane-powered
Power Consumption: Low consumption, optimized for system efficiency
Input Source: System backplane
Protection: Integrated surge suppression and noise filtering
Indicators: LEDs for status and operational monitoring
Communication & Interface
System Interface: Yokogawa system communication bus
Functional Role: Transfers conditioned signals between controller and field points
Diagnostics: Self-checking, operational fault reporting
Operator Interface: LED indicators
Reset Features: Backplane or system-controlled reset
I/O & Channels
Channel Type: Signal conditioning and interface routing
Relay Channels: None
External Load Support: Not applicable
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial equipment rating
Dimensions & Weight
Dimensions (W × H × D): 207 × 265.9 × 482.6 mm
Weight: 8 kg
