Overview

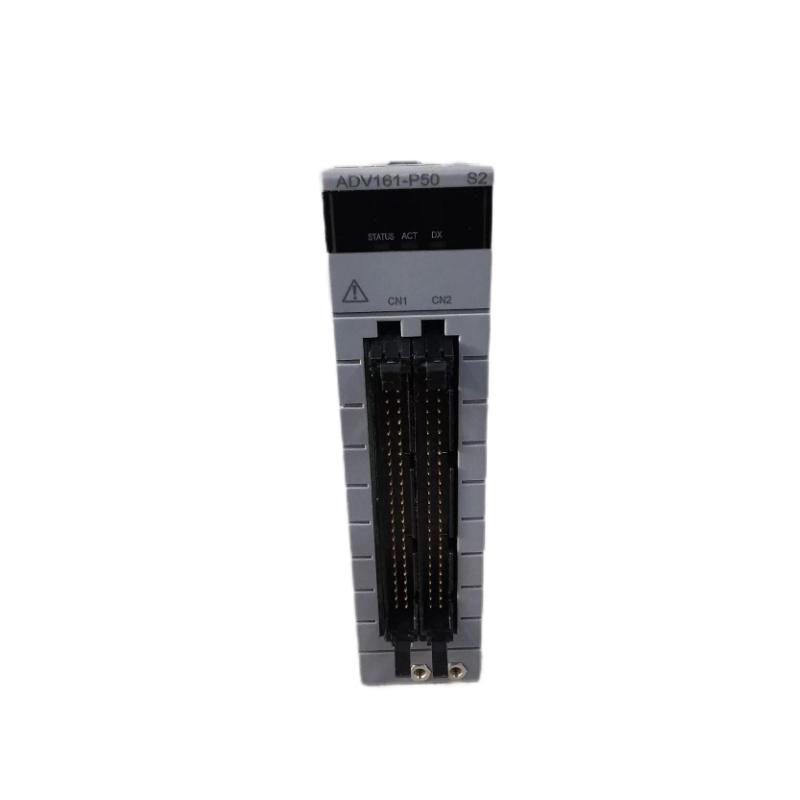

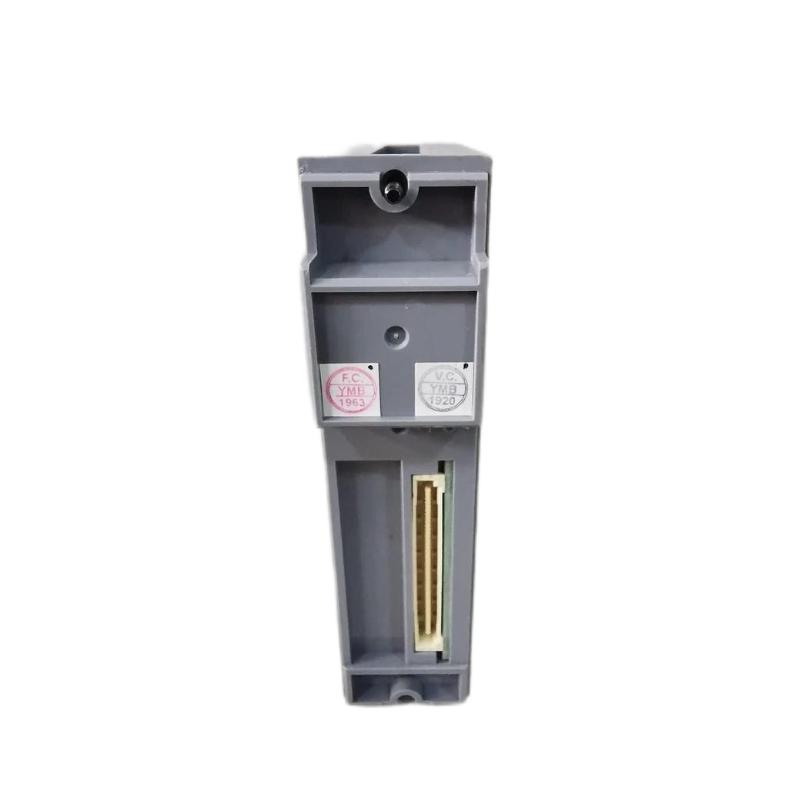

The Yokogawa ADV161-P50 is an analog input module designed for use in Yokogawa’s distributed control systems. It provides accurate acquisition and conditioning of analog signals, supporting stable and reliable process monitoring across industrial applications.
General Information
Part Number: ADV161-P50
Brand / Country of Origin: Yokogawa / Japan
Manufacturer: Yokogawa Electric Corporation
Series: ADV Series
Type: Analog Input Module
Mounting: Rack-mounted installation on standard I/O base
Function: Captures and processes analog input signals for real-time control
Power Specifications
Supply Voltage: Provided through system backplane
Power Consumption: Low power draw for efficient operation
Input Source: Internal Yokogawa I/O bus
Protection: Channel isolation and internal protection circuitry
Indicators: LED indicators for module and channel status
Communication & Interface
Interface Type: Yokogawa system communication bus
Input Type: Analog process signal inputs
Diagnostics: Module health monitoring, signal status checking, error detection
Operator Interface: Status LEDs for quick visual diagnostics
Environmental
Operating Temperature: Suitable for industrial control environments
Humidity: Up to 95% RH, non-condensing
Installation Environment: Control cabinet or protected enclosure
Protection Rating: Standard industrial electronics protection level
Dimensions & Weight
Dimensions (L × W × H): 130 × 119.9 × 32.8 mm
Weight: ~0.3 kg
