Overview

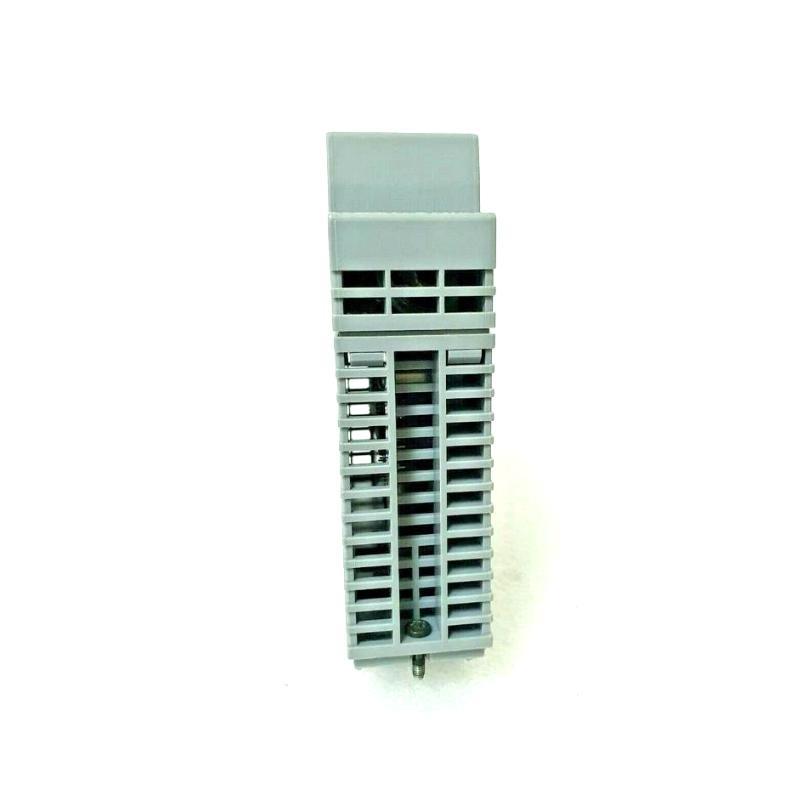

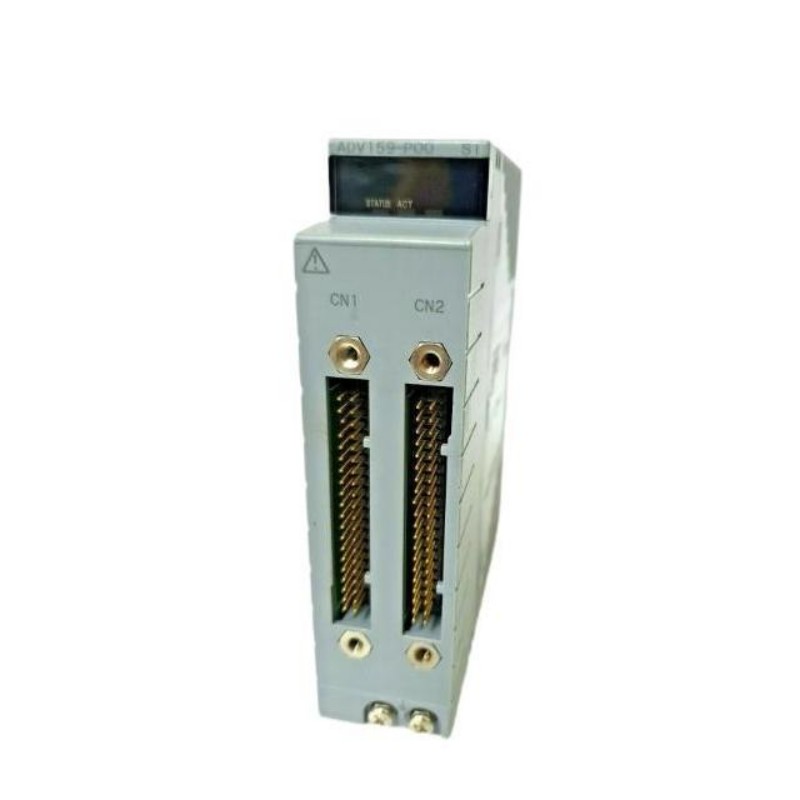

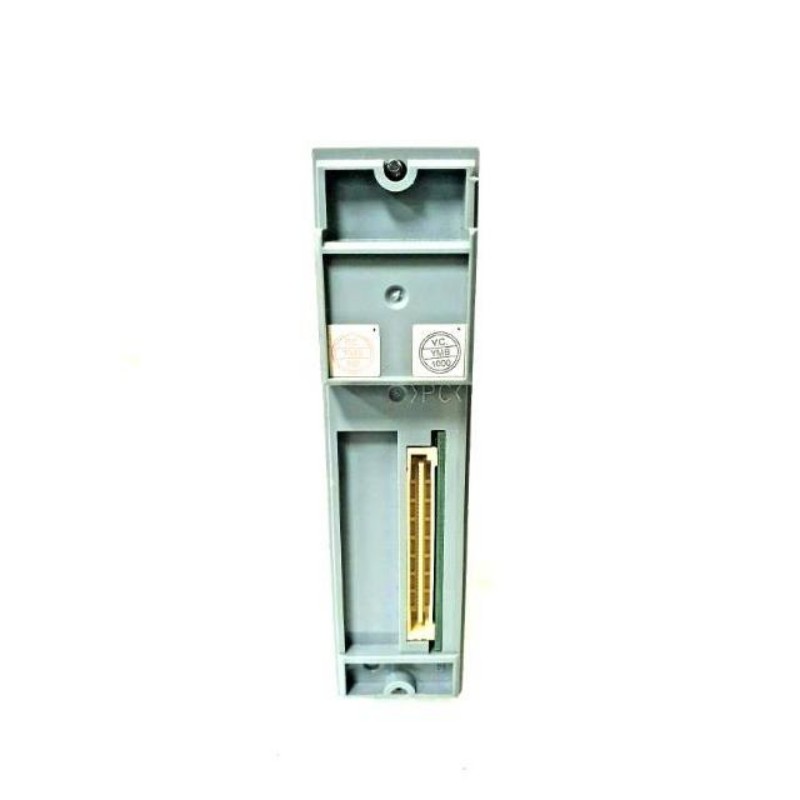

The Yokogawa ADV159-P00 is a digital output module designed for stable and efficient control of external devices within Yokogawa DCS platforms. It provides reliable discrete output channels suitable for process automation and equipment control tasks.
General Information
Part Number: ADV159-P00
Brand / Country of Origin: Yokogawa / Japan
Manufacturer: Yokogawa Electric Corporation
Series: ADV Series
Type: Digital Output Module
Mounting: Rack-mounted installation on the system I/O baseplate
Function: Supplies digital output signals for actuators, relays, and control devices
Power Specifications
Supply Voltage: Powered through the system backplane
Power Consumption: Low and stable, designed for continuous operation
Input Power Source: Internal I/O bus of the controller
Protection: Output channel protection and isolation circuitry
Indicators: Status LEDs for output activity and module health
Communication & Interface
Interface Type: Yokogawa proprietary I/O bus
Output Type: Discrete digital output channels
Diagnostics: Built-in self-test, output monitoring, fault indication
Operator Interface: Front-panel LED indicators for quick diagnostics
Environmental
Operating Temperature: Suitable for standard industrial control environments
Humidity: Up to 95% RH, non-condensing
Installation: Intended for enclosed control cabinets
Protection Rating: Industry-standard protection for indoor automation systems
Dimensions & Weight
Dimensions (L × W × H): 127.2 × 130 × 32.8 mm
Weight: ~0.4 kg
