Overview

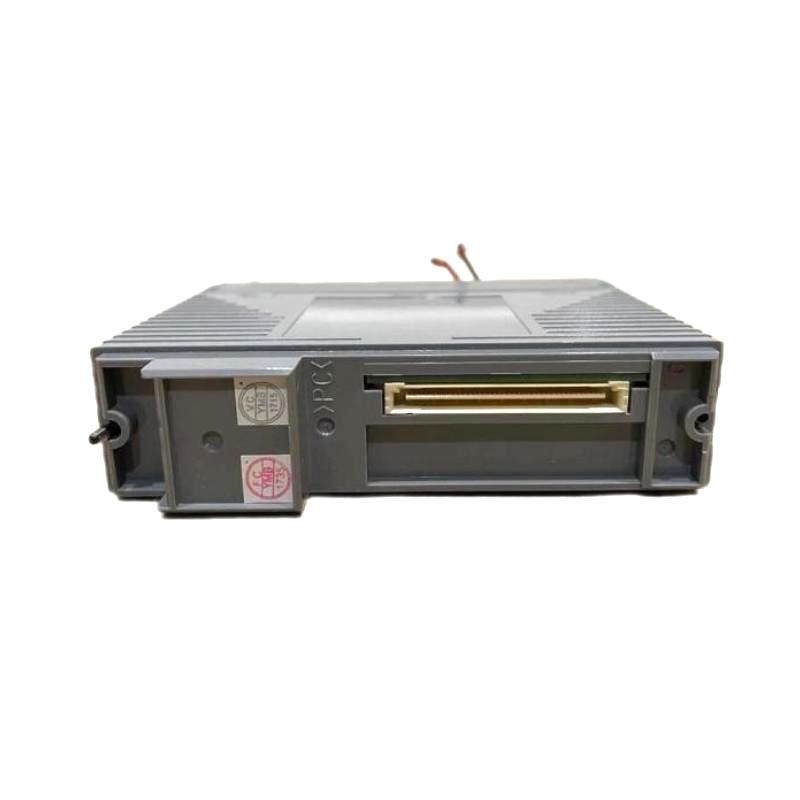

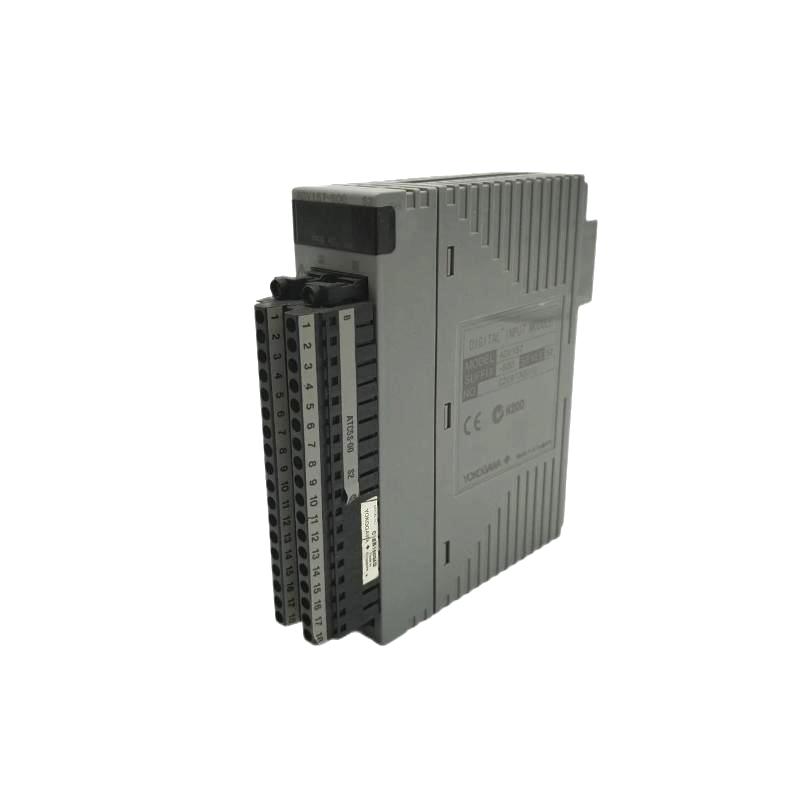

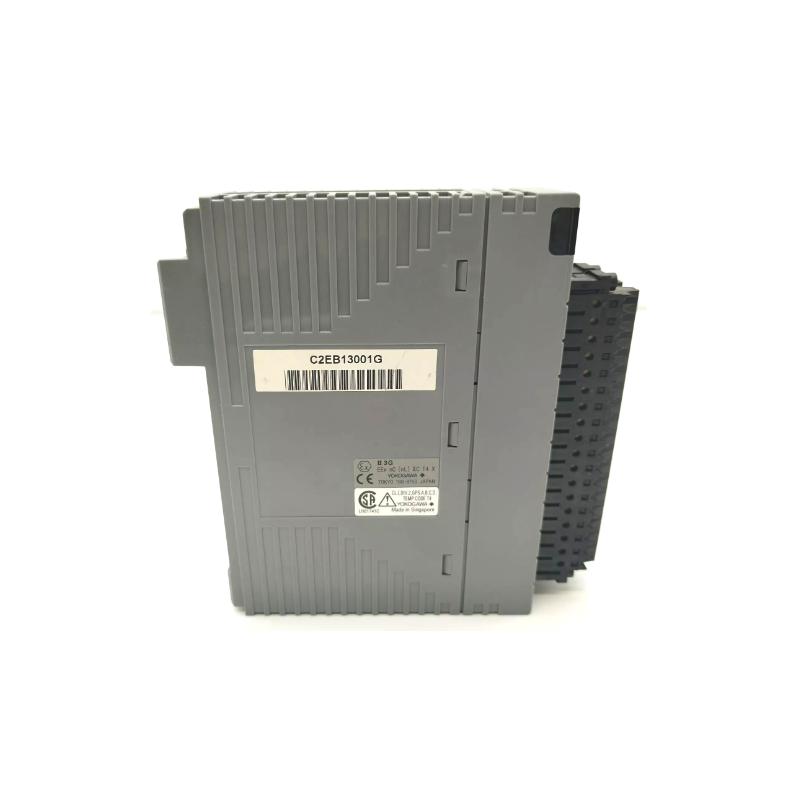

The Yokogawa ADV157 is a digital output module designed for dependable switching and control tasks within Yokogawa’s automation platforms. It provides stable digital output channels for driving field devices and executing control actions with high reliability.
General Information
Part Number: ADV157
Brand / Country of Origin: Yokogawa / Japan
Manufacturer: Yokogawa Electric Corporation
Series: ADV Series
Type: Digital Output Module
Mounting: Rack-mounted installation on the system I/O baseplate
Function: Provides digital output signals for external devices and control operations
Power Specifications
Supply Voltage: Powered through the system backplane
Power Consumption: Low operating power, optimized for continuous service
Input Power Source: Internal I/O power bus of the controller
Protection: Channel isolation and output protection circuitry
Indicators: LED indicators for output status and module health
Communication & Interface
Interface Type: Yokogawa I/O bus communication
Output Type: Discrete digital output channels
Diagnostics: Module self-check, output health monitoring, fault reporting
Operator Interface: Front-panel LEDs for quick status viewing
Environmental
Operating Temperature: Suitable for standard industrial environments
Humidity: Up to 95% RH, non-condensing
Installation: Designed for use in protected control cabinets
Protection Rating: Built to meet industrial indoor installation requirements
Dimensions & Weight
Dimensions (L × W × H): 130.9 × 130 × 32.8 mm
Weight: ~0.4 kg
