Overview

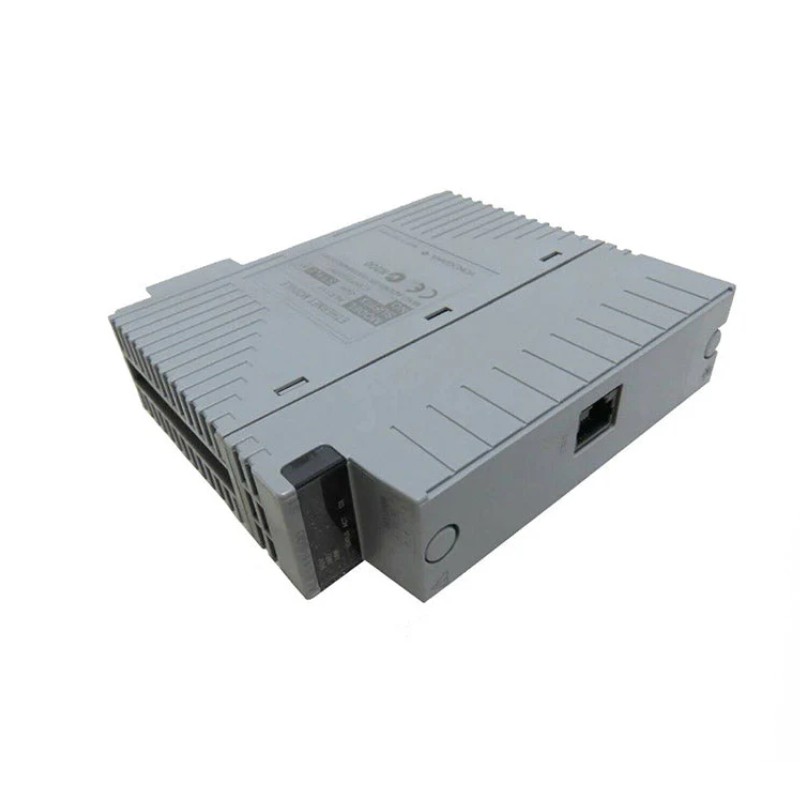

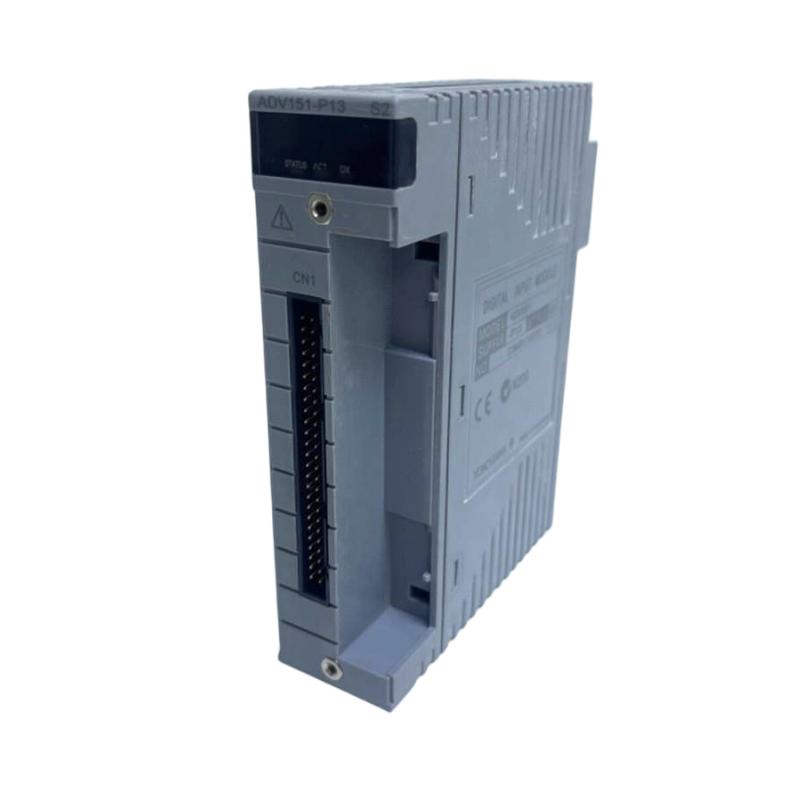

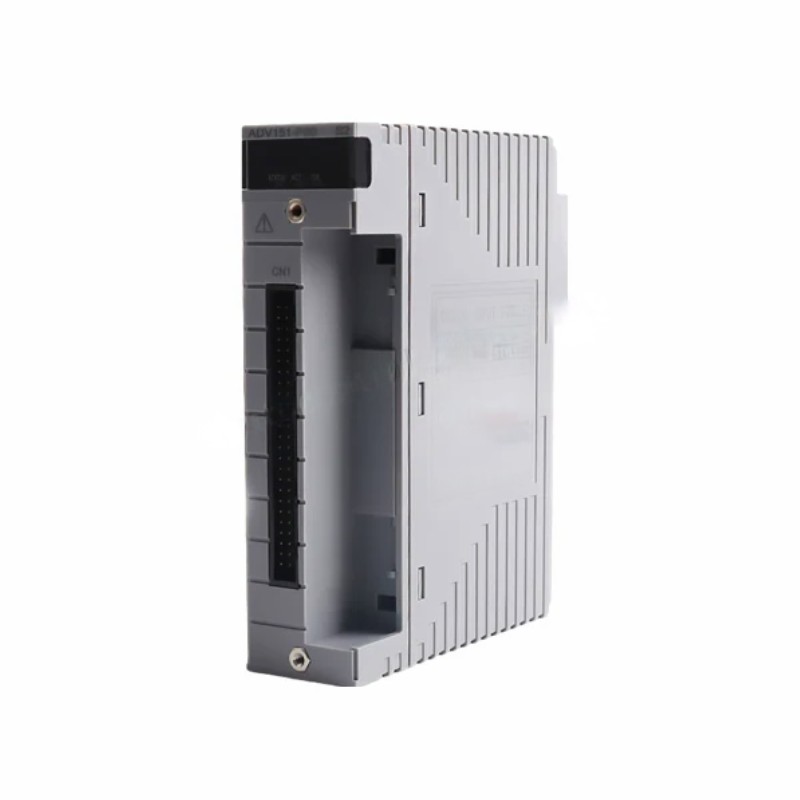

The Yokogawa ADV151-P13 is an analog input module used in Yokogawa control systems for precise and stable signal acquisition. It provides reliable conversion of analog field inputs, supporting high-quality measurement data for process automation applications.
General Information
Part Number: ADV151-P13
Brand / Country of Origin: Yokogawa / Japan
Manufacturer: Yokogawa Electric Corporation
Series: ADV Series
Type: Analog Input Module
Mounting: Installed on a system baseplate within the I/O rack
Function: Processes and conditions incoming analog signals for the controller
Power Specifications
Supply Voltage: Distributed through the I/O baseplate
Power Consumption: Optimized for low-power operation
Input Power Source: Internal control system power bus
Protection: Integrated isolation and circuit protection
Indicators: LED indicators for operation and alarm status
Communication & Interface
Interface Type: Yokogawa I/O bus communication
Signal Handling: Multi-channel analog signal acquisition and conversion
Data Processing: Stable sampling, filtering, and error detection
Diagnostics: Signal monitoring, internal module checks, status reporting
Operator Interaction: Front-panel LEDs for online status and error alerts
Environmental
Operating Temperature: Industrial control-grade temperature range
Humidity: Up to 95% RH, non-condensing
Installation Environment: Mounted in a protected control cabinet
Protection Rating: Suitable for standard industrial enclosure environments
Dimensions & Weight
Dimensions (L × W × H): 107.5 × 130 × 32.8 mm
Weight: ~0.3 kg
