Overview

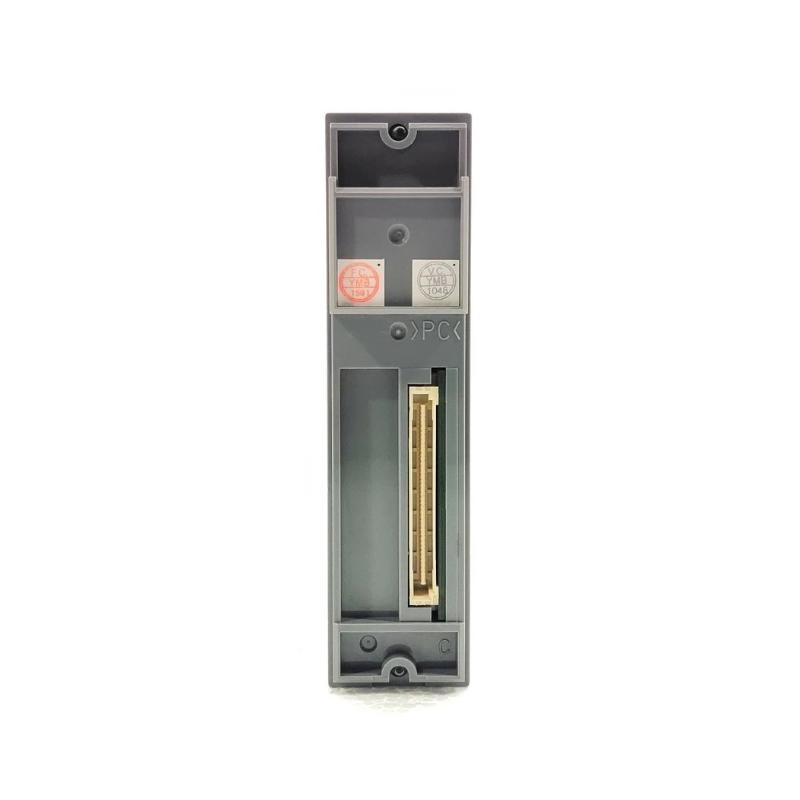

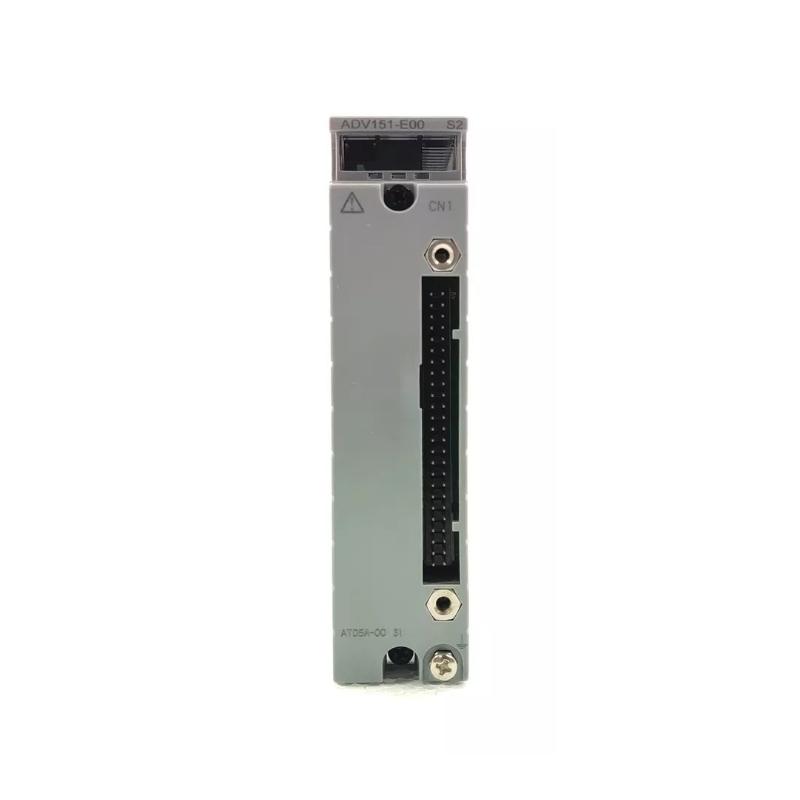

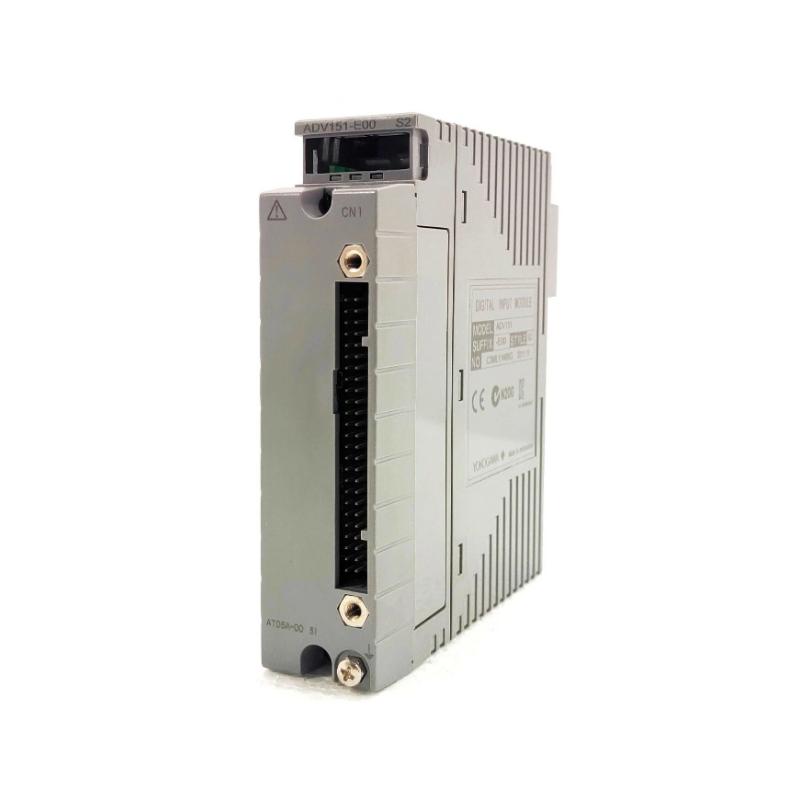

The Yokogawa ADV151-E00 S2 is a digital output module designed for use in Yokogawa's DCS systems. It provides reliable digital control signals to actuators, relays, and other external equipment, and is built to ensure stable performance in demanding industrial automation environments.
General Information
Part Number: ADV151-E00 S2
Brand / Country of Origin: Yokogawa / Japan
Series: ADV Series
Type: Digital Output Module
Mounting: Installed in compatible I/O rack or card slot
Technology: High-speed digital output processing with isolation
Power Specifications
Supply Voltage: Powered via system backplane
Power Consumption: Optimized for efficiency and durability
Output Channels: Supports multiple digital output points
Protection: Short-circuit and overload protection
Indicators: Front-panel LEDs for output and status monitoring
Communication & Interface
Output Type: Digital output signals to field equipment
Control Logic: Designed for safe and reliable output switching
Configuration: Set up and configured through system tools
Diagnostics: Built-in status monitoring and module health checks
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 90% RH, non-condensing
Protection Rating: Suitable for industrial control cabinet environments
Dimensions & Weight
Dimensions (L × W × H): 107.5 × 130 × 32.8 mm
Weight: ~ 0.3 kg
