Overview

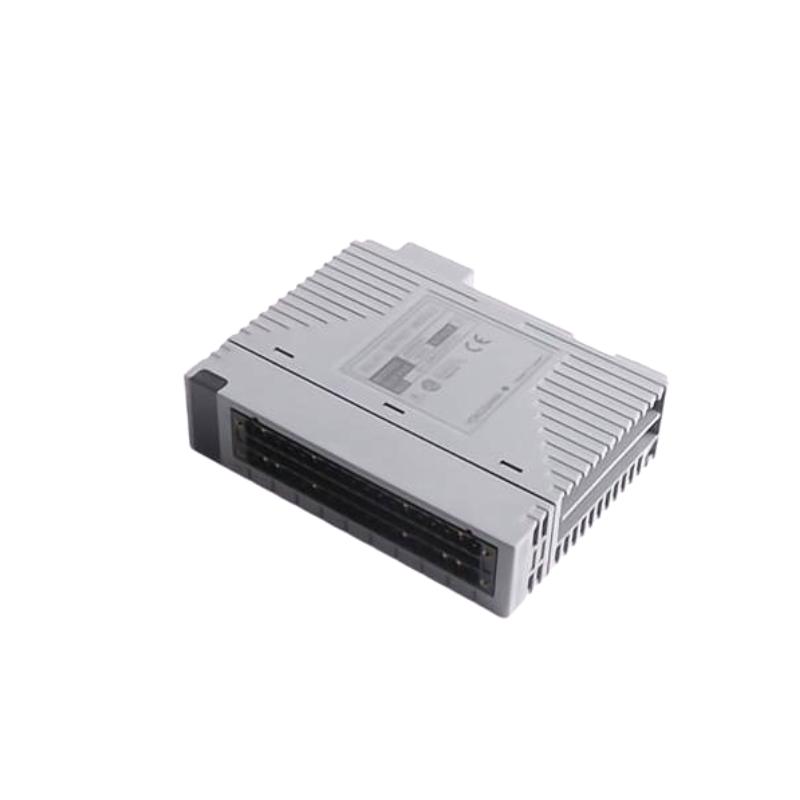

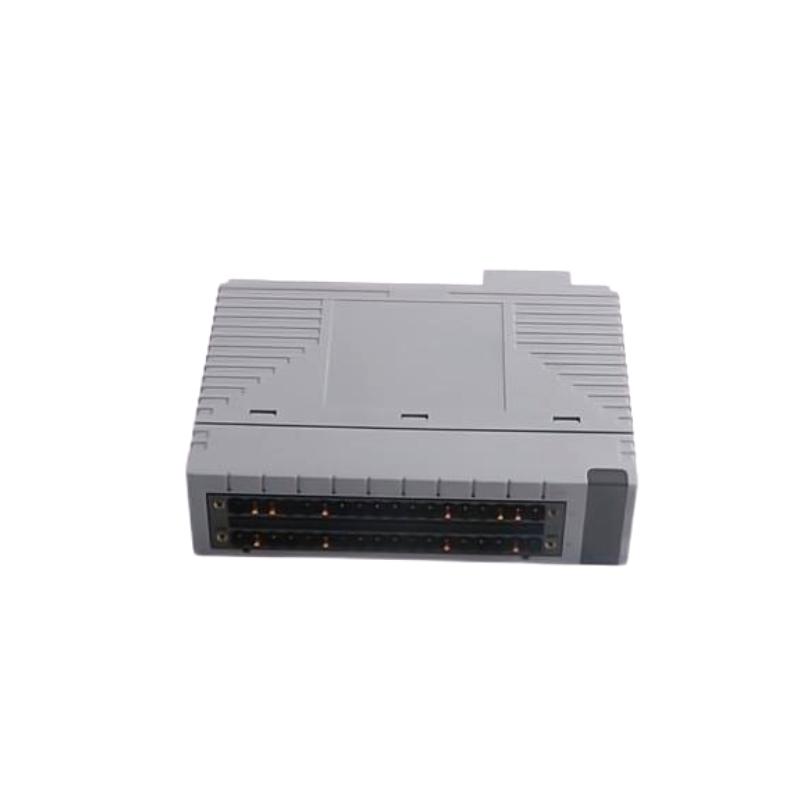

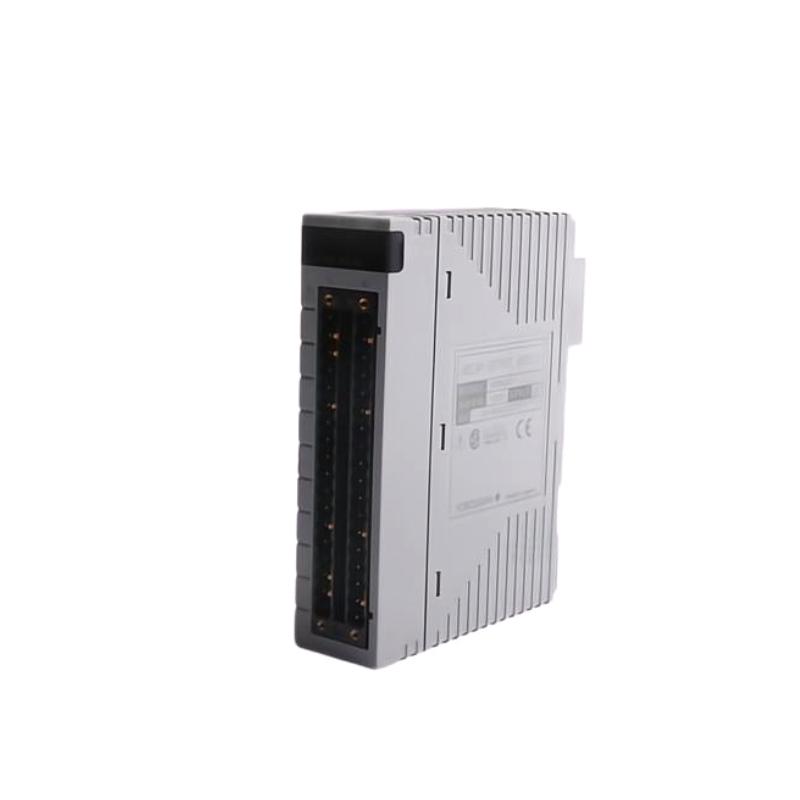

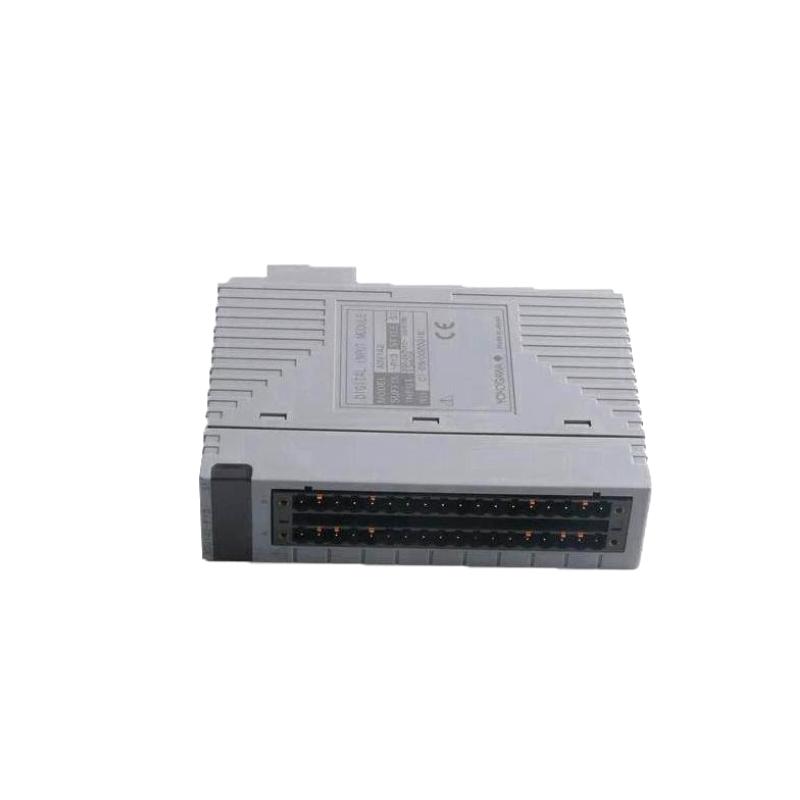

The Yokogawa ADR541-P10 is an industrial-grade analog input module designed to capture and process analog signals with high precision. This module is widely used in distributed control systems for process automation, enabling accurate monitoring and control of field variables.
General Information
Model: ADR541-P10
Manufacturer: Yokogawa
Type: Analog Input Module
Application: Process measurement and signal acquisition
Power Specifications
Supply Voltage: 24 V DC (via system backplane)
Power Usage: Efficient low-power operation
Input Isolation: Galvanic isolation between channels to reduce interference
Communication & Interface
Input Signal: Accepts standard analog signals such as 4–20 mA
Channel Configuration: Multiple input channels for scalable data acquisition
Connection Type: Terminal block interface for secure signal wiring
System Integration: Compatible with Yokogawa CENTUM and related control platforms
Environmental
Operating Temperature: 0°C to +60°C
Humidity: Up to 95% RH, non-condensing
Mounting: Suitable for standard control cabinet installation
Dimensions & Weight
Dimensions: 130 × 32.8 × 107.5 mm
Weight: 0.3 kg
