Overview

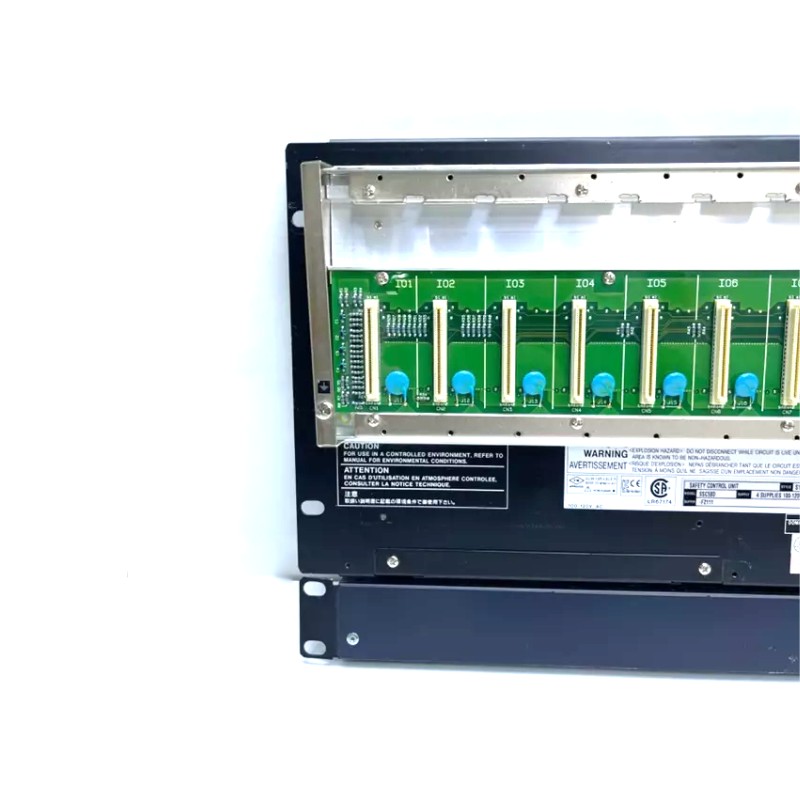

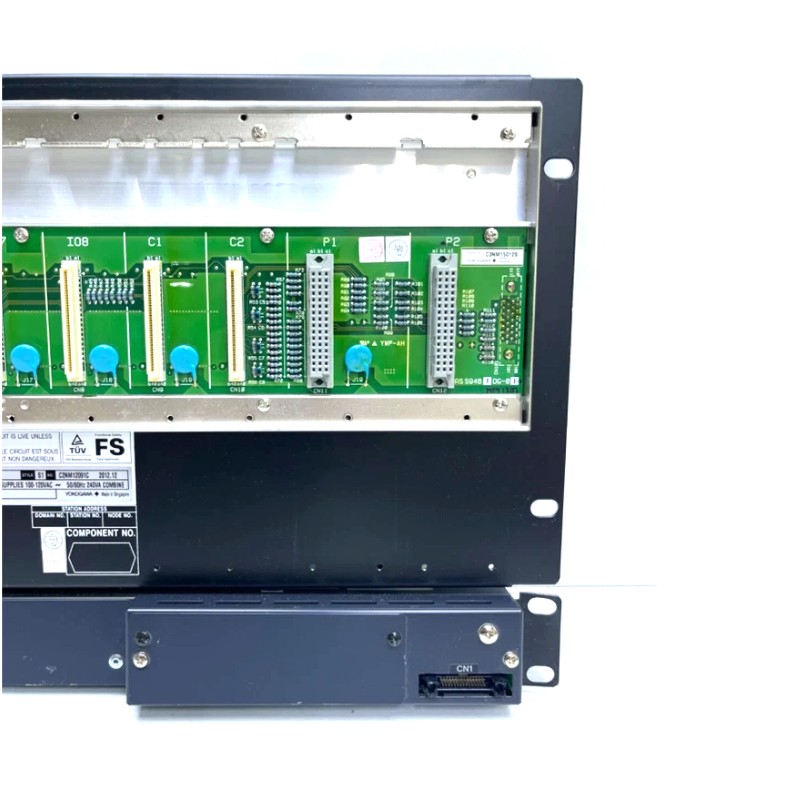

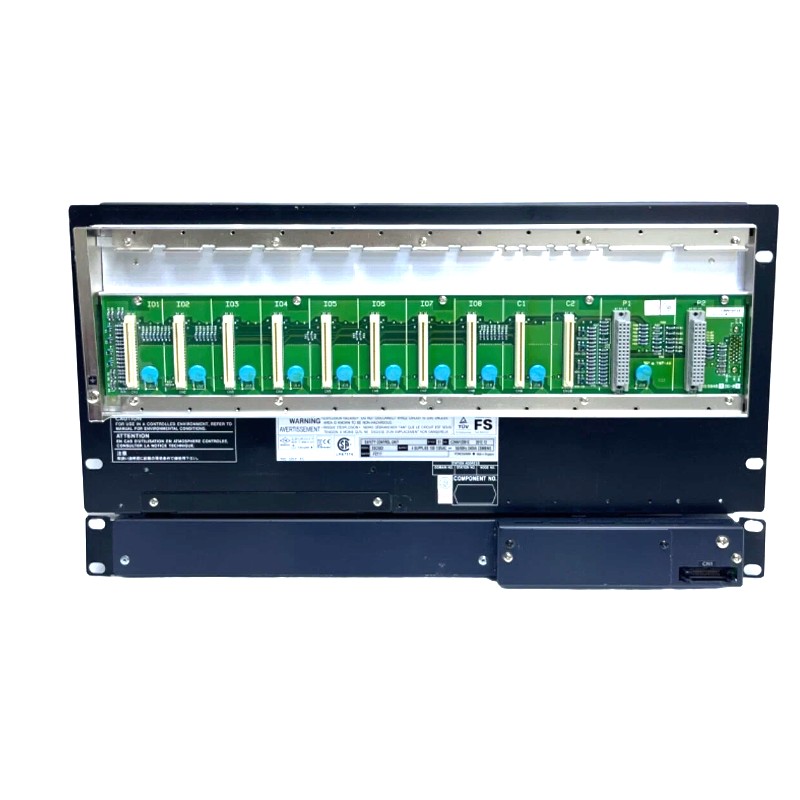

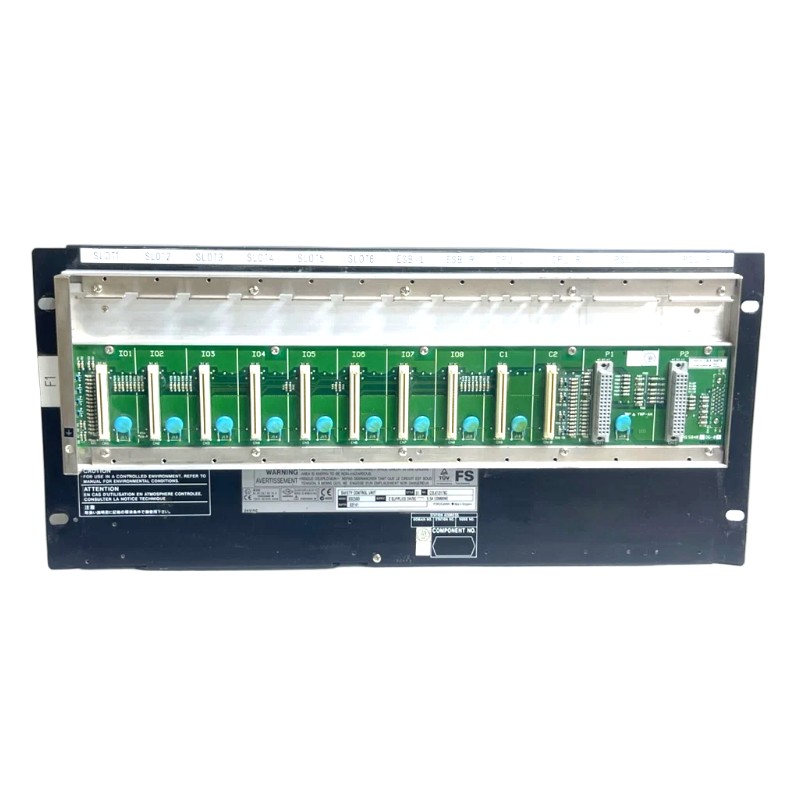

The Yokogawa SSC60D-F2541 is a high-performance safety system controller designed for the ProSafe-RS platform. It serves as the central processing unit for safety instrumented systems (SIS), executing safety logic, monitoring process parameters, and managing communication with field devices. With its robust design and redundancy features, it ensures reliable and continuous operation in critical industrial processes.
General Information
Brand: Yokogawa
Country of Origin: Japan
Model Number: SSC60D-F2541
Series: ProSafe-RS Safety Controllers
Product Type: Safety System Controller Module
Mounting Method: Rack-mounted within ProSafe-RS control cabinet
Function: Executes safety logic, monitors process conditions, and communicates with field instruments
Technology: Redundant processor architecture with integrated diagnostics and communication interfaces
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 180 W
Input Source: Supplied via system power backplane
Protection Features: Overvoltage, short-circuit, and reverse polarity protection
Indicators: LED indicators for power, operation, fault, and communication status
Communication & Interface
Communication Ports: System bus, Ethernet, and fieldbus connections
Supported Protocols: ProSafe-RS network protocols and standard industrial fieldbus protocols
Diagnostics: Built-in self-test, system health monitoring, and fault logging
Configuration: Through Yokogawa engineering software or local operator terminal
Reset Options: Supports both hardware and software reset
Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: −20 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 (suitable for cabinet installation)
Cooling Method: Forced air or natural convection depending on cabinet design
Dimensions & Weight
Dimensions (L × W × H): 482.6 × 266 × 88.1 mm
Weight: Approx. 13 kg
