Overview

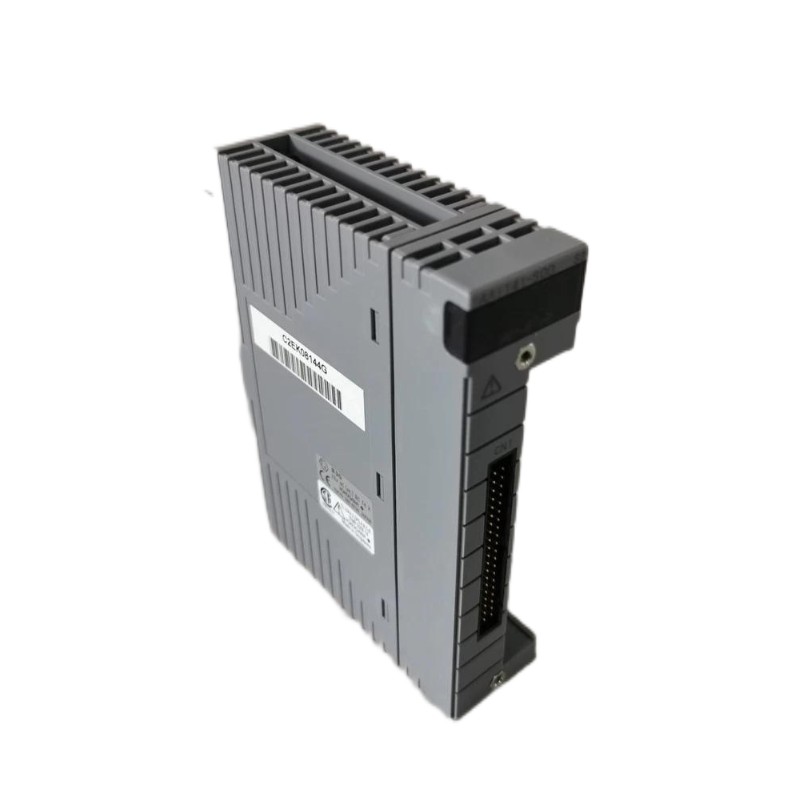

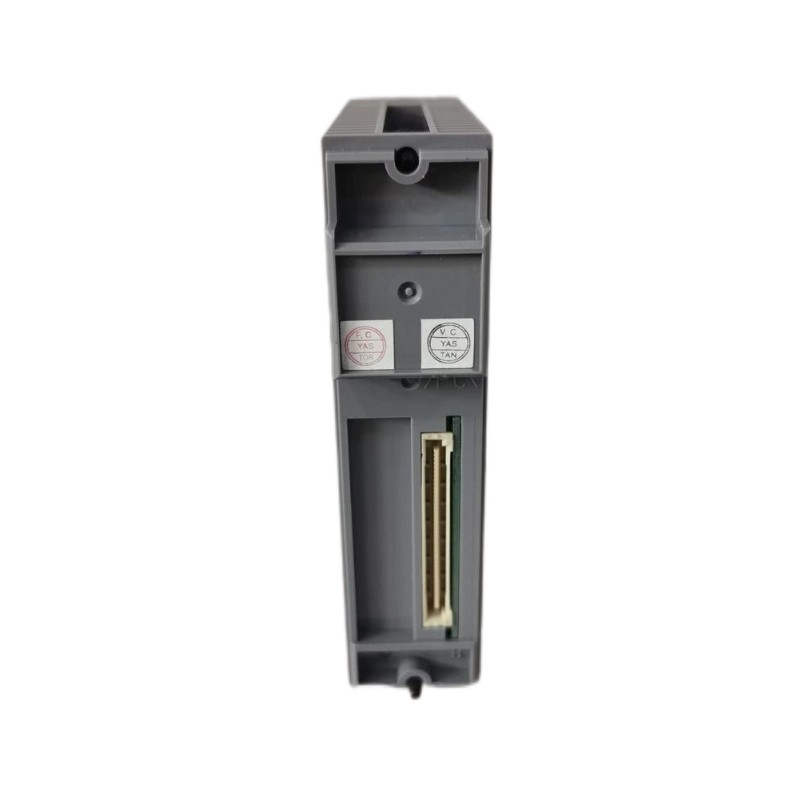

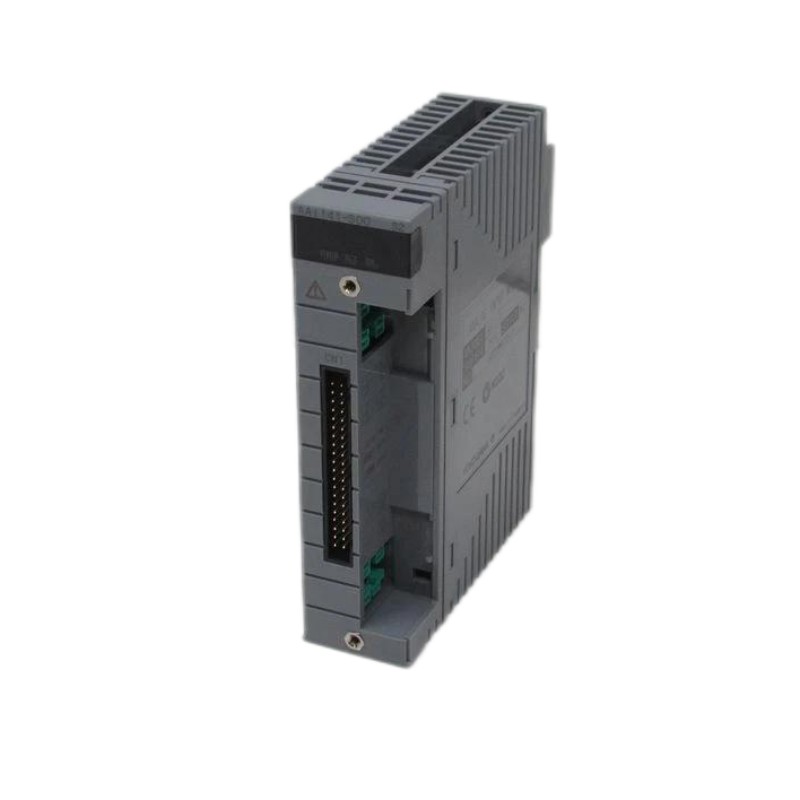

The Yokogawa AAI141-S00 is a 16-channel analog input module designed for use with Yokogawa’s CENTUM CS 3000 and CENTUM VP distributed control systems. It accurately converts 4–20 mA analog signals from field transmitters into digital data for precise process control and monitoring. The “S00” version is a standard model offering stable performance, high reliability, and strong electrical isolation for use in continuous industrial environments such as oil refining, power generation, and chemical plants.

General Information

• Part Number: AAI141-S00

• Manufacturer: Yokogawa Electric Corporation

• Series: AAI (Analog Input Module Series)

• Type: Analog Input Module (AI)

• Number of Channels: 16 isolated analog inputs

• Signal Type: 4–20 mA DC current input

• Country of Origin: Japan

• Mounting: Installed on the FIO (Field Input/Output) base unit inside a control cabinet

• Technology: 16-bit A/D conversion, isolated input channels, digital filtering, and self-diagnostic functions for reliable signal acquisition and processing

Power Specifications

• Power Supply Voltage: 24 V DC (supplied from the I/O base)

• Input Voltage Range: 20–28 V DC

• Power Consumption: Approx. 6.5 W

• Input Power Source: Through backplane connection

• Isolation: Channel-to-channel and channel-to-ground optical isolation

• Protection: Overvoltage, reverse polarity, and noise suppression protection

Communication & Interface

• Interface Type: Field I/O (FIO) bus communication

• System Compatibility: Yokogawa CENTUM CS 3000 / CENTUM VP

• Input Signal Range: 4–20 mA DC

• Input Resistance: 250 Ω typical

• Resolution: 16-bit A/D conversion

• Accuracy: ±0.1% of full scale or better

• Diagnostics: Built-in self-diagnostic system with LED indicators for power, communication, and input channel status

• Configuration: Software-configurable using Yokogawa’s system engineering tools (such as CENTUM system builder and FIO configuration software)

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: −20 °C to +70 °C

• Humidity: 10% to 90% RH, non-condensing

• Vibration Resistance: 10–60 Hz, amplitude 0.075 mm

• Protection Rating: IP20 (suitable for internal cabinet installation)

• Maximum Operating Altitude: 2000 m

Dimensions & Weight

• Dimensions (L × W × H): 107.5 × 32.8 × 130 mm

• Weight: 0.2 kg
