Overview

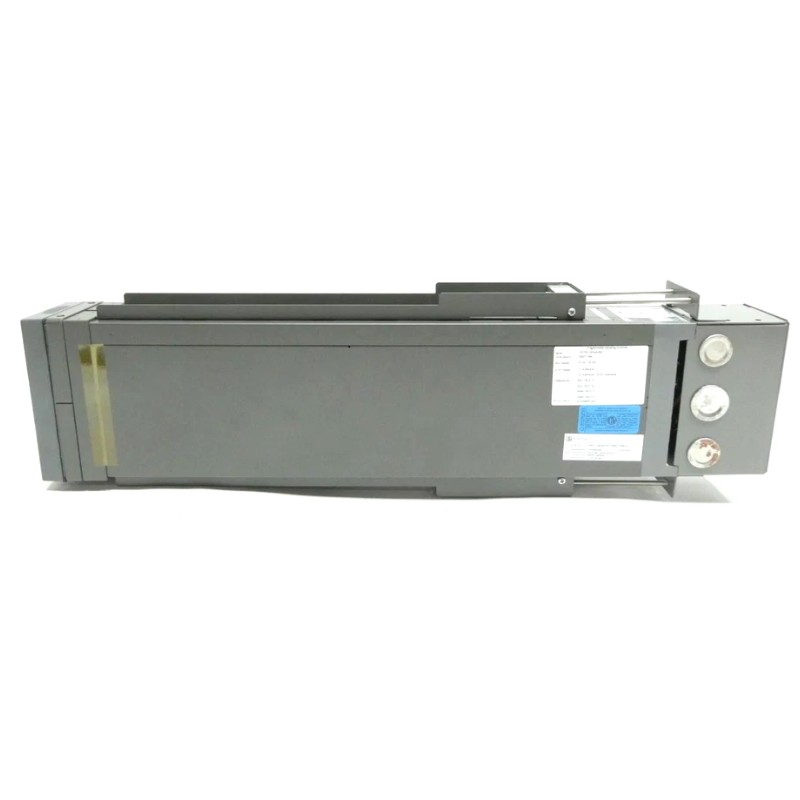

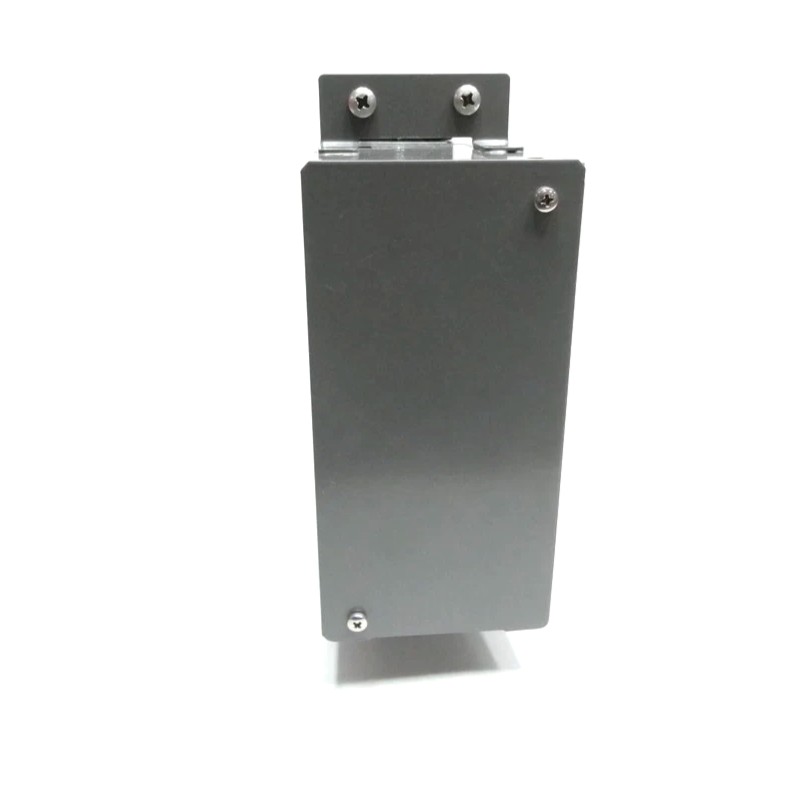

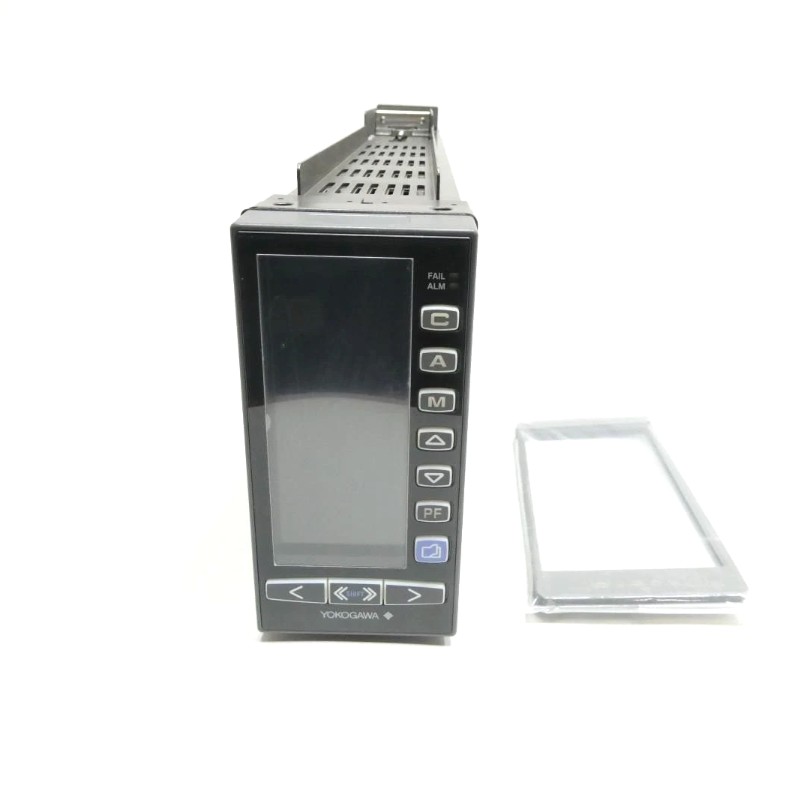

The Yokogawa YS1700‑030 is a programmable single‑loop indicating controller designed to meet industrial process control needs. It delivers precise control, flexible configuration, and enhanced communication capabilities for dedicated process loops.
General Information
Part Number: YS1700‑030
Manufacturer: Yokogawa
Brand / Country of Origin: Yokogawa / Japan
Type: Programmable Indicating Controller
Mounting: Panel‑mount instrument with cut‑out integration
Technology: Supports multiple control modes, I/O expansion, and peer‑to‑peer communication
Power Specifications
Supply Voltage: AC 100‑240 V (or DC 24 V variant depending on model)
Power Consumption: Typical for single‑loop controller class
Protection: Internal surge protection and line‑frequency tolerant design
Communication & Interface
Interfaces: RS‑485, Ethernet (optional)
Protocols Supported: Modbus RTU/TCP, peer‑to‑peer communication, YS protocol
Diagnostics: Status indicators for power, loop mode, communication activity
Environmental
Operating Temperature: 0 °C to +55 °C
Humidity: Up to 90% RH, non‑condensing
Installation Environment: Industrial control panels and cabinets
Dimensions & Weight
Dimensions: 144 × 72 × 250 mm
Weight: 1.6 kg
