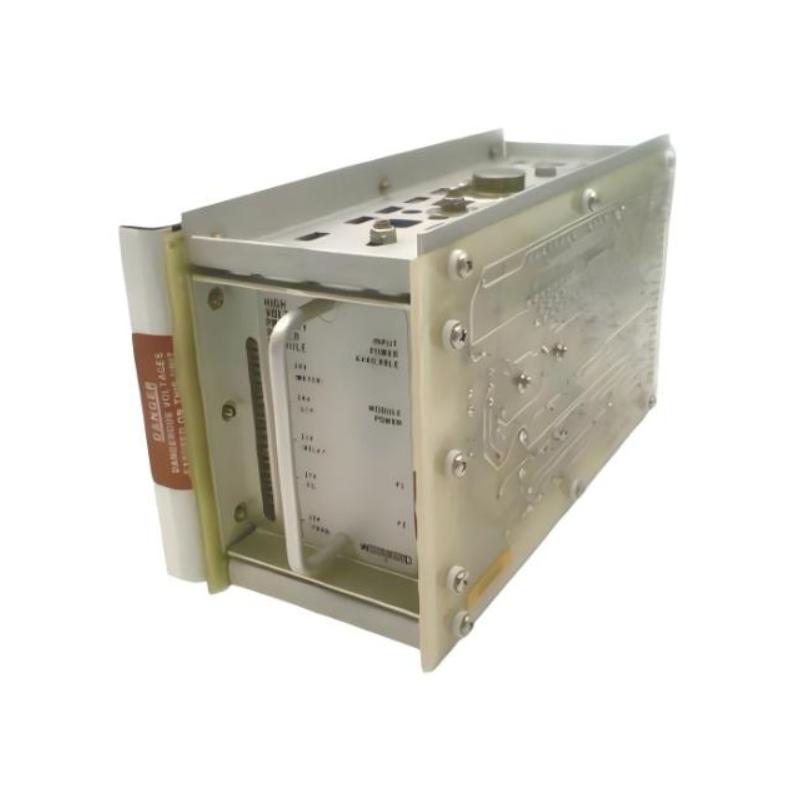

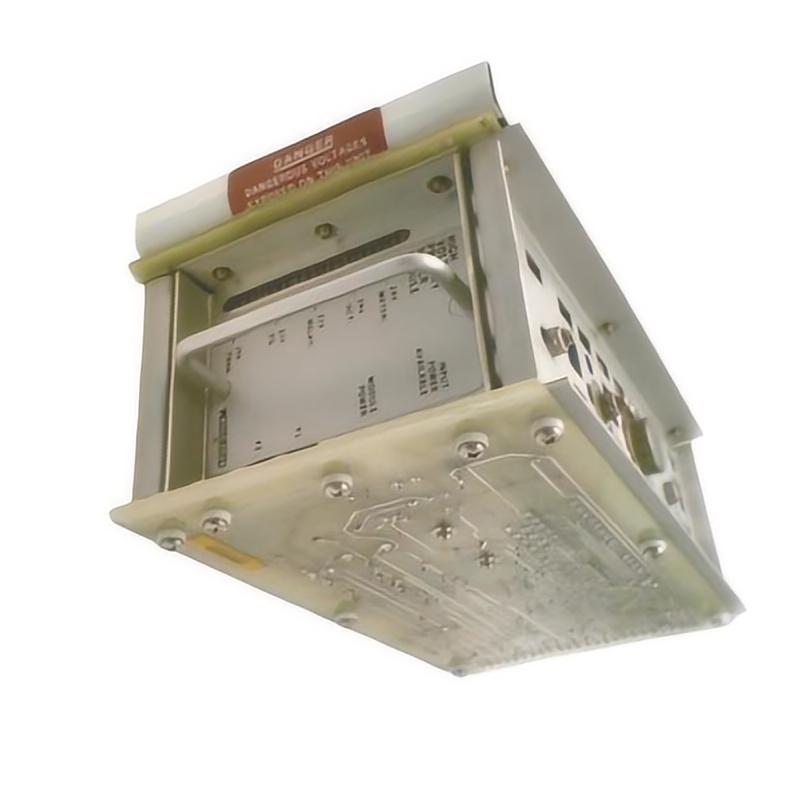

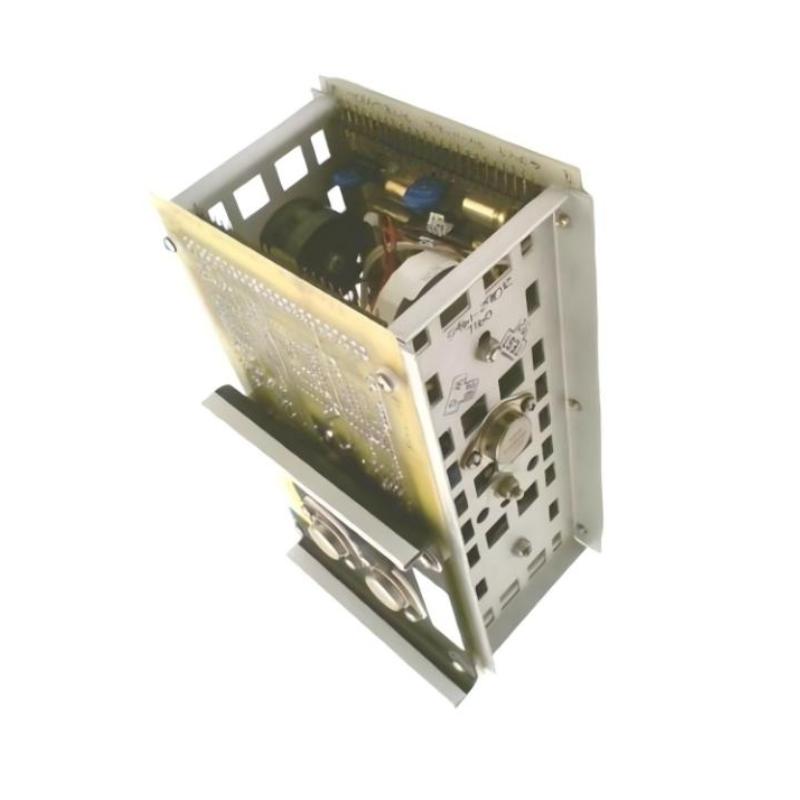

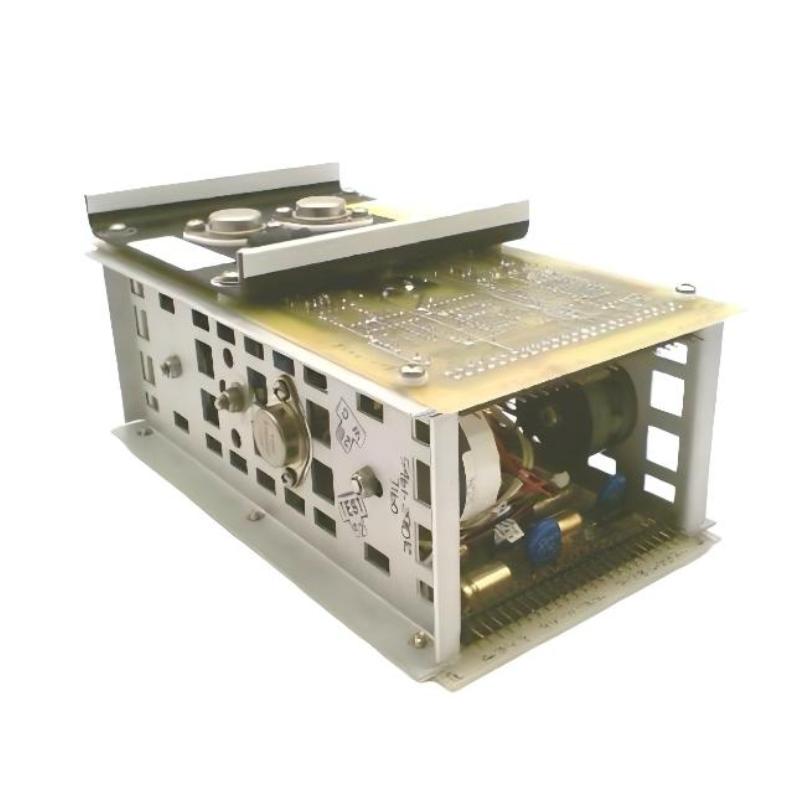

Woodward 5461-290 Power Supply

Overview

The Woodward 5461-290 is a power supply module designed to provide stable and reliable power for Woodward industrial control systems. It delivers regulated power to connected control components, helping maintain consistent operation in demanding automation and engine control environments.

This power supply is suitable for industrial applications requiring dependable energy conversion, system stability, and continuous control system performance.

General Information

Part Number: 5461-290

Manufacturer: Woodward

Brand: Woodward

Country of Origin: United States

Series: Woodward Control Systems

Type: Power Supply Module

Application: Industrial control system power management

Installation: Mounted within compatible control cabinets or system chassis

Function: Provides regulated power support for connected control modules and system components

Compatibility: Woodward control systems and related automation equipment

Technology: Industrial-grade power conversion design for reliable system operation

Power Specifications

Input Voltage: System-rated DC power input

Output Power: Provides regulated DC power for connected control modules

Power Source: External industrial power supply connection

Power Consumption: Designed for efficient operation within control system requirements

Protection: Includes electrical protection features for overload and stable operation

Indicators: Status indicators for power condition and module operating status

Communication & Interface

Interface Type: Power system interface

Connection Method: Terminal or chassis-based connection

System Function: Supplies operating power to compatible control modules

Integration: Supports centralized power distribution within Woodward control architectures

Communication Support: No direct communication function; operates through system power connections

Diagnostics: Provides power status monitoring through module indicators

Environmental

Operating Temperature: Suitable for industrial control environments

Storage Temperature: −40 to +85 °C

Relative Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control cabinets, automation panels, and equipment enclosures

Protection Rating: Designed for installation inside protected industrial environments

Resistance: Suitable for vibration, electrical noise, and continuous industrial operation

Dimensions & Weight

Dimensions (L × W × H): 180 × 95 × 50 mm

Weight: 1.47 kg

New In Stock for Reliable Power Solutions!
