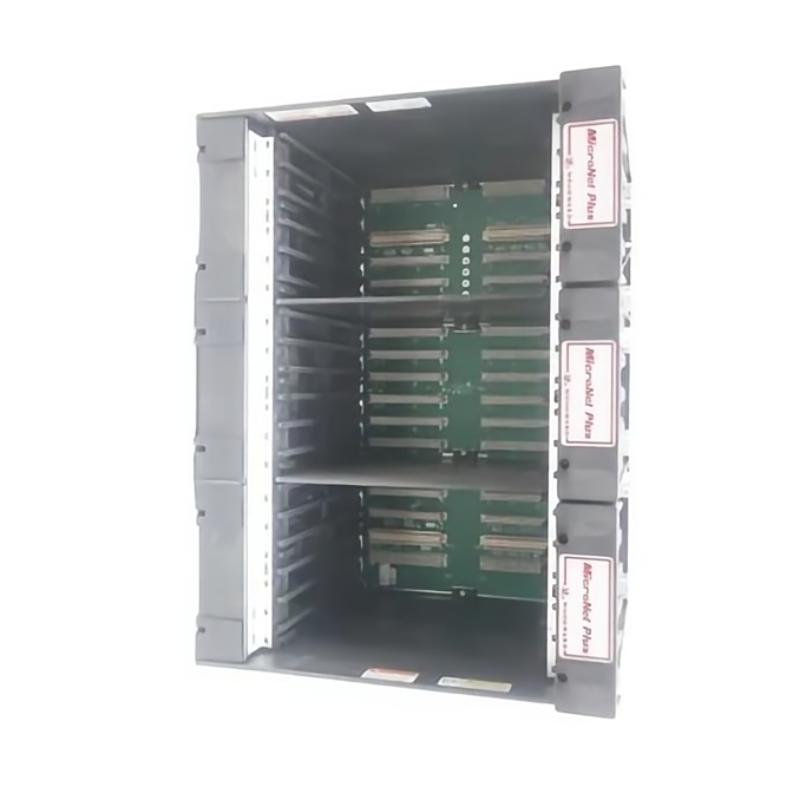

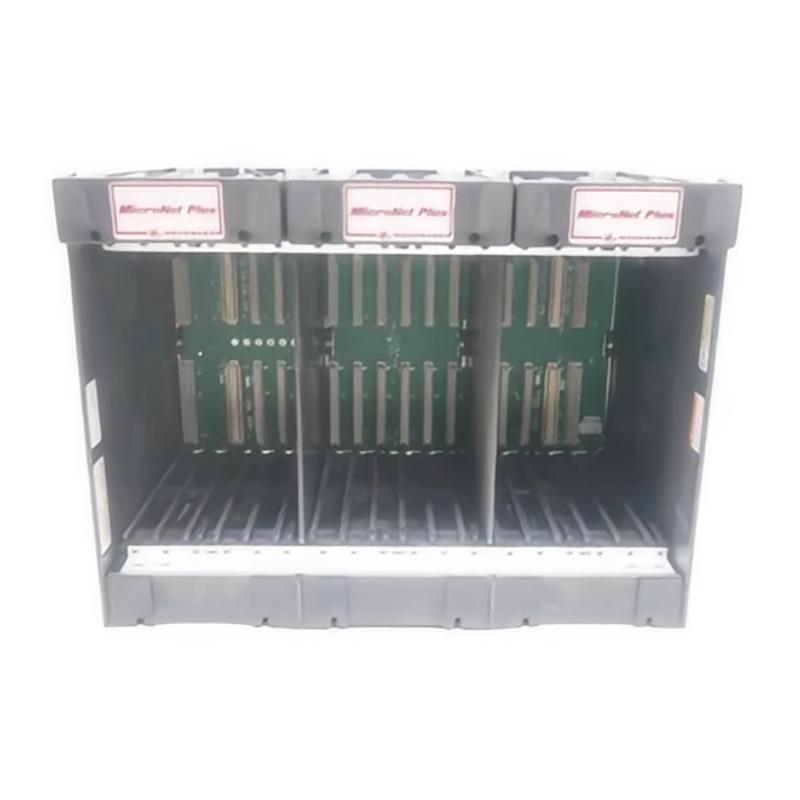

Woodward 5453-759 14-Slot Chassis

Overview

The Woodward 5453-759 is a 14-slot chassis designed to provide a modular platform for installing Woodward control system components. It offers multiple module positions for flexible system configuration, allowing users to expand control, communication, and I/O capabilities within industrial applications.

This chassis is suitable for engine control, power management, and automation systems requiring organized module installation and reliable system expansion.

General Information

Part Number: 5453-759

Manufacturer: Woodward

Brand: Woodward

Country of Origin: United States

Series: Woodward Control Systems

Type: 14-Slot Chassis

Application: Modular control system expansion and module mounting

Installation: Rack or cabinet installation within industrial control systems

Function: Provides mechanical support and slot expansion for compatible control modules

Compatibility: Woodward modular control systems and related automation components

Technology: Modular chassis architecture for scalable industrial control configurations

Power Specifications

Supply Voltage: System-dependent power connection

Power Source: Supplied through compatible system power modules

Power Consumption: Passive chassis structure with no independent power consumption

Electrical Function: Provides module mounting and backplane connection support

Protection: Designed to support reliable installation and operation of connected modules

Indicators: Status monitoring depends on installed control modules

Communication & Interface

Interface Type: Modular backplane interface

Slot Capacity: 14 module installation positions

Connection Method: Rack-based module installation

System Function: Supports integration of control, communication, and I/O modules

Communication Support: Enables module communication through the internal chassis backplane

Diagnostics: Dependent on installed modules and system configuration

Environmental

Operating Temperature: Suitable for industrial control environments

Storage Temperature: −40 to +85 °C

Relative Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control cabinets, automation panels, and equipment enclosures

Protection Rating: Designed for installation inside protected industrial environments

Resistance: Suitable for vibration, electrical noise, and continuous industrial operation

Dimensions & Weight

Dimensions (L × W × H): 211 × 198 × 95 mm

Weight: 2.36 kg
