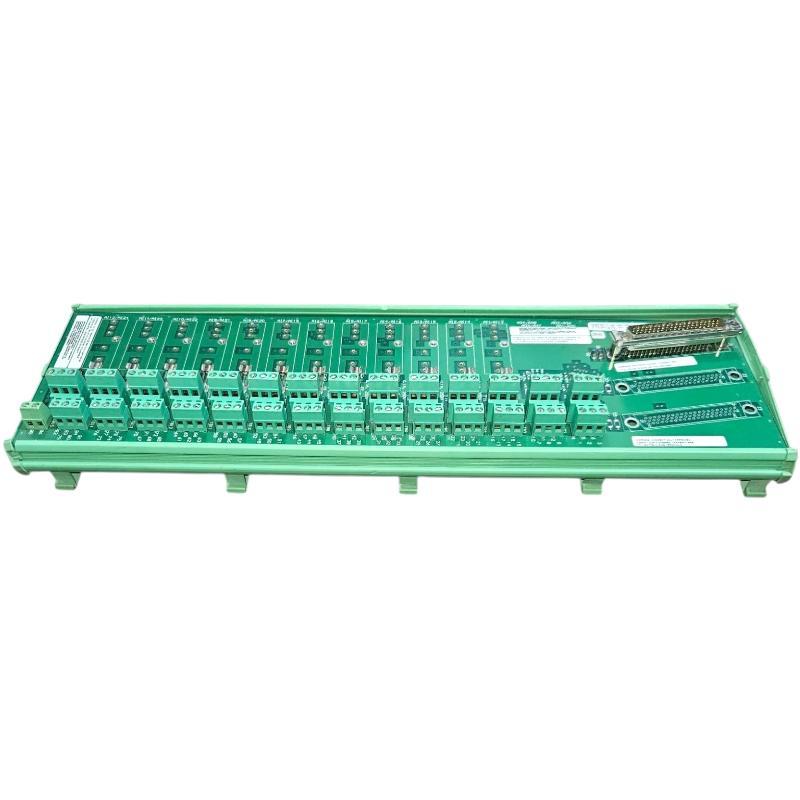

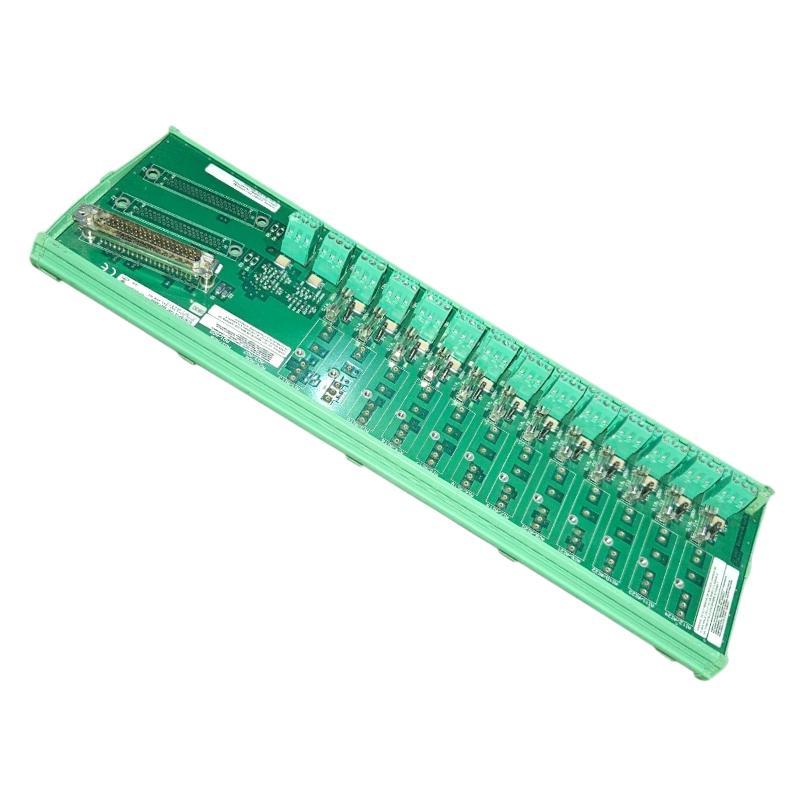

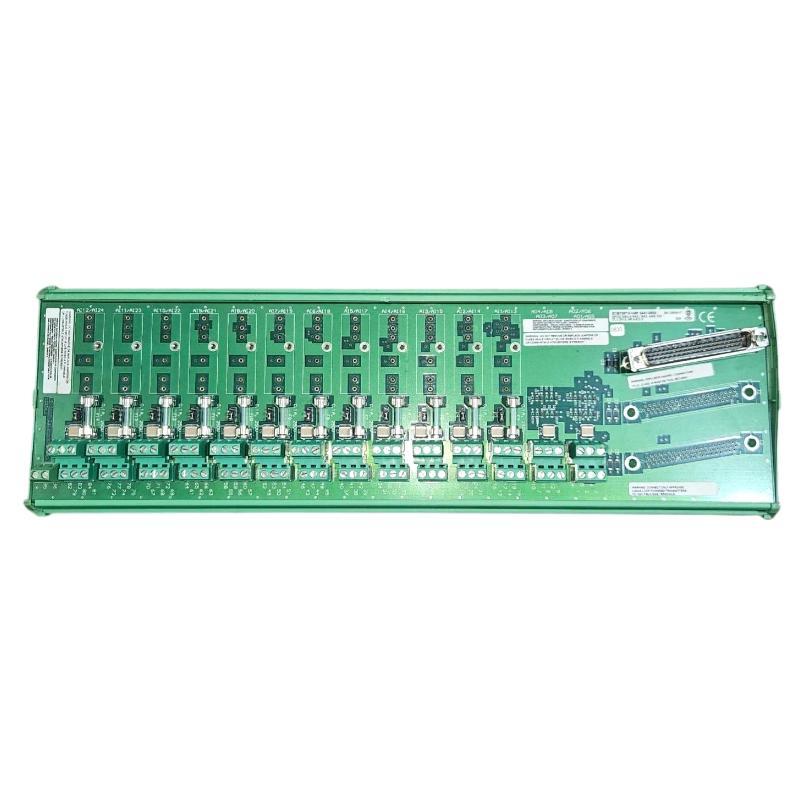

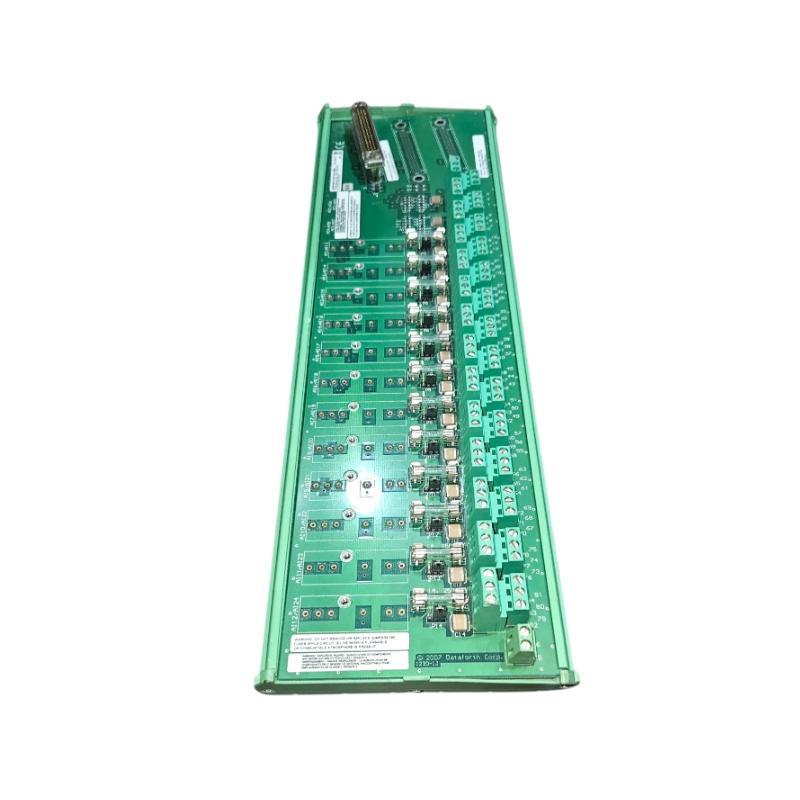

Woodward 5441-695C Dataforth FTM Module

Overview

The Woodward 5441-695C is a Dataforth FTM module designed to provide reliable field termination and signal interface support for Woodward industrial control systems. It helps simplify field wiring connections while maintaining stable signal routing between external devices and control modules.

This module is suitable for industrial automation, engine control, and power management applications where organized wiring, dependable signal transmission, and efficient system maintenance are required.

General Information

Part Number: 5441-695C

Manufacturer: Woodward

Brand: Woodward

Country of Origin: United States

Series: Woodward Control Systems

Type: Dataforth FTM Module

Application: Field terminal connection and signal interface management

Installation: Mounted within compatible control cabinets or modular chassis systems

Function: Provides field wiring termination and signal connection support for control system components

Compatibility: Woodward control systems and compatible Dataforth interface equipment

Technology: Industrial field terminal module design for reliable signal organization and system integration

Power Specifications

Supply Voltage: System-rated DC power supply

Power Source: Supplied through connected control system components

Power Consumption: Passive interface module with no independent power consumption

Electrical Function: Supports signal routing and field connection between control modules and external devices

Protection: Designed to maintain reliable electrical connections in industrial environments

Indicators: Supports system monitoring through connected control equipment

Communication & Interface

Interface Type: Field Terminal Module (FTM) interface

Signal Type: Analog and digital control signals

Connection Method: Terminal block connection

Field Connection: Provides organized connection points for external field wiring

Control Function: Supports signal distribution and interface management within automation systems

System Integration: Designed for use with Woodward control architectures and compatible modules

Diagnostics: Supports troubleshooting through structured field wiring connections

Environmental

Operating Temperature: Suitable for industrial control environments

Storage Temperature: −40 to +85 °C

Relative Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control cabinets, automation panels, and equipment enclosures

Protection Rating: Designed for installation inside protected industrial environments

Resistance: Suitable for vibration, electrical noise, and continuous industrial operation

Dimensions & Weight

Dimensions (L × W × H): 180 × 30 × 120 mm

Weight: 0.38 kg
