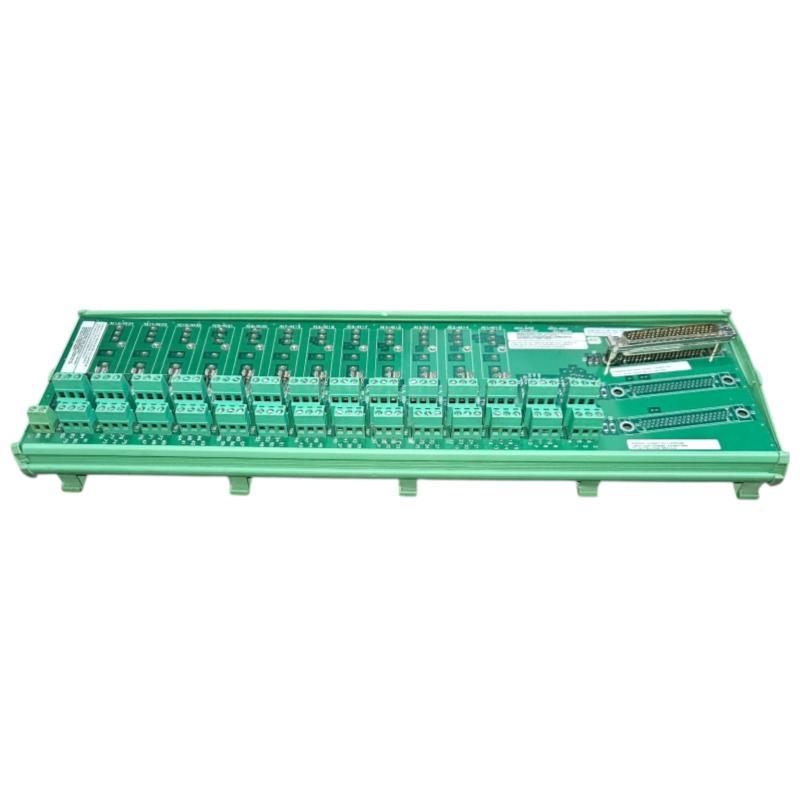

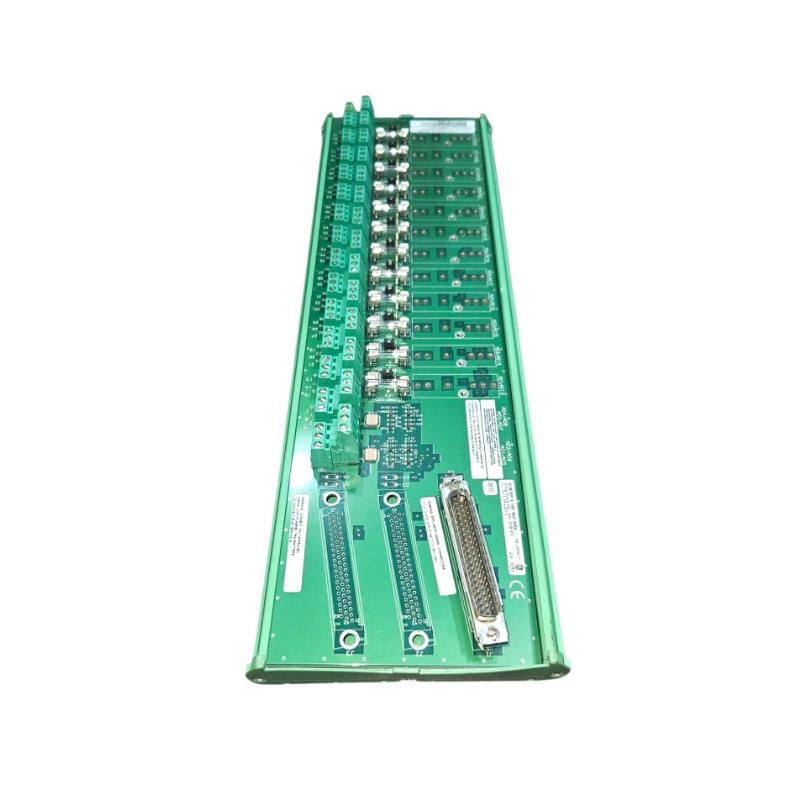

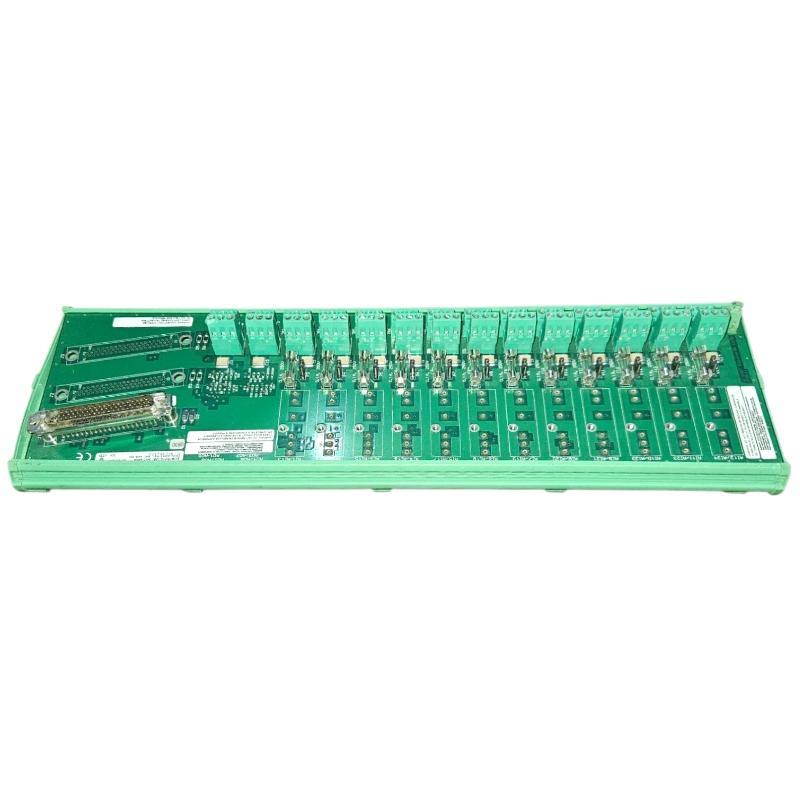

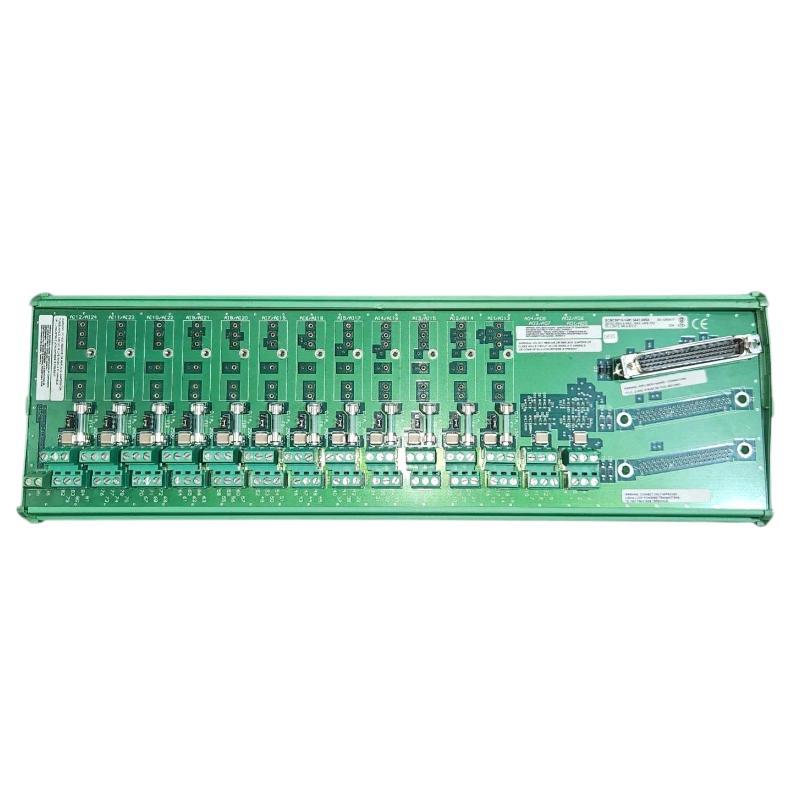

Woodward 5441-695 Dataforth FTM Module

Overview

The Woodward 5441-695 is a Dataforth FTM module designed to provide signal interface and field connection support within Woodward industrial control systems. It helps organize field wiring connections and improves signal management between external devices and control modules.

This module is suitable for industrial automation, engine control, and power management applications where reliable signal routing and system integration are required.

General Information

Part Number: 5441-695

Manufacturer: Woodward

Brand: Woodward

Country of Origin: United States

Series: Woodward Control Systems

Type: Dataforth FTM Module

Application: Signal interface and field terminal management

Installation: Mounted within compatible control cabinets or modular chassis systems

Function: Provides field signal connection and interface support for control system components

Compatibility: Woodward control systems and related Dataforth interface equipment

Technology: Industrial field terminal module design for organized signal distribution

Power Specifications

Supply Voltage: System-rated DC power supply

Power Source: Supplied through connected control system components

Power Consumption: Passive interface module with no independent power consumption

Electrical Function: Supports field signal connection and routing between system components

Protection: Designed to maintain reliable electrical connections in industrial environments

Indicators: Supports system monitoring through connected control equipment

Communication & Interface

Interface Type: Field terminal interface module

Signal Type: Analog and digital control signals

Connection Method: Terminal block connection

Field Connection: Provides organized wiring interface between field devices and control modules

Control Function: Supports signal distribution and connection management within automation systems

System Integration: Designed for use with Woodward control architectures and compatible interface modules

Diagnostics: Supports troubleshooting through structured field wiring connections

Environmental

Operating Temperature: Suitable for industrial control environments

Storage Temperature: −40 to +85 °C

Relative Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control cabinets, automation panels, and equipment enclosures

Protection Rating: Designed for installation inside protected industrial environments

Resistance: Suitable for vibration, electrical noise, and continuous industrial operation

Dimensions & Weight

Dimensions (L × W × H): 180 × 30 × 120 mm

Weight: 0.38 kg
