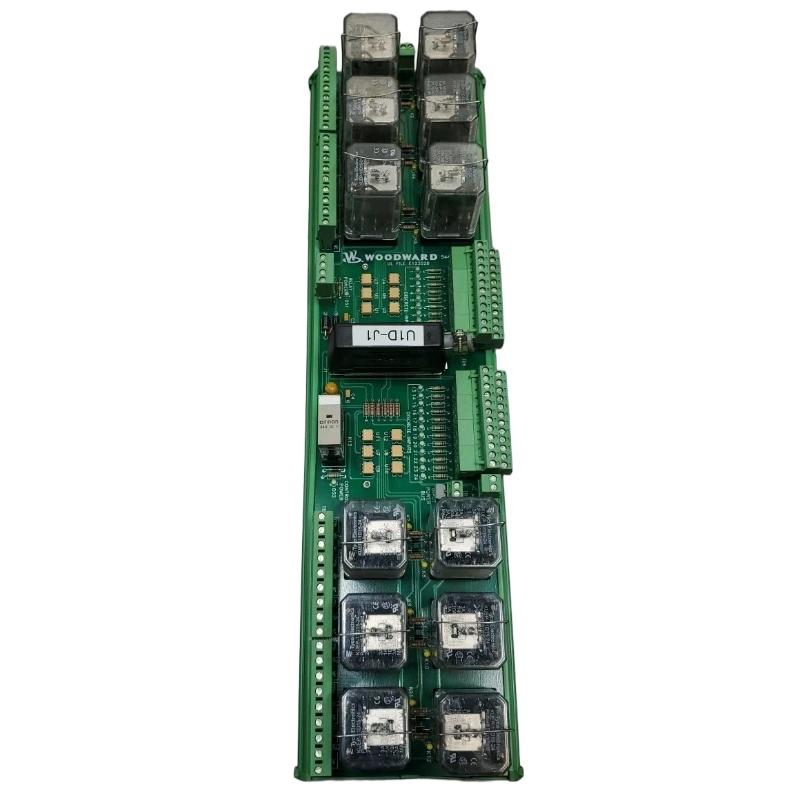

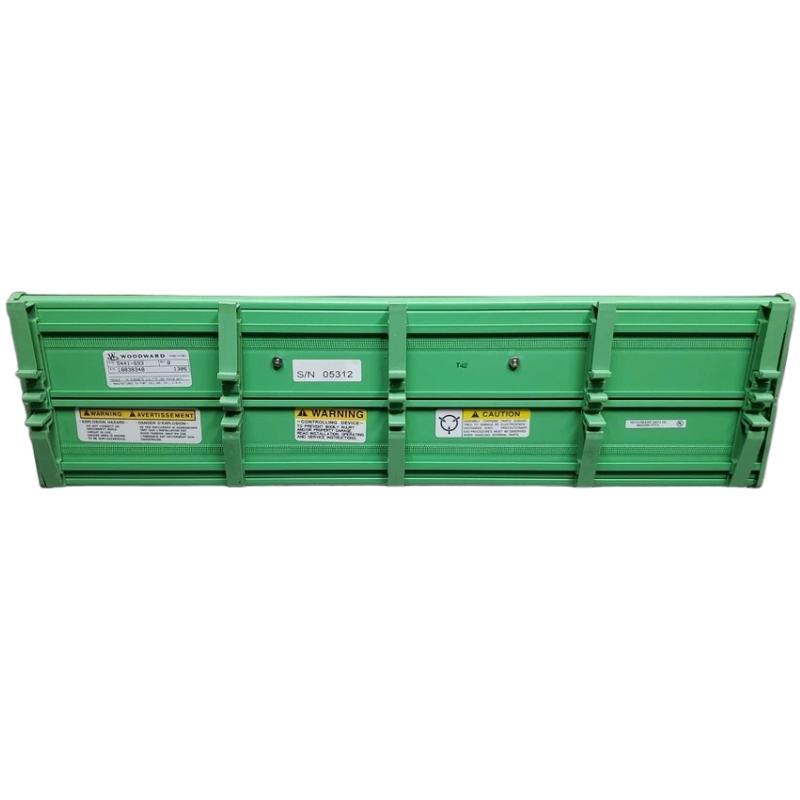

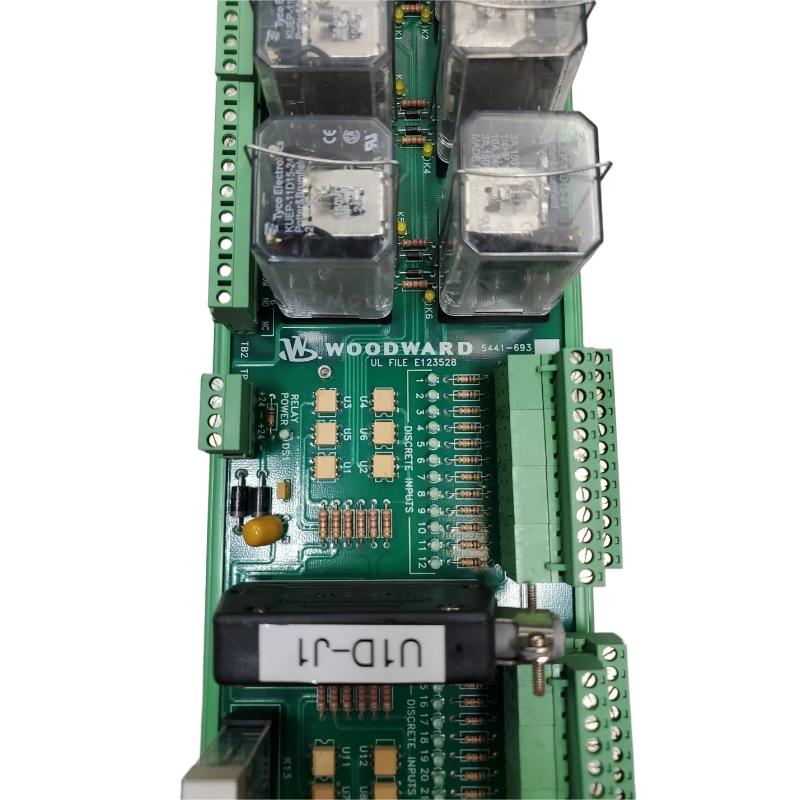

Woodward 5441-693 Discrete I/O Modules

Overview

The Woodward 5441-693 is a discrete I/O module designed to provide reliable digital signal processing within Woodward industrial control systems. It enables connection between control units and external devices such as switches, sensors, relays, and actuators for efficient automation control.

This module is suitable for engine management, power generation, and industrial automation applications requiring dependable digital input and output control.

General Information

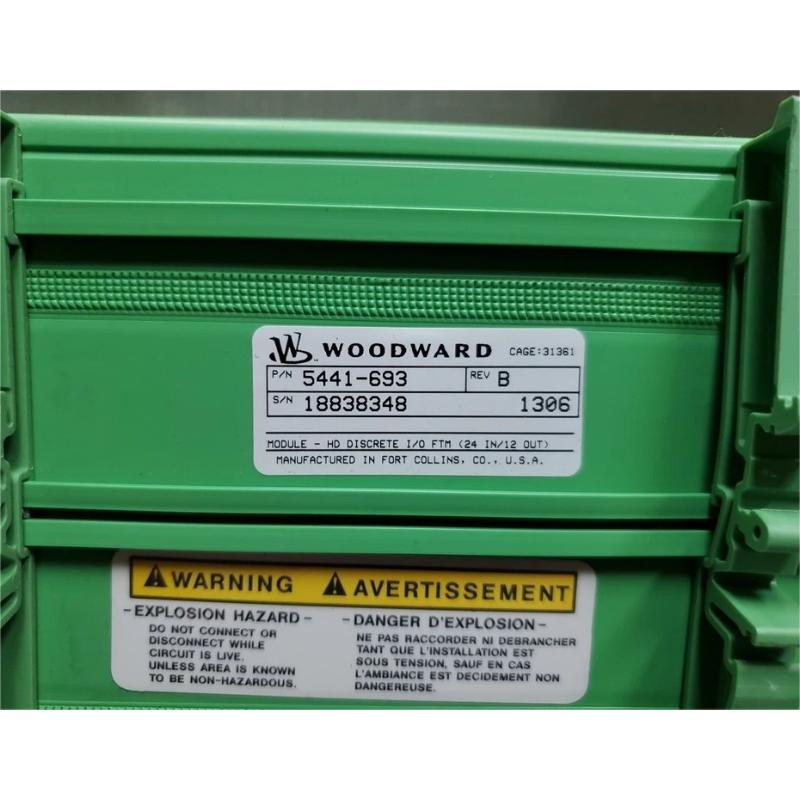

Part Number: 5441-693

Manufacturer: Woodward

Brand: Woodward

Country of Origin: United States

Series: Woodward Control Systems

Type: Discrete I/O Module

Application: Digital signal monitoring and control applications

Installation: Mounted within compatible control cabinets or modular chassis systems

Function: Provides discrete input and output signal processing for industrial control systems

Compatibility: Woodward control systems and related automation equipment

Technology: Modular digital I/O design for reliable signal acquisition and control

Power Specifications

Supply Voltage: System-rated DC power supply

Power Source: Supplied through compatible Woodward control system connections

Power Consumption: Low-power operation for industrial I/O applications

Input Type: Digital input signal processing

Output Type: Digital output control for external devices

Protection: Designed with electrical protection features for reliable field operation

Indicators: Status indicators for module power and I/O activity monitoring

Communication & Interface

I/O Type: Discrete digital input and output interface

Signal Type: On/off control signals

I/O Channels: Supports multiple digital input and output points

Connection Method: Terminal block connection

Control Function: Provides signal monitoring from field devices and control output to external equipment

System Integration: Supports connection within Woodward modular control architectures

Diagnostics: Provides I/O status monitoring and fault identification through system software

Environmental

Operating Temperature: Suitable for industrial control environments

Storage Temperature: −40 to +85 °C

Relative Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control cabinets, automation panels, and equipment enclosures

Protection Rating: Designed for installation inside protected industrial environments

Resistance: Suitable for vibration, electrical noise, and continuous industrial operation

Dimensions & Weight

Dimensions (L × W × H): 150 × 100 × 30 mm

Weight: 0.5 kg
