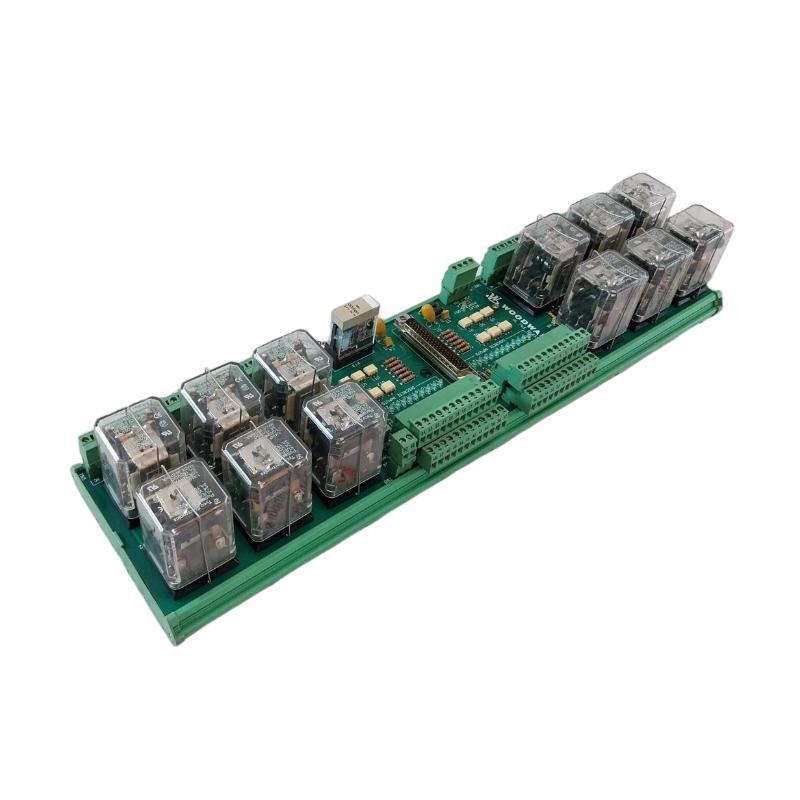

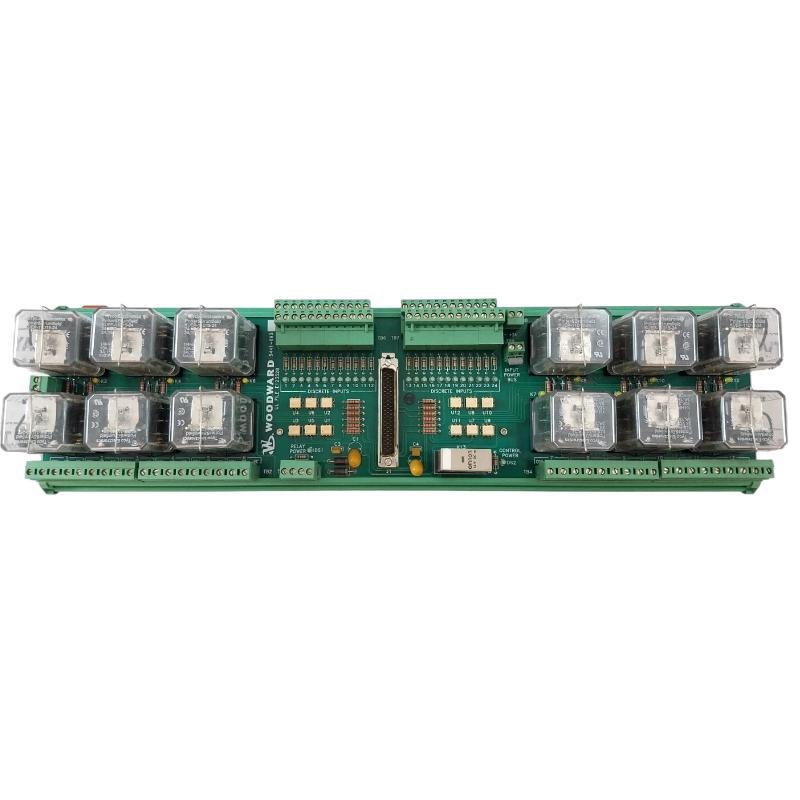

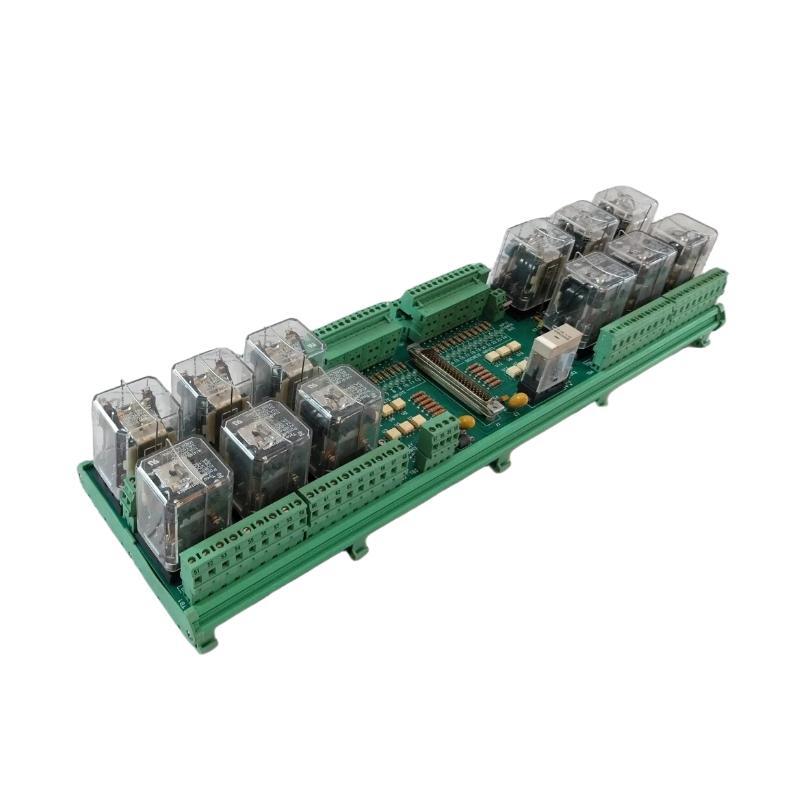

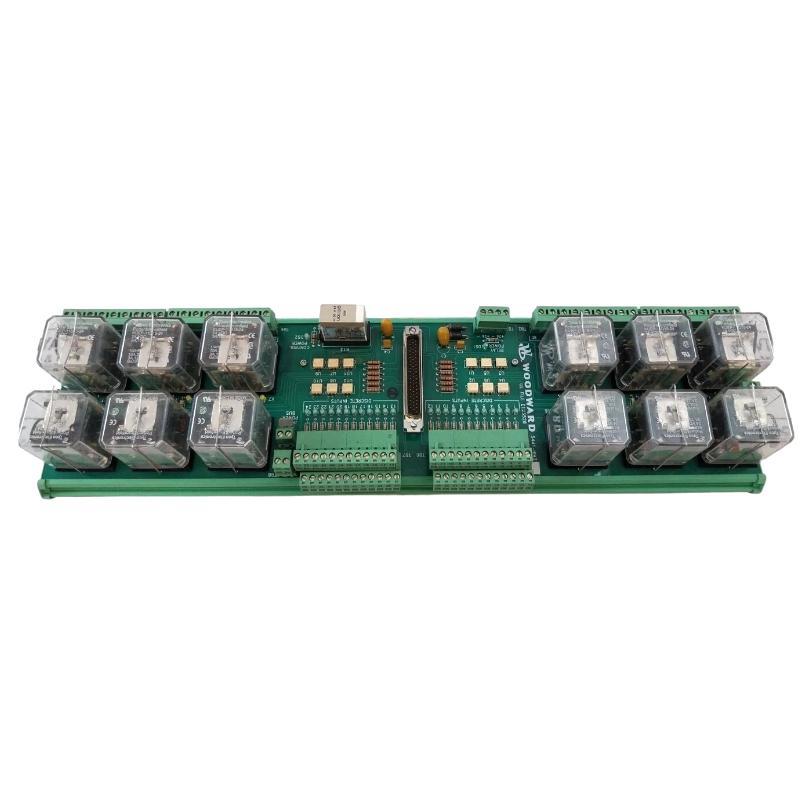

Woodward 5441-691 Relay Field Terminal Module

Overview

The Woodward 5441-691 is a relay field terminal module designed to provide reliable field wiring connections and signal interface support within Woodward industrial control systems. It simplifies the connection between control modules and external devices while improving system organization and maintenance efficiency.

This module is suitable for engine control, power management, and industrial automation applications requiring secure field connections and dependable relay signal handling.

General Information

Part Number: 5441-691

Manufacturer: Woodward

Brand: Woodward

Country of Origin: United States

Series: Woodward Control Systems

Type: Relay Field Terminal Module

Application: Field wiring connection and relay signal interface

Installation: Mounted within compatible control cabinets or terminal assemblies

Function: Provides organized field connection points for relay control signals

Compatibility: Woodward control systems and related industrial automation equipment

Technology: Industrial terminal interface design for reliable field signal connection

Power Specifications

Supply Voltage: System-rated DC power supply

Power Source: Supplied through connected control system components

Power Consumption: Passive interface module with no independent power consumption

Electrical Function: Provides terminal connection and signal routing support

Protection: Designed to maintain stable electrical connections in industrial environments

Indicators: Supports system status monitoring through connected control equipment

Communication & Interface

Interface Type: Relay field terminal interface

Signal Type: Digital relay control signals

Connection Method: Terminal block connection

Field Connection: Provides wiring interface between field devices and control modules

Control Function: Supports relay signal distribution and external device connection

System Integration: Used within Woodward modular control system architectures

Diagnostics: Supports troubleshooting through organized field wiring connections

Environmental

Operating Temperature: Suitable for industrial control environments

Storage Temperature: −40 to +85 °C

Relative Humidity: 5 to 95% RH, non-condensing

Installation Environment: Industrial control cabinets, automation panels, and equipment enclosures

Protection Rating: Designed for installation inside protected industrial environments

Resistance: Suitable for vibration, electrical noise, and continuous industrial operation

Dimensions & Weight

Dimensions (L × W × H): 120 × 20 × 70 mm

Weight: 0.45 kg
