Overview

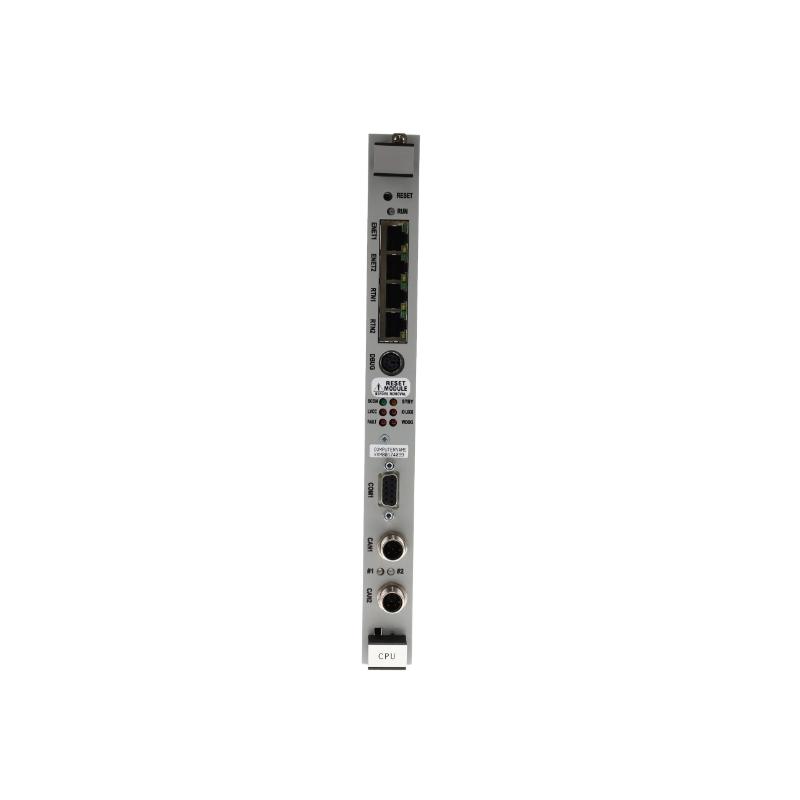

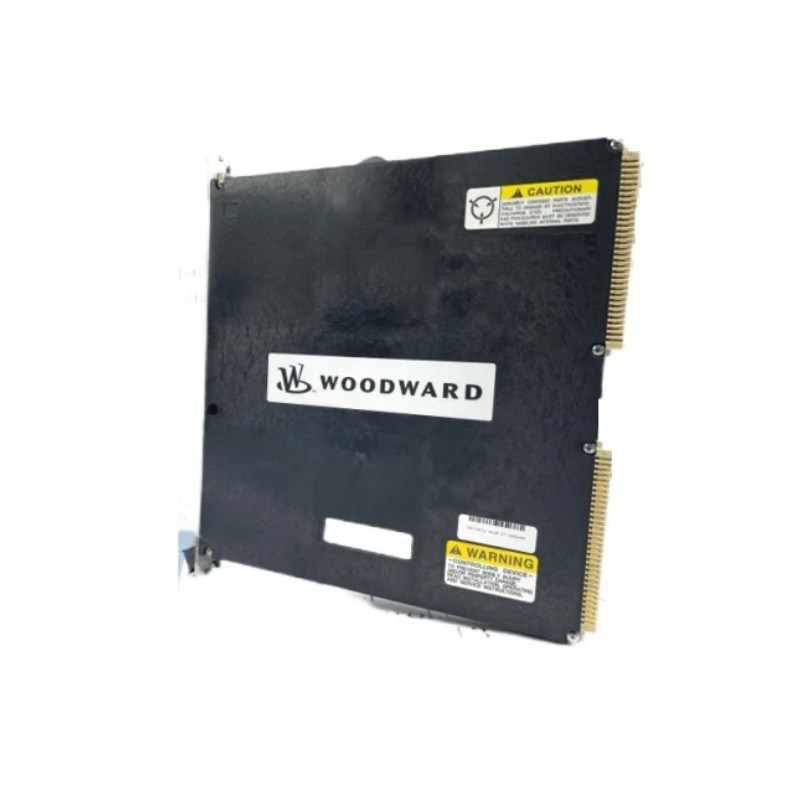

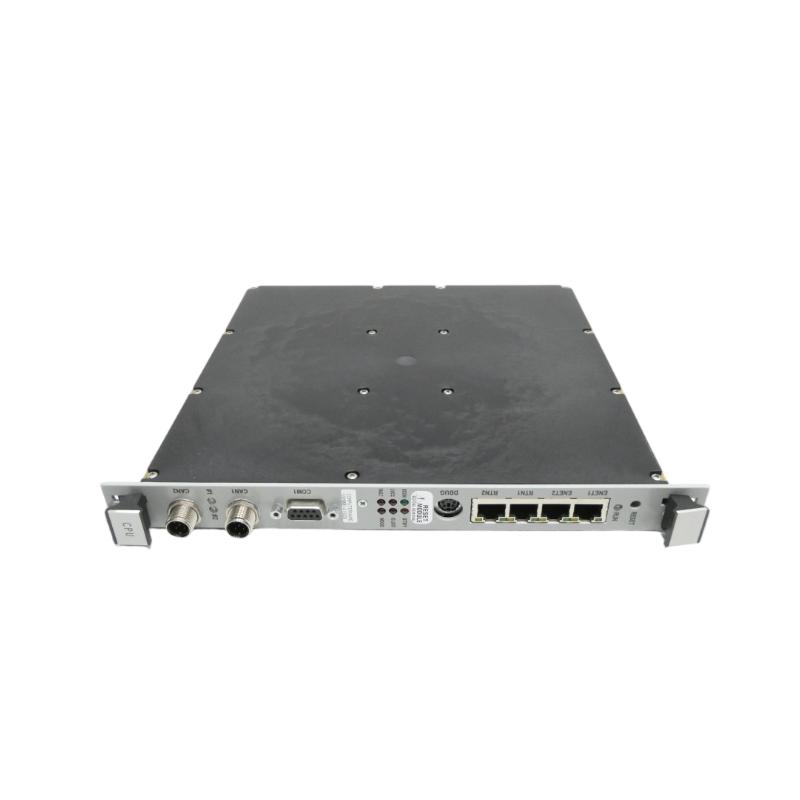

The Woodward 5466-1035 is a central processor module used in turbine and engine control platforms. It manages core logic execution, communications, diagnostics, and coordination of all I/O modules within a Woodward control rack.
General Information
Part Number: 5466-1035
Manufacturer: Woodward
Series: 5466 Series
Type: CPU / Control Processor Module
Mounting: Rack-mounted installation
Technology: High-reliability digital processor with onboard system monitoring
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 20 W
Input Source: Backplane-powered
Protection: Overvoltage, reverse polarity, thermal protection
Indicators: LED status indicators for power, CPU state, and communication activity
Communication & Interface
Interface Type: System backplane bus
Function: Logic processing, control coordination, communication routing
Diagnostics: Internal self-test, watchdog functions, continuous monitoring
Operator Interface: Status LEDs; configuration performed through system software
I/O & Channels
Relay Channels: None
External Load Support: None
Function: Central control logic and system management
Environmental
Operating Temperature: −40 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for standard industrial control cabinet environments
Dimensions & Weight
Dimensions (L × W × H): approx. 229 × 178 × 45 mm
Weight: approx. 1.0 kg
