Overview

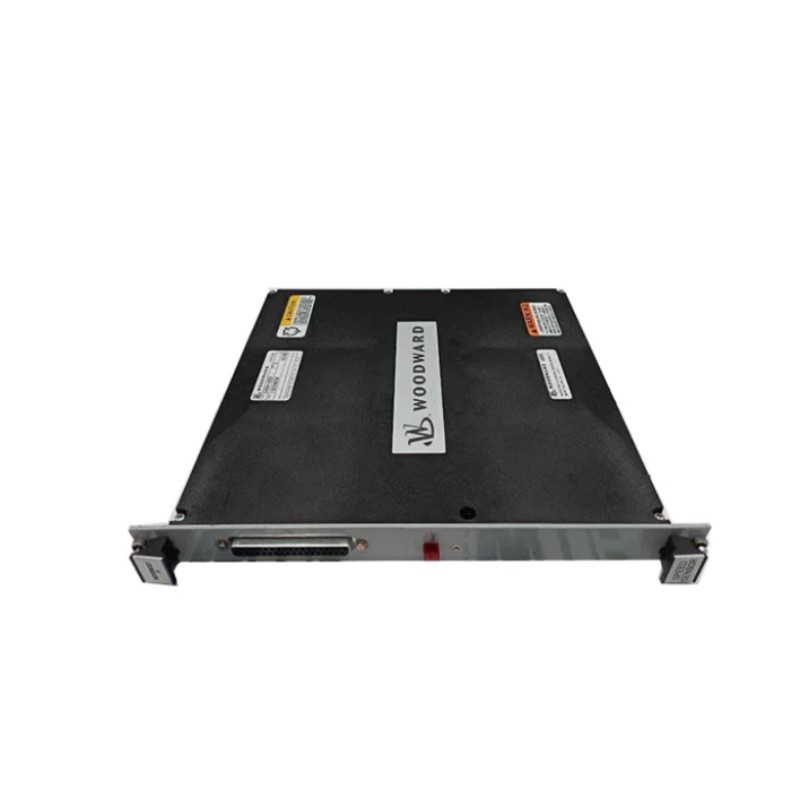

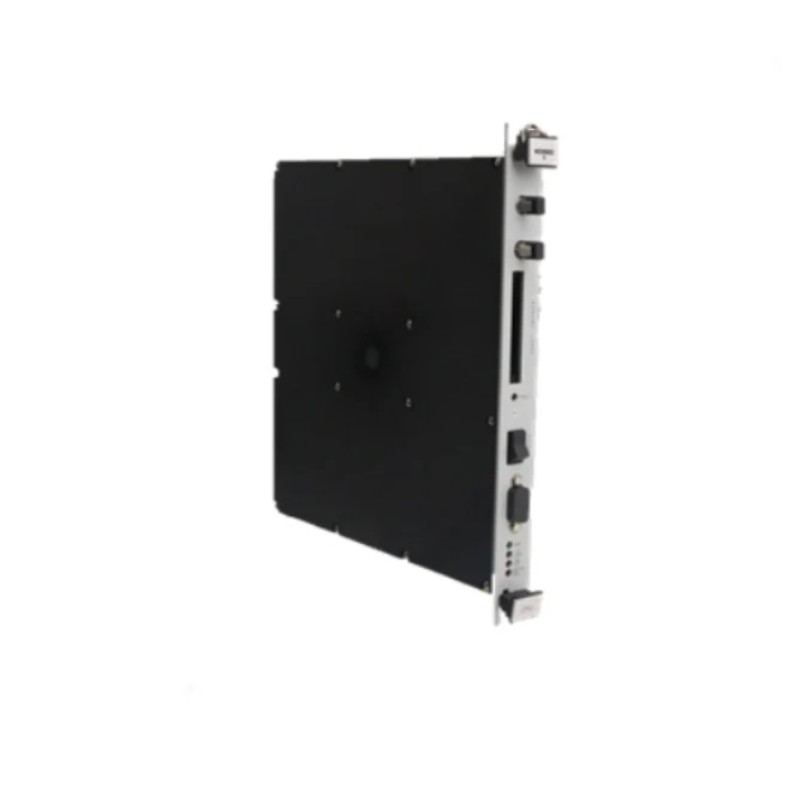

The Woodward 5466-1000 is a high-reliability CPU module designed for use in Woodward turbine and engine control systems. It provides core logic processing, system coordination, and communication management within the controller rack.
General Information
Part Number: 5466-1000
Manufacturer: Woodward
Series: 5466 Series
Type: CPU / Control Processor Module
Mounting: Rack-mounted installation
Technology: Digital processor with onboard diagnostics and system supervision
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 20 W
Input Source: Powered through the system backplane
Protection: Overvoltage, reverse polarity, and thermal protection
Indicators: LEDs for CPU status, faults, and communication activity
Communication & Interface
Interface Type: Backplane system bus
Communication Roles: Logic execution, network management, task coordination
Diagnostics: Continuous self-test, watchdog monitoring
Operator Interface: Status LEDs, configuration via system software
I/O & Channels
Relay Channels: None
External Load Support: None
Function: Central processing and system-level control logic
Environmental
Operating Temperature: −40 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial cabinet
Dimensions & Weight
Dimensions (L × W × H): approx. 229 × 178 × 45 mm
Weight: approx. 1.0 kg
