Overview

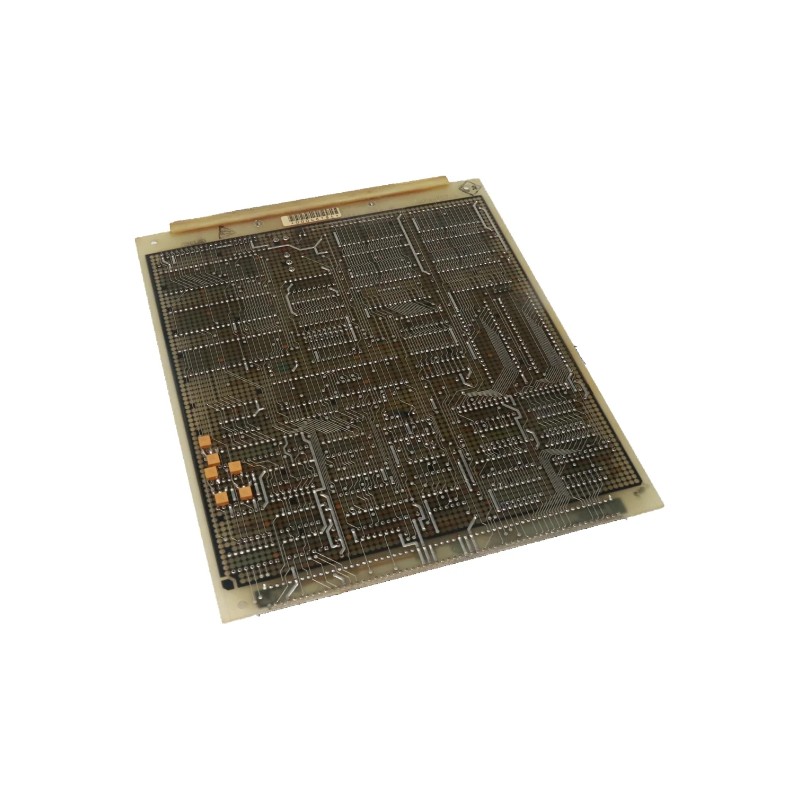

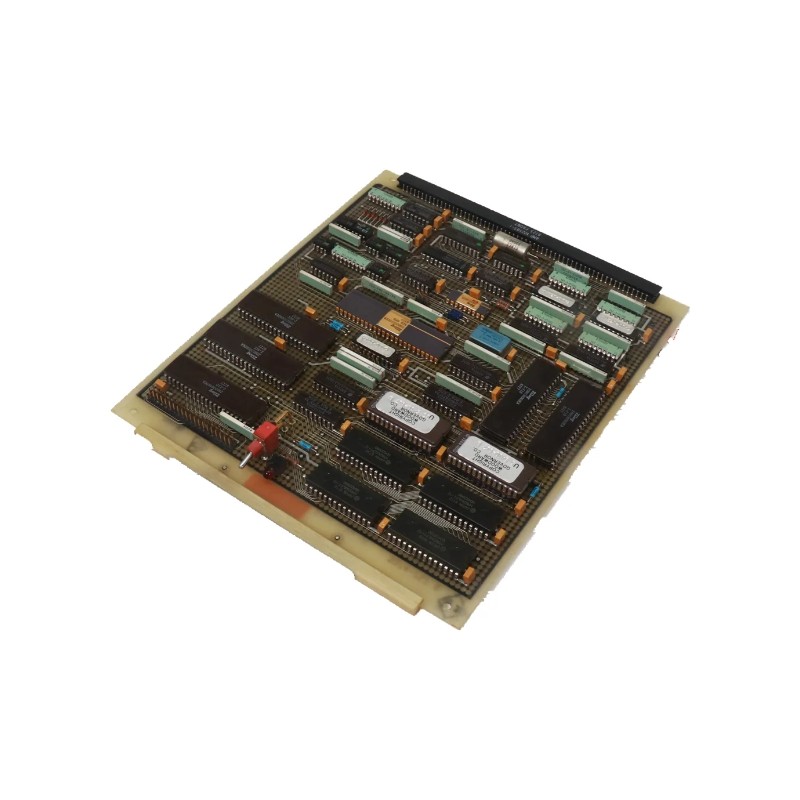

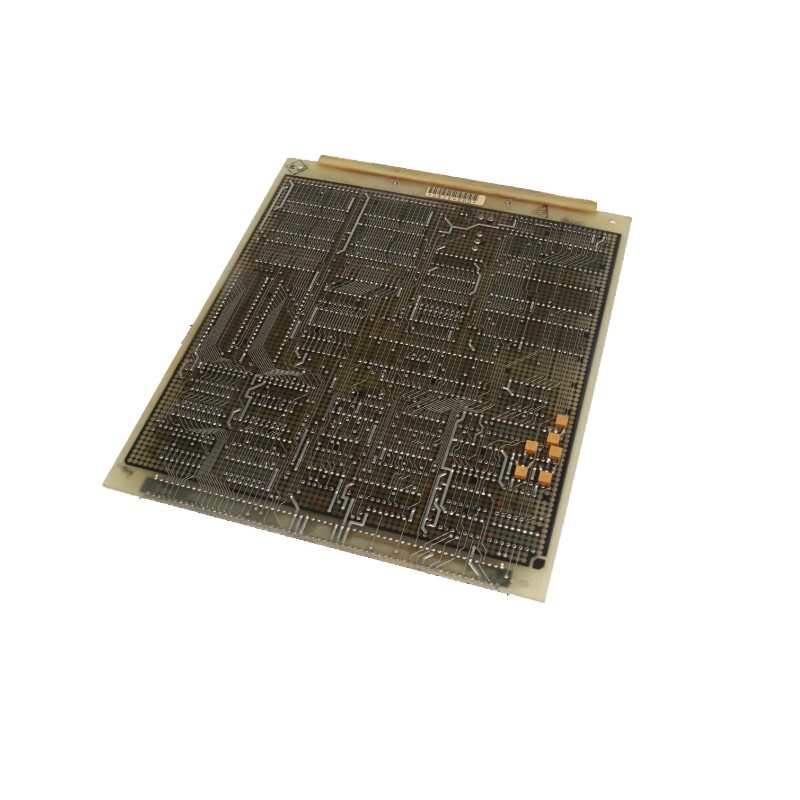

The Woodward 5462-408 is a control system module used in turbine and engine management platforms. It supports stable processing, system monitoring, and reliable communication within Woodward control racks.
General Information
Part Number: 5462-408
Manufacturer: Woodward
Series: 5462 Series
Type: Control / Interface Module
Mounting: Rack-mounted installation
Technology: Digital logic processing with built-in diagnostics
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 15 W
Input Source: Backplane power feed
Protection: Overvoltage and short-circuit protection
Indicators: LED status indicators
Communication & Interface
Interface Type: System communication bus via backplane
Diagnostics: Continuous module self-checking
Operator Interface: LED status and fault indicators
Configuration: System software or hardware switch settings
I/O & Channels
Relay Channels: None
External Load Support: None
Functional Role: Internal control, logic processing, and system coordination
Environmental
Operating Temperature: −40 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial control enclosure
Dimensions & Weight
Dimensions (L × W × H): approx. 229 × 178 × 45 mm
Weight: approx. 1.0 kg
