Overview

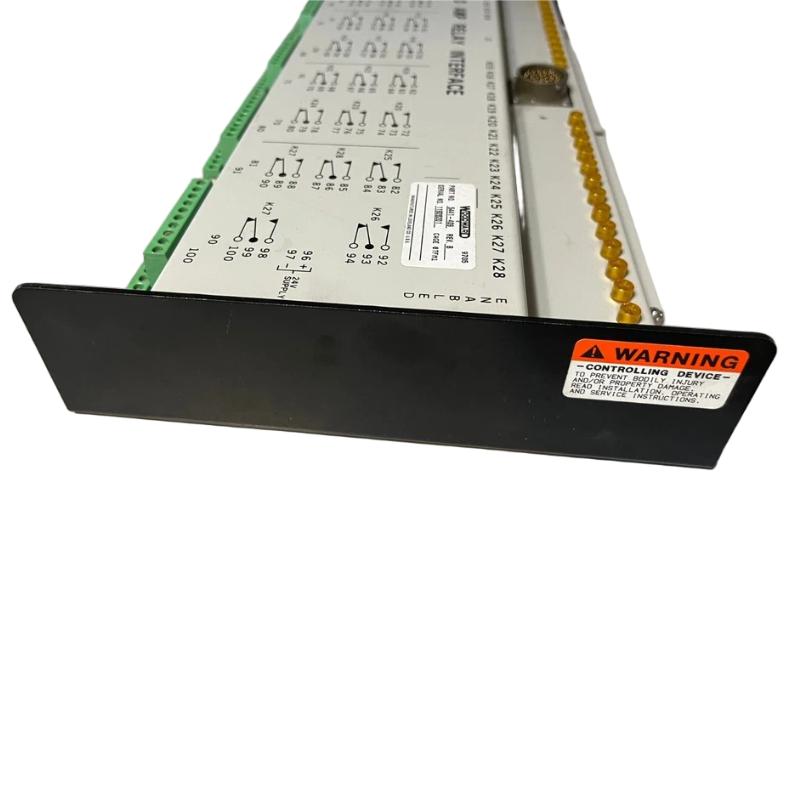

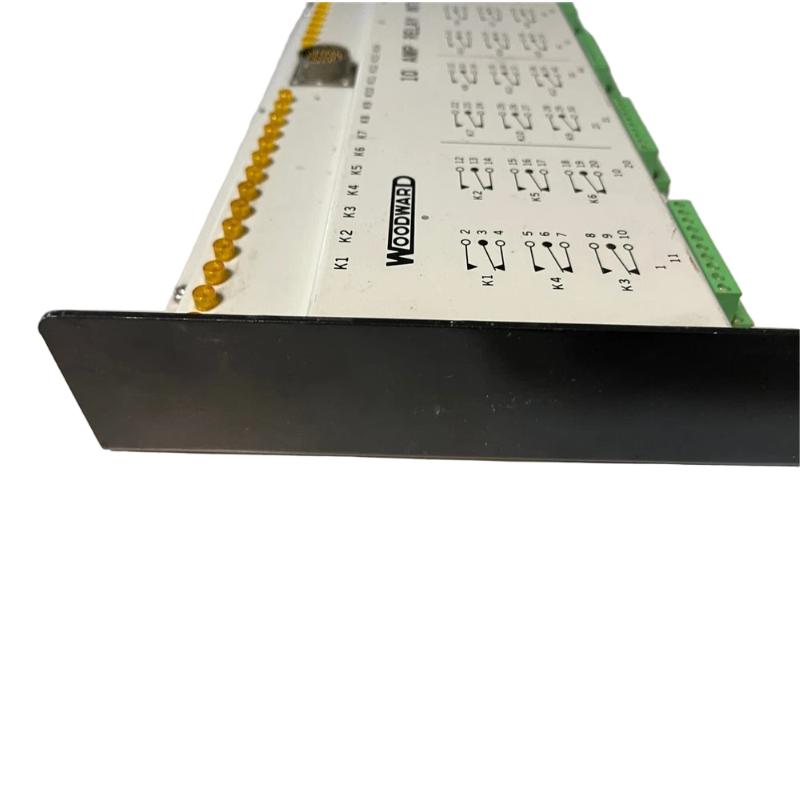

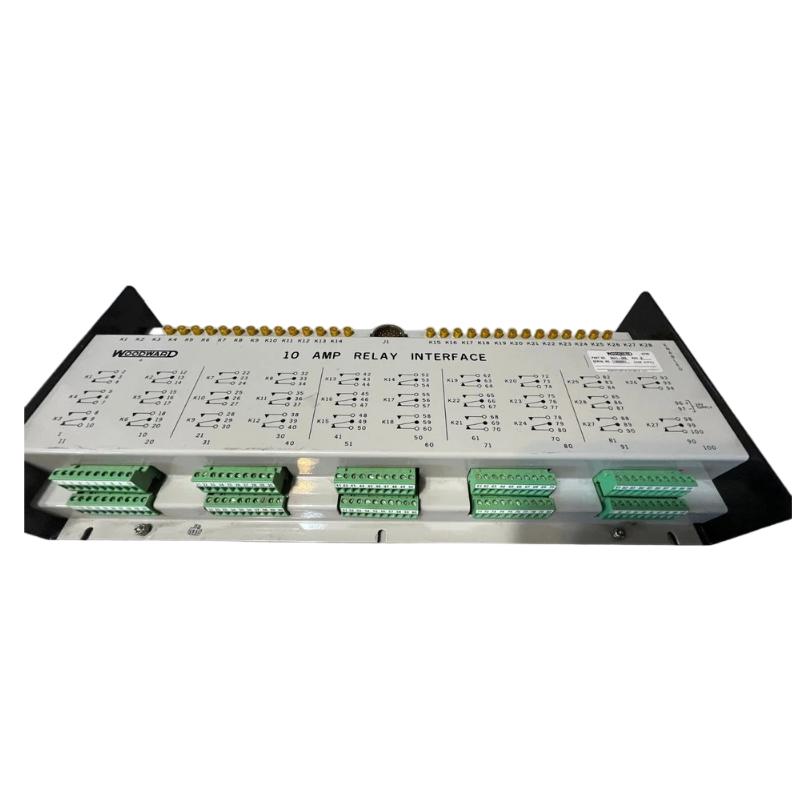

The Woodward 5441-409 is a control module used in turbine and engine control systems, providing processing, monitoring, and regulation functions within Woodward’s governor platforms. It ensures stable operation of industrial prime movers.
General Information
Part Number: 5441-409
Manufacturer: Woodward
Series: 5441 Series
Type: Control / Processing Module
Mounting: Rack installation within Woodward control chassis
Technology: Digital control processing, signal conditioning, internal diagnostics
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 15 W
Input Source: Backplane-powered
Protection: Overvoltage, short-circuit, thermal protection
Indicators: Status and fault LEDs
Communication & Interface
Control Interface: Feedback signals, actuator outputs (application dependent)
Diagnostic Features: Self-check, status reporting
Operator Interface: LED indicators
Configuration: DIP switches or software-configured (model-dependent)
I/O & Channels
Relay Channels: None
External Load Support: None
Functional I/O: Process signals for turbine/engine control
Environmental
Operating Temperature: −40 to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial cabinet installation
Dimensions & Weight
Dimensions (L × W × H): approx. 229 × 178 × 45 mm
Weight: approx. 1.0 kg
