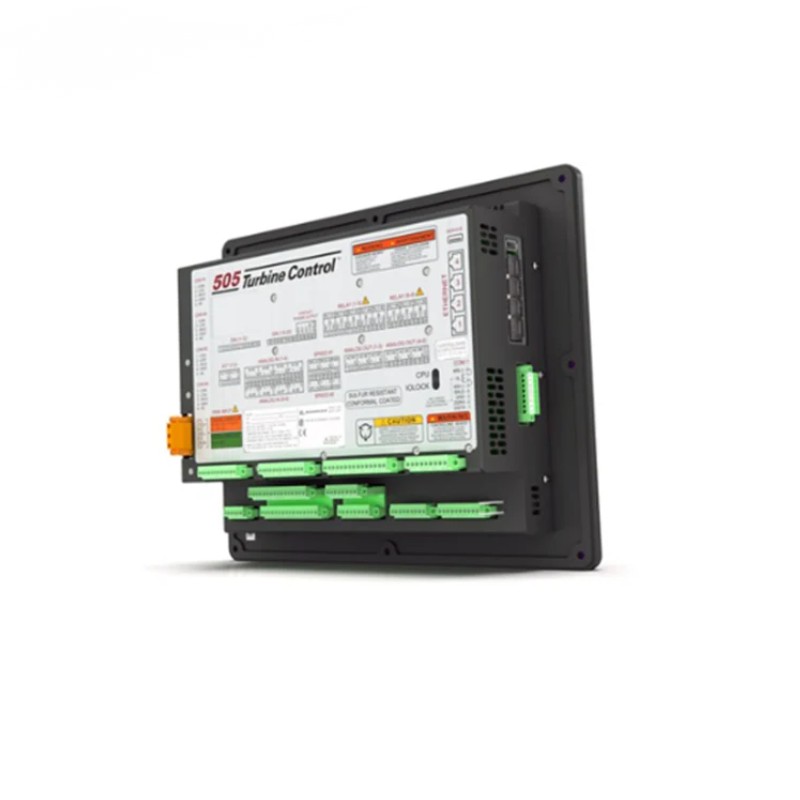

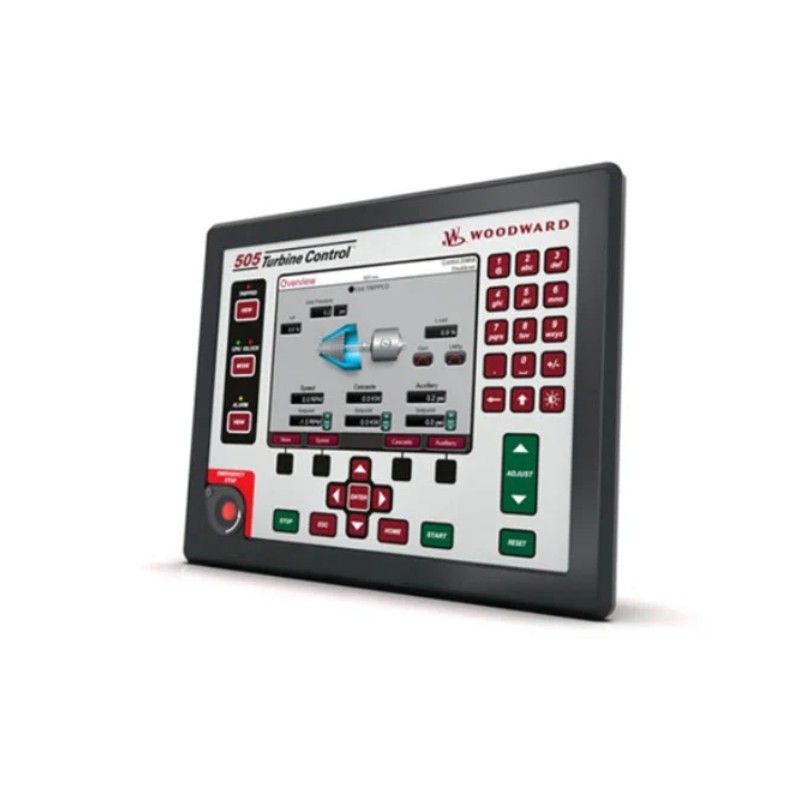

Woodward 8200-1311 | Digital Governor / Control Module Original

Overview

The Woodward 8200-1311 is a digital governor and turbine/engine control module designed for precise speed, load, and protection control. It integrates advanced algorithms, a front-panel HMI, and industrial communication functions for steam turbines, gas turbines, and mechanical drive engines.

General Information

Part Number: 8200-1311

Manufacturer: Woodward

Series: 8200 / 505XT

Type: Digital Governor / Engine & Turbine Control Module

Mounting: Panel or rack installation within a control cabinet

Power Specifications

Supply Voltage: 88–264 V AC or 90–150 V DC

Power Consumption: Standard governor-level consumption based on configuration

Input Source: Internal regulated power from the unit’s power stage

Protection: Industrial-grade surge, overload, and thermal protection

Communication & Interface

Communication Ports: Supports industrial protocols such as Modbus, CAN-based links, or Woodward control bus

HMI: Integrated graphical display for configuration, trending, diagnostics, and operator access

Diagnostics: Real-time monitoring, alarm logging, fault reporting

I/O & Channels

I/O Type: Combination of analog inputs, digital inputs, digital outputs, and relay outputs depending on turbine/engine application

External Load Support: Suitable for actuator drive signals, valve control, trip relays, and sensor interfaces

Environmental

Operating Temperature: –40 to +70 °C

Humidity: Up to 95% RH, non-condensing

Installation Environment: Industrial control enclosure (approx. IP20 when mounted)

Dimensions & Weight

Dimensions (H × W × D): 110 × 160 × 80 mm

Weight: ~ 0.7 kg

Brand-new products directly supplied, stock sufficient, professional support online, quick pricing available.
